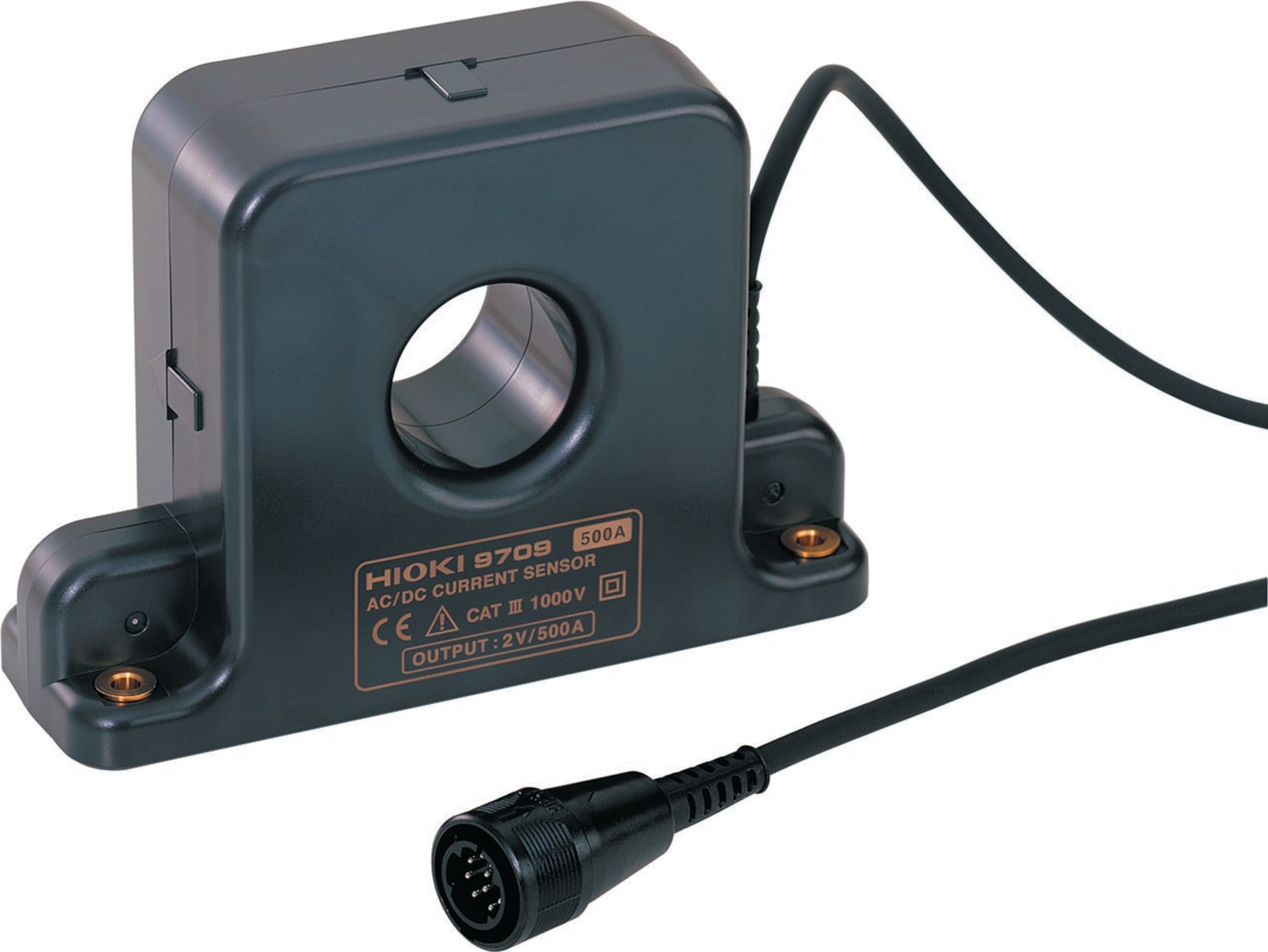

Hioki 9709 - AC/DC Current Sensor (DC - 100kHz 500amps)

High-precision sensors to view waveforms or to use with power meters (for AC/DC). Wide-bandwidth and high-precision AC/DC current sensors achieve high accuracy measurement of both small- and large-current signals. They can be used for a wide variety of applications in the fields of electric and hybrid electric vehicles, inverters and other devices, alternative energy sources such as solar power and fuel cells, as well as home electronic appliances and system equipment.

HIOKI’s Current Sensors Support More Accurate Current and Power Measurements

New Age for Current Measurement with High Precision, Wide Bandwidth, and Excellent Temperature Characteristics

• Achieve a maximum accuracy of ±0.16%, which is equivalent to power meters using a direct cable connection (when used with the POWER ANALYZER 3390).
• The cable connecting the power source and load can be made thicker and shorter to allow measurement to be performed in nearly the same cable condition as the real operation of a device under test.
• Insert loss is far smaller than with a shunt resistor so the operation of a device under test is not affected.
• A wide range of measurements are possible, including battery charge and discharge measurement and inverter secondary circuit measurement .
• A wide operating temperature range allows the sensor to be used in the same environment conditions as a device under test.
• Installing a power line is simple, secure, and safe .
• Excellent characteristics reduce the effect of the conductor position, external magnetic field, and magnetization
• CAT III 1000V Safe
• Convenient voltage output design
