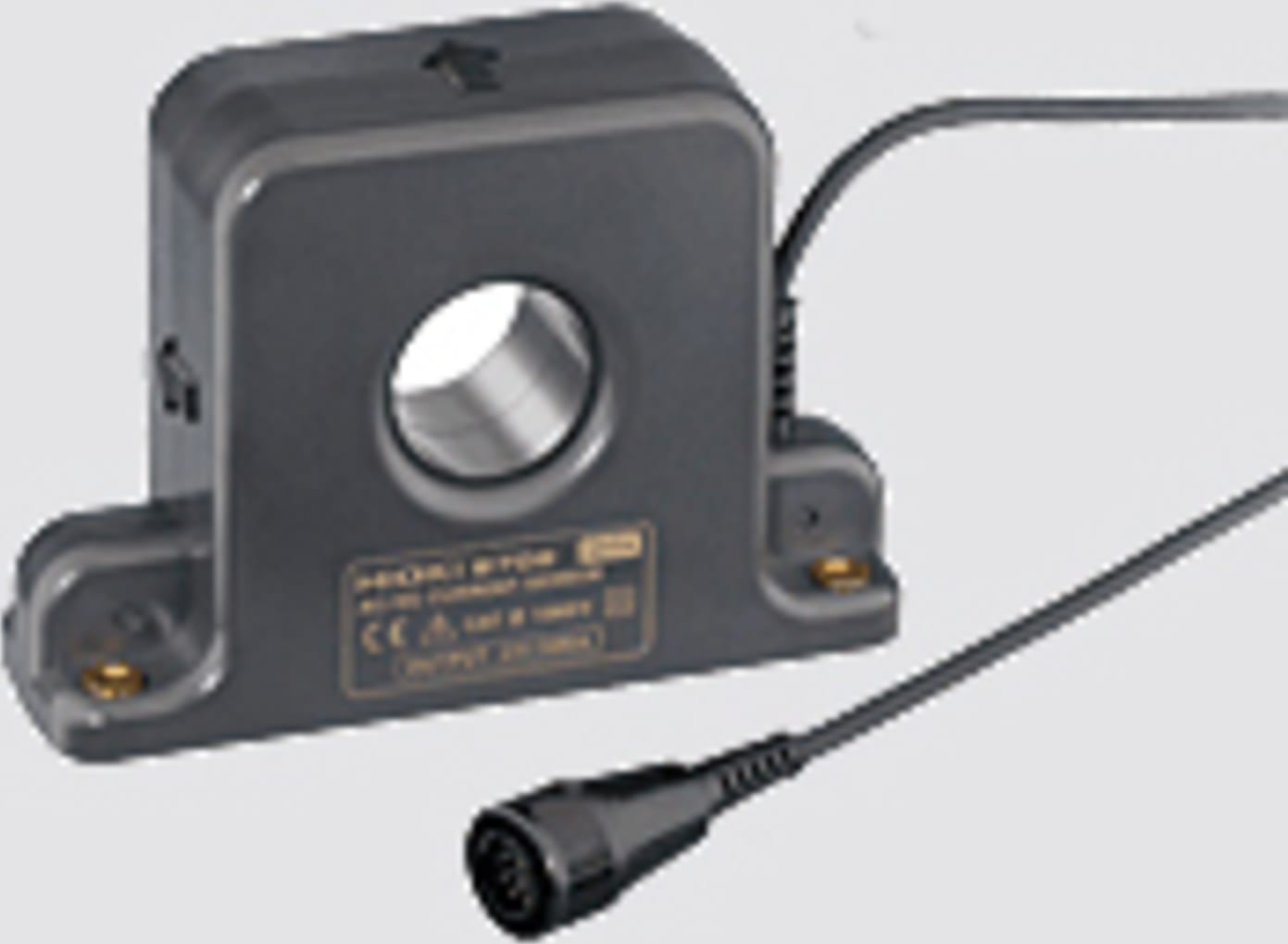

| Rated primary current |
500 A AC/DC |
| Output voltage |
2 V/500A |
| Maximum input current |
700 Arms (1000 A peak, 50/60 Hz, continuity) |
| Output resistance |
50 Ω (±10%) |
| Temperature and humidity range of guaranteed accuracy |
23±5°C (73±9°F), 80%RH or less |
| Period of guaranteed accuracy |
6 months |
| Warming-up time |
after auto-balancing, after 10 minutes |
| Amplitude accuracy (after warming-up, within a derating, DC |
DC ±0.2%rdg.±0.02%f.s.
DC, 45 Hz≤f≤66 Hz: ±0.05%rdg.±0.01%f.s.
66 Hz ±0.2%rdg.±0.02%f.s.
500 Hz ±0.5%rdg.±0.05%f.s.
5 kHz ±2.0%rdg.±0.10%f.s.
10 kHz ±5.0%rdg.±0.10%f.s.
20 kHz ±30%rdg.±0.10%f.s. |
| Phase accuracy (after warming-up, within a derating, DC |
DC: Not specified
DC ±0.3deg
45 Hz≤f≤66 Hz: ±0.2deg
66 Hz ±0.5deg
5 kHz ±2.0deg
10 kHz ±5.0deg
20 kHz ±30deg |
| Temperature coefficient |
Amplitude sensitivity: ±0.01%rdg./°C or less
Offset voltage: ±0.005%f.s./°C or less |
| Effect of conductor position |
±0.05% or less (at 100 ADC input, using with the wire 10 mm diameter) |
| Effect of external electromagnetic field |
50 mA or less (In a 60 Hz or DC magnetic field of 400 A/m) |
| Effect of magnetic |
20 mA or less (after 500 ADC input) |
| Effect of radioactive radio-frequency electromagnetic field |
Current ±2%f.s. at 3 V/m |
| Maximum rated voltage to earth |
1000 VAC/ DC (50/60 Hz) (Measurement category III) |
| Measurable conductor diameter |
Φ36 mm (1.42”) or less |
| Supply voltage |
±11 to ±15 V (Tracking) |
| Power supply capacity (±12 V) |
±300 mA (500 A/55Hz measurement, with ±12 power supply) |
| Power consumption |
5 VA or less (500 A/55Hz measurement, with ±12 power supply ) |
| Dimensions and Mass |
Applox. 160W × 112H × 50D mm, Applox. 1,120 g |
| Cable length |
Applox. 10 m |
| Accessories |
Instruction manual 1
Mark band 6 (3sets) |
| Operating Environment |
Indoors, altitude up to 2000 m (6562-ft.) |
| Operating temperature and humidity |
0 to 50°C, 80%RH or less (non-condensation) |
| Storage temperature and humidity |
-10 to 60°C, 80%RH or less (non-condensation) |
| Dielectric strength |
6.88 kVAC (Sensitive current 1 mA), for 15 seconds, at 50 / 60 Hz (Through window-cable output connector) |
| Applicable standards |
Safety: EN61010, Pollution degree 2, Measurement category III
(CAT III) (anticipated transient overvoltage 8000 V)
EMC: EN61326 |
