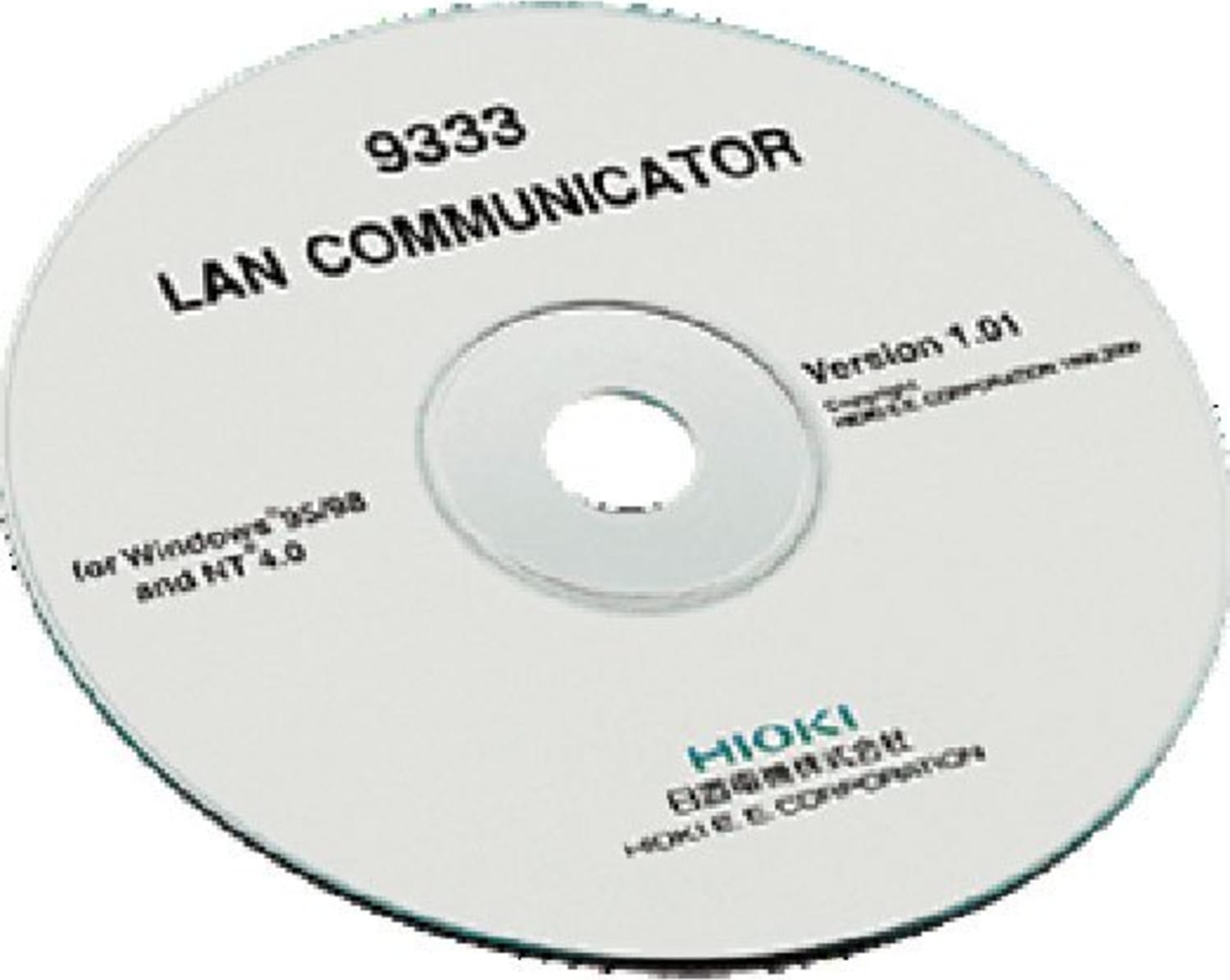

Hioki 9333 LAN Communicator Software

Name: Hioki 9333 LAN Communicator Software
Brand: Hioki
SKU: Hioki9333
Price: 307.00 USD
Availability: InStock

0 reviews | Model: Hioki 9333

Compare

LAN Communicator Software

LAN Communicator Software

View Product Details

Your Price: $307.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Hioki 9333 LAN Communicator Software
Price
In Stock
Compare	Add to compare

Recommended for you

LAN Communicator Software

Remote Control via LAN MEMORY HiCORDERs and PC Communications

The HIOKI 9333 LAN COMMUNICATOR is a PC program that allows measurement data to be quickly transferred through remote control commands issued over a LAN between MEMORY HiCORDERs and PCs. The screen of the MEMORY HiCORDER can be displayed in near real time on the PC, for convenient monitoring during measurement. Remote measurement and monitoring has never been easier! Using the MEMORY HiCORDER as the data collection tool, waveform data can also be transferred to the PC via the highspeed LAN connection.

Advantages and Disadvantages

Using the MEMORY HiCORDER with a LAN connection, compared with the earlier GP-IB and RS-232C connections.
ADVANTAGES	DISADVANTAGES
Faster transfer speed (even faster than the writing speed of the MO drive in the HiCORDER) Longer cable lengths possible (up to 100m with 10Base- T cable) Existing corporate LAN infrastructure can be used PC program (9333 LAN COMMUNICATOR) is available Less susceptible to errors than RS-232C: data disrupted by noise is automatically resent PC expenses can be lower than for GP-IB	Transfer time depends on network traffic when the network is shared by other devices. In addition, HiCORDER data transfers affect other network traffic In some cases, depending on network management, existing LANs may not be usable for the HiCORDER PC networking settings are more complex than for RS-232C, and more settings are required because the OS is affected. (However, once set, there is no need to reset later)

Provided media	one CD-R
Supported units	8855, 8826 (version 2.30 or later), 8835-01 (version 1.10 or later), 8841, 8842 (version 2.30 or later), 8720 (version 2.00 or later), 8714, 8715
Operating environment	Windows 95/98/Me/NT 4.0/2000/XP (network functions installed, TCP/IP environment). Pentium processor (133 MHz) or higher, memory of 64 MB or more
Base unit operating environment	standard LAN connector or 10BASE-T LAN CARD 9578
Communication system	Ethernet, TCP/IP
Functions	Display functions: Remote control applications: Remote control of MEMORY HiCORDER (by sending key codes and receiving images on screen), print reports, print images from the screen, receive waveform data in same format as waveform files from the HiCORDER (binary only), Waveform data acquisition applications: Accept auto-saves from the MEMORY HiCORDER, same format as auto-save files of MEMORY HiCORDER (binary only), print automatically with a MEMORY HiCORDER from a PC. The MEMORY HiCORDER's print key launches printouts on the PC Waveform viewer: Simple display of waveform files, convert to CSV format

Tech Specs

Test Equipment General Attributes
Unique Features	LAN Communicator Software used on older recorders
Product Height	1.30 IN
Product Length	12.00 IN
Product Width	8.75 IN
Country of Origin	Japan
Shipping Height	1.30 IN
Shipping Length	12.00 IN
Shipping Width	8.75 IN
