| Measurement Ranges: | 100 V/200 V/400 V AC line 3 ranges, or 600 V AC range with the 9322 (DIFFERENTIAL PROBE/ option)

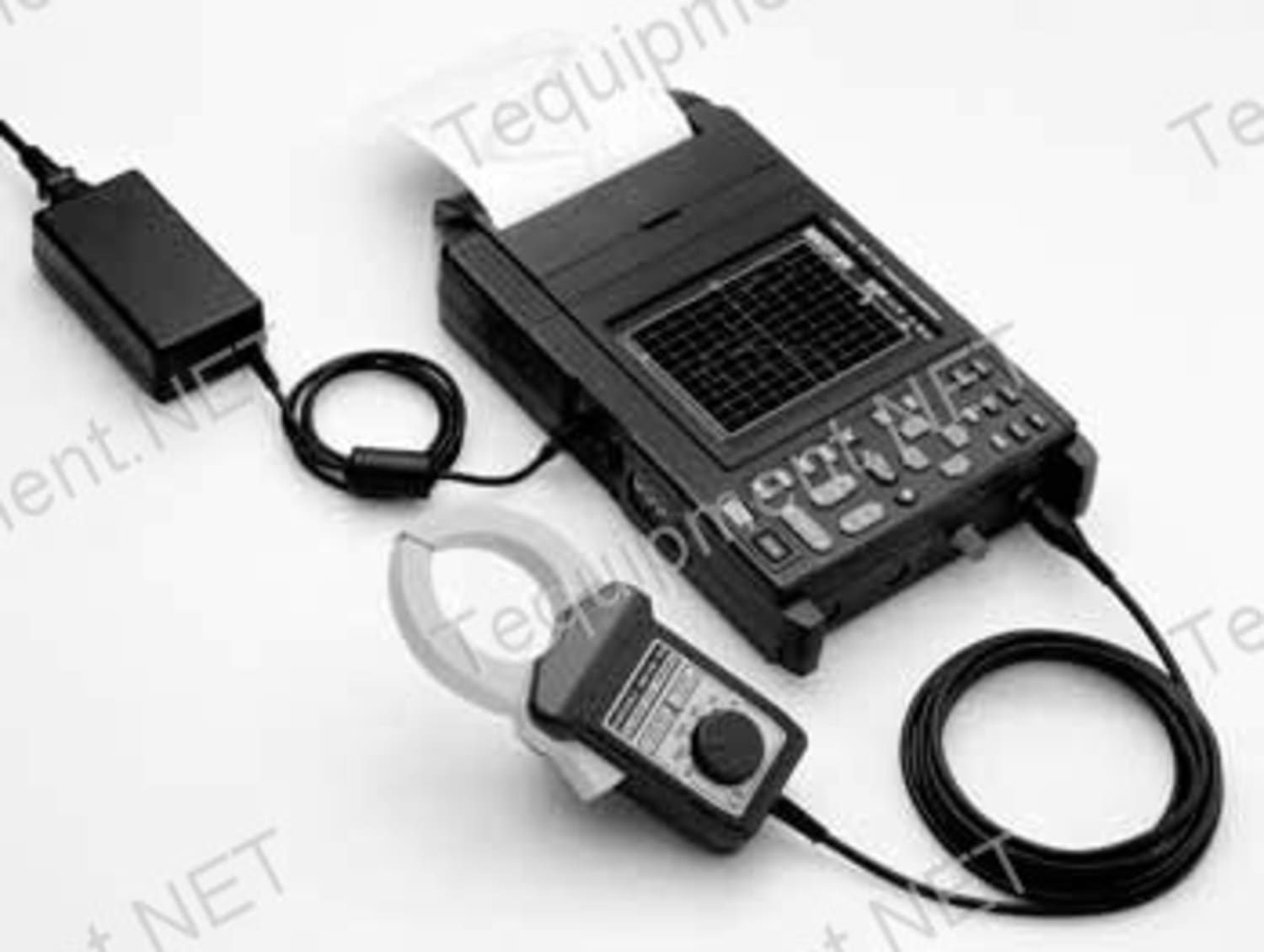

AC current range with clamp-on probe (option)
10 to 500 A AC (with the 9010-10/9018-10), 20 to 1000 A AC (with the 9132-10)
10 mA to 200 A AC (with the 3283), 20 to 200 A AC (with the 3284), 200 to 2000 A AC (with the 3285) |
| Frequency Characteristics: | DC to 50 kHz ?3 dB |
| Time Axis: | 200 ?s to 20 ms/division, 7 settings (1 division =80 samples) |
| Measurement Functions: | Waveform measurement (Power waveform observation) mode
RMS trend measurement (RMS fluctuation measurement) mode |
| Number of Input Channels: | 4 analog channels (standard capability) |
| Memory Capacity: | 64 k words/ch (continuous 4-channels measurement) |
| Data Storage: | Type II PC card slot (for SRAM cards up to 32 MB, flash ATA cards up to 528 MB) |
| Recording and Display: | 5.7-inch STN color LCD, 112 mm (4.4 in) ? 18 m (59.06 ft), thermal paper roll |
| Other Functions: | DMM function (voltage shown as numerals on the display), Cursor readout, etc. |
| Power Supply: | 100 to 240V AC (50/60 Hz) with use the 9418-10 AC ADAPTER (supplied as standard)
9447 BATTERY PACK (Continuous use 3 hours) (option) |
| Dimensions: | 280 mm(11.02 in)W ? 170 mm(6.69 in)H ? 52 mm(2.05 in)D |
| Accessories: | 9418-10 AC ADAPTER (1), Recording paper (1), 9197 CONNECTION CORD (4), Blank box (1), Shoulder strap (1) |
