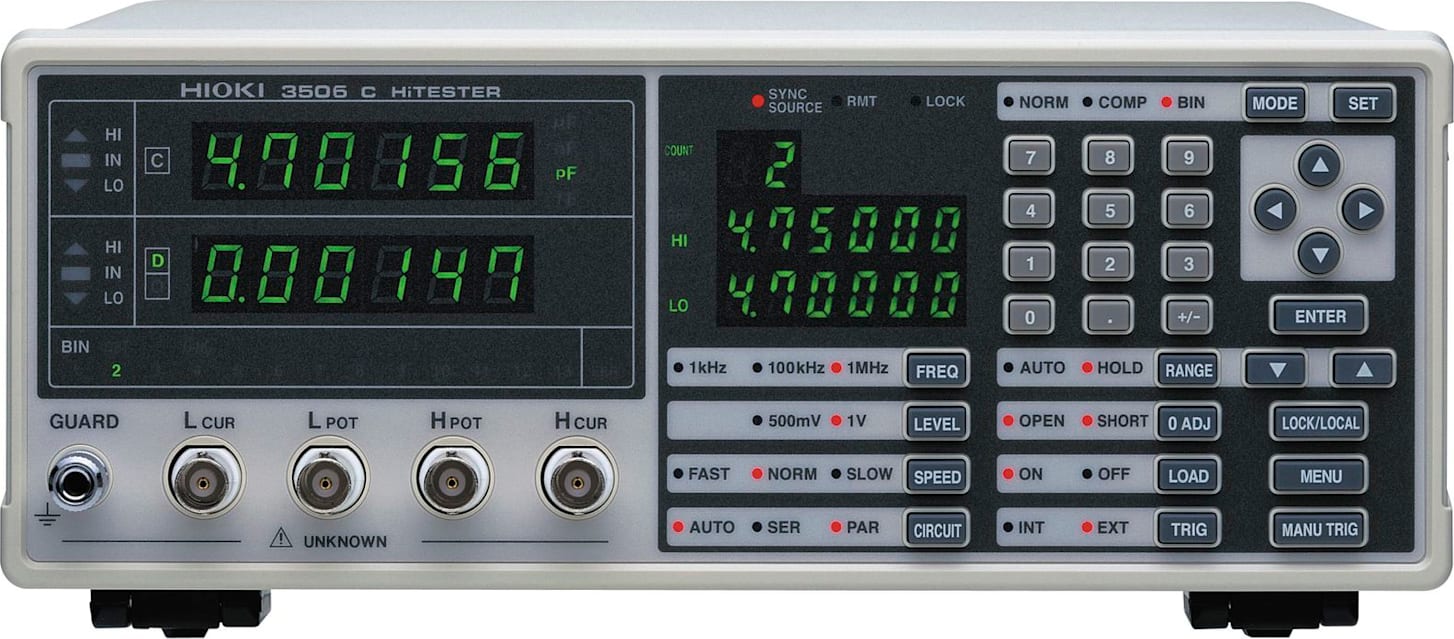

Basic Specifications |
Measurement parameters |
C (Capacitance), D (loss coefficient, tan δ), Q (1/tan δ) |
Measurement range |
C: 0.001fF to 15.0000mF, D: 0.00001 to 1.99999, Q: 0.0 to 19999.9 |
Basic accuracy |
(typical value) C: ±0.14% rdg., D: ±0.0013
Measurement accuracy = basic accuracy × B× C× D× E, B to E is coefficient |
Soruce frequency |
Model 3505: 1kHz, 100kHz, 1MHz,
Model 3506: 1kHz, 1MHz |
Measurement signal level |
500mV, 1V rms |
Output resistance |
1? (@ 1kHz in 2.2mF and higher ranges; @100kHz in the 22nF and higher ranges), 20? (in ranges other than the above) |
Display |
LED (six digits, full scale count depends on measurement range) |
Measurement time |
2ms typical (FAST mode) Actual measurement time depends on measurement configuration settings |
Function |
BIN (measurement values can be classified by rank), Trigger-synchronous output, Setting configurations can be stored, Comparator, Averaging, Low-C reject (bad contact detection), Chatter detection, Current detection circuit monitoring, Applied voltage value monitoring, EXT. I/O, RS-232C, GP-IB |
Power consumption |
Selectable 100, 120, 220 or 240V AC ±10%, 50/60Hz 40VA max. |
Dimensions, mass |
260 mm (10.24 in) W × 100 mm (3.94 in) H × 298 mm (11.73 in) D, 4.8 kg (169.3 oz) |
Supplied accessories |
Power cord × 1, Spare fuse × 1 |
