Measurement items |
Cs, (capacitance) Cp, (loss coefficient - tan δ) D |
Ranges of Measurement |
C 0.9400pF to 20.0000mF
D .00001 - 1.99000
|

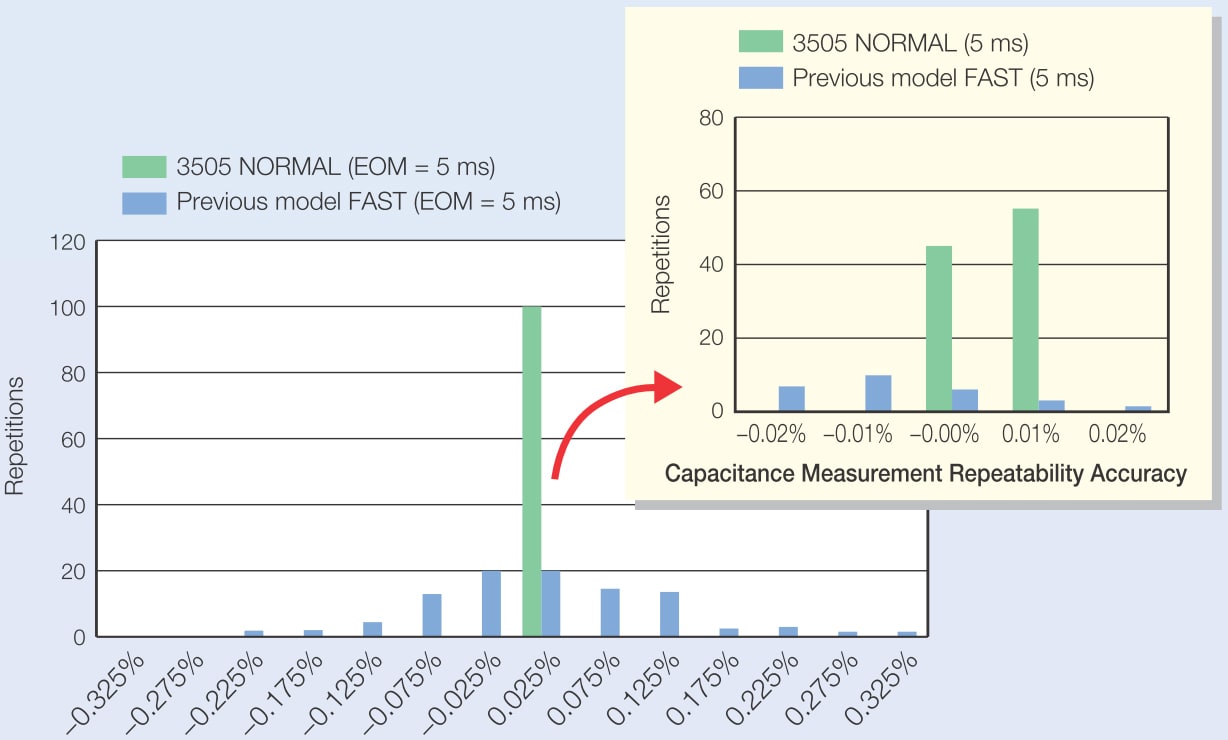

Accuracy (Basic) |
(typ. value) C +/- 0.09 percent rdg. +/- 10 dgt. D +/- 0.0016
accuracy of measurement = accuracy (Basic) × E x D x C x B, E to B is coefficient |
Frequency Source |
120 Hertz, 1 kiloHertz |
Signal level for Measurements |
100 milliVolts, 500 milliVolts, 1 Volt rms
CV Measurement range 100mV - to 170 μF range max. (1kHz Source frequency), to 1.45 mF range max. (120Hz Source frequency)
CV Measurement range 500mV - to 170 μF range max. (1kHz Source frequency), to 1.45 mF range max. (120Hz Source frequency)
CV Measurement range 1V - to 70 μF range max. (1kHz Source frequency), to 700 μF range max. (120Hz Source frequency ) |
Resistance of Output |
5 Ohms (open terminal (voltage mode) outside the CV measuring range) |
LED Display |
full scale count depending on the measurement range, 6 digits |
Measurement time |
2 milliseconds typ. (FAST mode, 1 kiloHertz)
Actual time of measurements depends on the measurement configurations settings |
Functions |

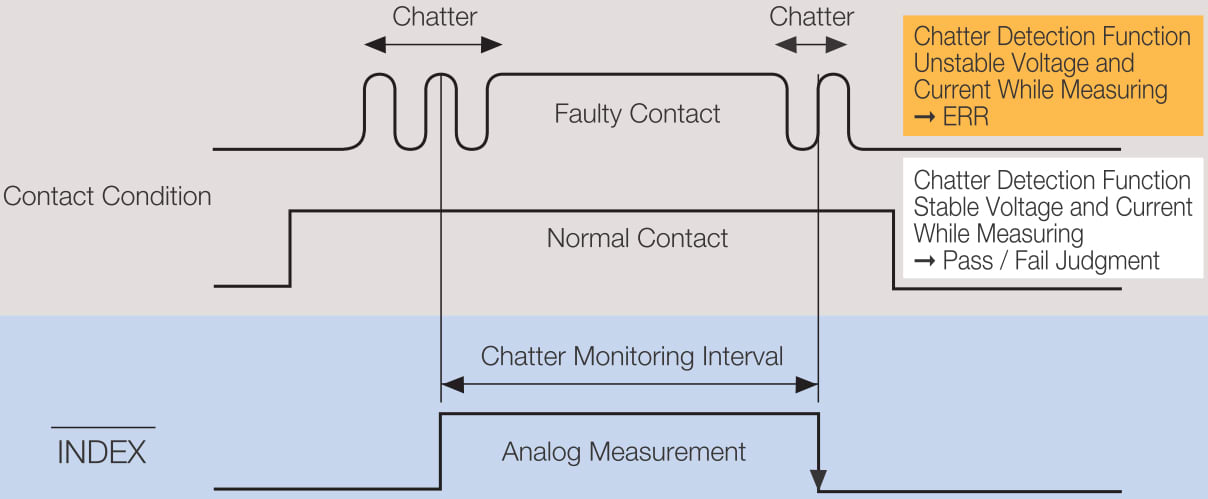

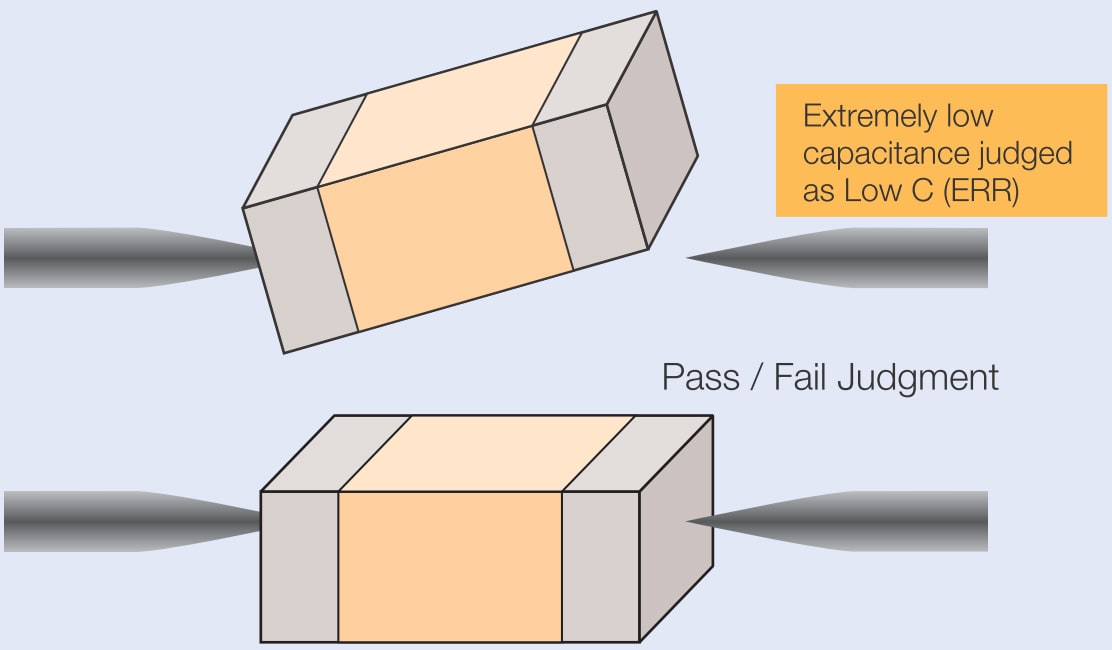

Four terminal contact checking function, Trigger synchronous output, BIN (rank classified measurement values), Averaging, Comparator, Storable Setting configurations, Low C rejection (detection of bad contacts), RS-232C, EXT. I/O, GP-IB, Chatter detection |
Power |
Selectable 1240, 220, 120 or 110 Volts AC +/- 10 percent, 50 / 60 Hertz, 110 VoltAmps maximum |
Dimensions (WxHxD) |
260 millimeters (10.24 inches) × 100 millimeters (3.94 inches) × 220 millimeters (8.66 inches), 3.8 kilograms (134.0 ounces) |
Accessories included |
Power cord
Spare fuse
|
