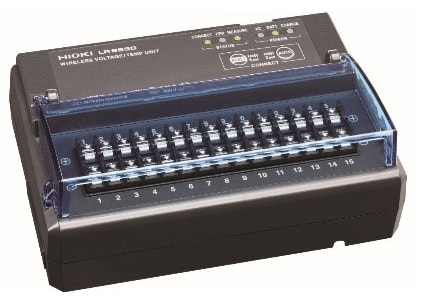

Hioki LR8530 - Wireless Voltage/Temp Unit, 15 Channels

Name: Hioki LR8530 - Wireless Voltage/Temp Unit, 15 Channels
Brand: Hioki
SKU: HiokiLR8530
Price: 1980.00 USD
Availability: InStock

0 reviews | Model: Hioki LR8530

Compare

WIRELESS VOLTAGE/TEMP UNIT (15ch)

15 channels, for voltage and temperature measurement
Wireless connection between LR8450-01 and measurement module, 30 m range
Sampling rate of up to 10 ms with 15 channels
For DC voltage measurement and temperature measurement using thermocouples

View Product Details

Your Price: $1,980.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series


Product	Hioki LR8530 WIRELESS VOLTAGE/TEMP UNIT (15ch)	Hioki LR8532 WIRELESS VOLTAGE/TEMP UNIT (30ch)	Hioki LR8532 Kit LR8532 w/ Z1007	Hioki LR8531 WIRELESS UNIVERSAL UNIT (15ch)	Hioki LR8531 Kit LR8450-01 w/ C1012, Z4003, 2 x Z1007	Hioki LR8530 Kit LR8530 w/ Z1007	Hioki LR8533 WIRELESS HIGH SPEED VOLTAGE UNIT (5ch)	Hioki LR8533 Kit LR8533 w/ Z1007	Hioki LR8534 WIRELESS STRAIN UNIT (5ch)	Hioki LR8534 Kit LR8534 w/ Z1007
Price
In Stock
SAMPLE RATE/Intervals	10 ms	20 ms	20 ms	10 ms	10 ms	10 ms	1 ms	1 ms	1 ms	1 ms
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Hioki LR8530 Accessories

Choose a Category

for the Hioki LR8530

Hioki Z1007 Battery Pack for LR8410, LR8510 and LR8511

Catalog: Z1007

(0)

In Stock!

Add to Cart

Hioki Z1008 AC Adapter for LR8410-20, LR8510, LR8511

Catalog: Z1008

(0)

In Stock!

Add to Cart

Hioki C1012 Carrying Case for LR8450

Catalog: C1012

(0)

In Stock!

Add to Cart

Hioki LR8450-01 MEMORY HiLOGGER (Wireless LAN equipped model, main unit only)

Catalog: LR8450-01

(0)

In Stock!

Add to Cart

Hioki Z3230 WIRELESS LAN ADAPTER

Catalog: Z3230

(0)

In Stock!

Add to Cart

Hioki LR8530 - Wireless Voltage/Temp Unit, 15 Channels

15 channels, for voltage and temperature measurement
Wireless connection between LR8450-01 and measurement module, 30 m range
Sampling rate of up to 10 ms with 15 channels
For DC voltage measurement and temperature measurement using thermocouples

The Hioki LR8530 provides 15 channels with maximum sampling rate 10 ms. the wireless Voltage/Temp unit LR8530 can operate for about 9 hours on battery power. If the unit is charged at night, it can operate on the battery pack alone during the day.

The LR8530 cannot perform measurement by itself. Memory HiLogger LR8450-01 is required separately. By attaching the Z3230 Wireless LAN Adapter (accessory), LR8530 can be wirelessly connected to the Memory HiLogger LR8450-01.

Model LR8530 Specifications
Connectable instrument	Memory HiLogger LR8450-01 (Wireless LAN model)
Control　communications　method	Connect wirelessly via Wireless LAN Adapter Z3230 (included) Wireless LAN (IEEE 802.11b/g/n) Communication range: 30 m (line of sight) Encryption function: WPA-PSK/WPA2-PSK, TKIP/AES Available number of channels: 1 to 11
Communications buffer memory	4 M word (volatile memory) Saves data in the event of a communications error. Data is resent when communications are restored.
Operating temperature and humidity	-20°C to 55°C, 80% RH (no condensation) (Charging temperature range: 5°C to 35°C)
Storage temperature and humidity	-20°C to 60°C, 80% RH (no condensation)
Vibration resistance	JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent
LED display	Wireless connection, measurement status, error status, AC adapter/external power, battery power, charge status
Automatic connection function	Available
Number of input channels	15 ch (Able to set voltage or thermocouple for each channel)
Input terminals	M3 screw-type terminal block (2 terminals per channel)
Measurement target	Voltage, thermocouples
Input type	Scanning by semiconductor relays All channels isolated

Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ
Power Source	AC Line, Battery
Battery Life	9 HR
Dataloggers / Data Acquisition/Voltage Datalogger Template
SAMPLE RATE/Intervals	10 ms
Test Equipment General Attributes
Warranty	3 YEARS
Safety Approval	CE
Shipping Weight	3 LBS
Power Supply Voltage	Battery Powered
Country of Origin	Japan
