Hioki CT9667-01 AC Flexible Clamp Sensor

Name: Hioki CT9667-01 AC Flexible Clamp Sensor
Brand: Hioki
SKU: HiokiCT9667-01
Price: 440.00 USD
Availability: InStock

0 reviews | UPC: 638317202703 | Model: Hioki CT9667-01

Hioki CT9667-01 Flexible Clamp On Sensor

Compare

Flex CT 500/5000A (3169, 3198, 3197, PW3360) 3.94 inch dia.

Thinner cables are easy to use in confined spaces and with complicated wiring
Shaped so that it’s easy to route through complex wiring
Easily supports large current measurements up to 5000 A
Wide 10 Hz to 20 kHz band with excellent frequency characteristics
Choose from three conductor diameter sizes
Combine with Hioki power meters or Memory HiCorders

View Product Details

Your Price: $440.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Hioki CT9667-01 Flex CT 500/5000A (3169, 3198, 3197, PW3360) 3.94 inch dia.	Hioki CT9667-02 Flex CT 500/5000A (3169, 3198, 3197, PW3360)7.09 inch dia.	Hioki CT9667-03 New Flex CT 500/5000A 10" Diameter
Price
In Stock
Type (Current Clamp Adaptors	Flexible/Rogowski	Flexible/Rogowski	CT
Maximum Current AC	500 A	5000 A	5000 A
Maximum Conductor Size	3.94 IN	7.09 IN	10 IN
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Hioki CT9667-01 Accessories

Choose a Category

for the Hioki CT9667-01

Hioki 9445-02/4 KIT 9445-02 Flex Adapter Kit (9445-02 w/ 4 in 1 AC Flex Adapter)

Catalog: 9445-02/4 KIT

(0)

In Stock!

Add to Cart

Hioki 9445-02 AC Adapter (Universal-Style)

Catalog: 9445-02

(0)

In Stock!

Add to Cart

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

Hioki CT9667-01 AC Flexible Clamp Sensor

Hioki current sensors are best-in-class devices for use with power meters, PQAs and Memory HiCorders. The CT9667 series are flexible Rogowski type AC sensors comprising of 3 different models in various loop diameter sizes from 100 to 254 mm. The 100mm and 180mm diameter sensor also feature extra thin cables for easier looping around complicated wiring. All 3 sensors 500A/5000A ranges, making them ideal for measuring large load current.

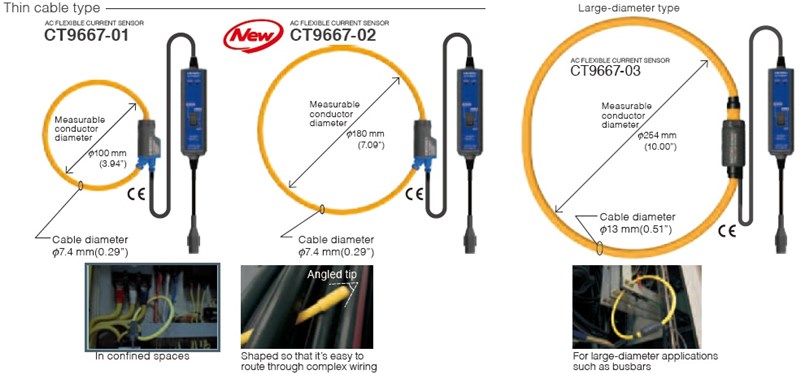

Two New Variations with Thinner Cable

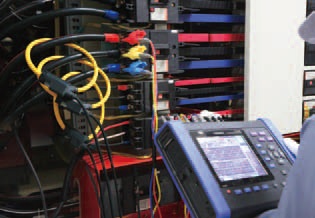

Easy to loop around, even in confined spaces

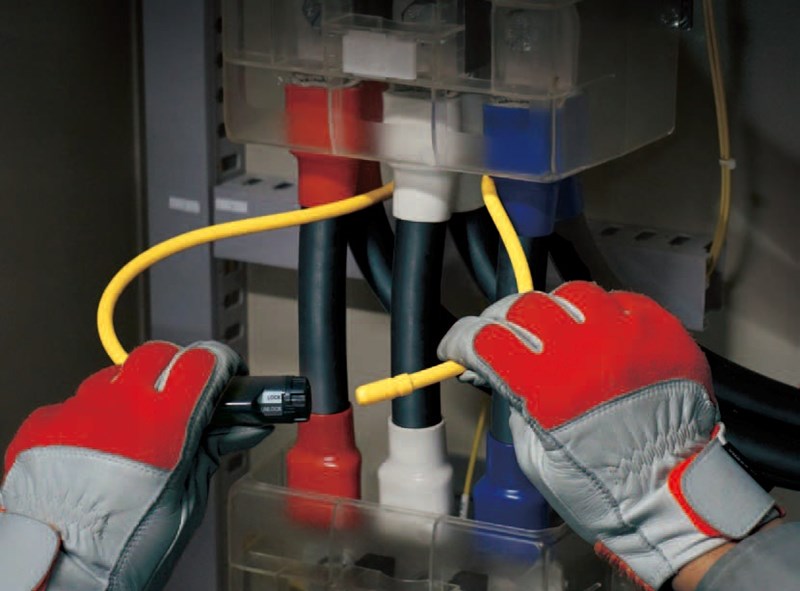

Thinner cable type is easy to use in confined spaces and with complex wiring

Hioki CT9667-01 AC Flexible Clamp Sensor Specifications

Measurable conductor diameter	φ100 mm (3.94”)
Rated input current	5000 A AC/ 500 A AC
Maximum allowable input	Continuous 10000 A (at 45 to 66 Hz, requires derating at frequency)
Operating temparature range	-25 to 65°C (-13 to 149°F)
Dust and water resistance	IP54 (Flexible loop only)
Output voltage	5000 A range: 500 mV/f.s. AC (0.1 mV/A AC) 500 A range: 500 mV/f.s. AC (1 mV/A AC)
Amplitude accuracy	±2% rdg. ±0.3% f.s. (45 to 66 Hz, with conductor positioned at center of flexible loop)
Phase accuracy	Within ±1° (45 to 66 Hz)
Frequency bandwidth	10 Hz to 20 kHz (within ±3 dB)
Maximum rated voltage to earth	1000 V AC (measurement category III), 600 V AC (measurement category IV)
Power supply	LR6 (AA) alkaline batteries ×2; continuous operating time: 7 days; rated output: 35 mVA AC ADAPTER 9445-02 (Universal 100 to 240VAC , 9V/1A output/for UL type); rated output: 0.2 VA AC ADAPTER 9445-03 (universal 100 to 240VAC , 9V/1A output/for EU type); rated output: 0.2 VA External DC power supply (5 to 15 V DC); rated output: 0.2 VA
Dimensions	Flexible loop cable diameter: φ7.4 mm(0.29”) Cable length: Between flexible loop and battery box: 2 m (6.56 ft), Output cable: 1 m (3.28 ft) Battery box: 35 mm (1.38 in)W × 120.5 mm (4.74 in)H × 34 mm (1.34 in)D
Mass (Including batteries)	280 g (9.9 oz)
Accessories	LR6 (AA) alkaline batteries ×2, Instruction manual ×1

Options

AC ADAPTER 9445-02
AC ADAPTER 9445-03

Tech Specs

Clamp Meters/Current Clamp Adaptors / Current Clamps Template
Type (Current Clamp Adaptors	Flexible/Rogowski
Maximum Current AC	500 A
Maximum Conductor Size	3.94 IN
Test Equipment General Attributes
Product Weight	280 GRAMS (0.617 LBS)
HTS/Schedule B Number	9030333400
ECCN Number	3A992
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	Japan
