Hioki CT6863-05 200 Amp, AC/DC Current Solid Sensor 500kHz

Name: Hioki CT6863-05 200 Amp, AC/DC Current Solid Sensor 500kHz
Brand: Hioki
SKU: HiokiCT6863-05
Price: 1584.00 USD
Availability: InStock

0 reviews | UPC: 638317200785 | Model: Hioki CT6863-05

Compare

AC/DC Current Sensor (200A 500kHz) for PW6001

Super high precision, ±0.05% amplitude accuracy, ±0.2° phase accuracy
Wide-bandwidth DC to 500kHz excellent frequency characteristics
Applications in the fields of electric and hybrid electric vehicles
Wide operating temperature range(-30°C to 85°C) fit for automobile applications
Ideal for evaluation of solar power generation and fuel cells to measure battery charge and discharge and the secondary side of inverters
For observing waveforms to be used with the oscilloscopes or Memory HiCorders

View Product Details

Your Price: $1,584.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Hioki CT6863-05 AC/DC Current Sensor (200A 500kHz) for PW6001	Hioki CT6841 High-precision Current Transformer - 20A AC/DC	Hioki CT6846 AC/DC Current Probe (1000A DC-20kHz)	Hioki CT6862-05 AC/DC Current Sensor (50A) for PW6001	Hioki 9272-05 AC Current Probe (20A/200A)	Hioki CT6875 AC/DC Current Sensor (500A DC-2MHz 3m Cable)
Rating	(0)	(0)	(0)	(0)	(0)	(0)
Price
In Stock
Type (Current Clamp Adaptors		CT			CT
Maximum Current AC		20 A			200 A
Maximum Current DC		20 A
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Hioki CT6863-05 Accessories

Choose a Category

for the Hioki CT6863-05

Hioki CT9555 Power Supply for -05 (12-pin) CTs. Waverform-output only. Use with Loggers.

Catalog: CT9555

(0)

In Stock!

Add to Cart

Hioki CT9556 Power Supply for -05 (12-pin) CTs. Waverform or RMS output. Use with...

Catalog: CT9556

(0)

In Stock!

Add to Cart

Hioki CT9557 Quad-Output Power Supply for -05 (12-pin) CTs. Waverform or RMS value output

Catalog: CT9557

(0)

In Stock!

Add to Cart

Hioki L9217-01 Connection Cord (BNC to BNC, 3 m)

Catalog: L9217-01

(0)

In Stock!

Add to Cart

Hioki L9217-02 Connection Cord (BNC-BNC, 10 m)

Catalog: L9217-02

(0)

In Stock!

Add to Cart

Hioki 9165 Connector Cable (BNC-BNC)

Catalog: 9165

(0)

In Stock!

Add to Cart

Hioki 9318 Adapter Cable for 8940

Catalog: 9318

(0)

In Stock!

Add to Cart

Hioki CT9900 CT Conversion Cable 10 pin to 12 pin

Catalog: CT9900

(0)

In Stock!

Add to Cart

Hioki CT9901 CT Conversion Cable 12 pin to 10 pin

Catalog: CT9901

(0)

In Stock!

Add to Cart

Hioki CT9902 Clamp Extension Cable 12 pin to 12 pin (5m)

Catalog: CT9902

(0)

In Stock!

Add to Cart

Hioki L9217 Connection Cord (BNC-BNC)

Catalog: L9217

(0)

In Stock!

Add to Cart

Hioki CT6863-05 200 Amp, AC/DC Current Solid Sensor 500kHz

Super high precision, ±0.05% amplitude accuracy, ±0.2° phase accuracy
Wide-bandwidth DC to 1 MHz excellent frequency characteristics
Applications in the fields of electric and hybrid electric vehicles

Hioki pull-through AC/DC current sensors are best-in-class devices for use with power meters, Memory HiCorders and high performance oscilloscopes. The CT6862 is a DC to 1MHz/50A sensor, and the CT6863 is a DC to 500kHz/200A sensor, and both are ideal for capturing current signals from switching power supplies, inverters, power conditioners, etc.

Hioki CT6862 wide-bandwidth and high-precision AC/DC current sensors achieve high accuracy measurement of both small- and large-current signals. They can be used for a wide variety of applications in the fields of electric and hybrid electric vehicles, inverters and other devices, alternative energy sources such as solar power and fuel cells, as well as home electronic appliances and system equipment.

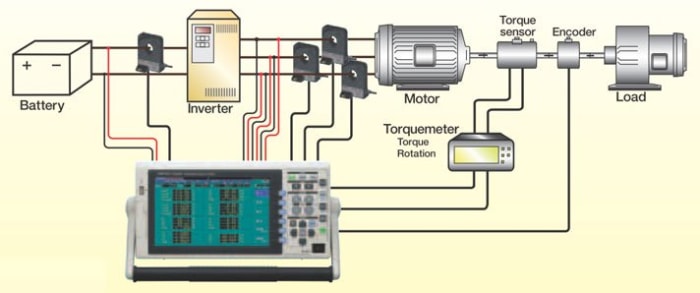

Ideal for comprehensive evaluation of wide-bandwidth and high-precision inverter motors
