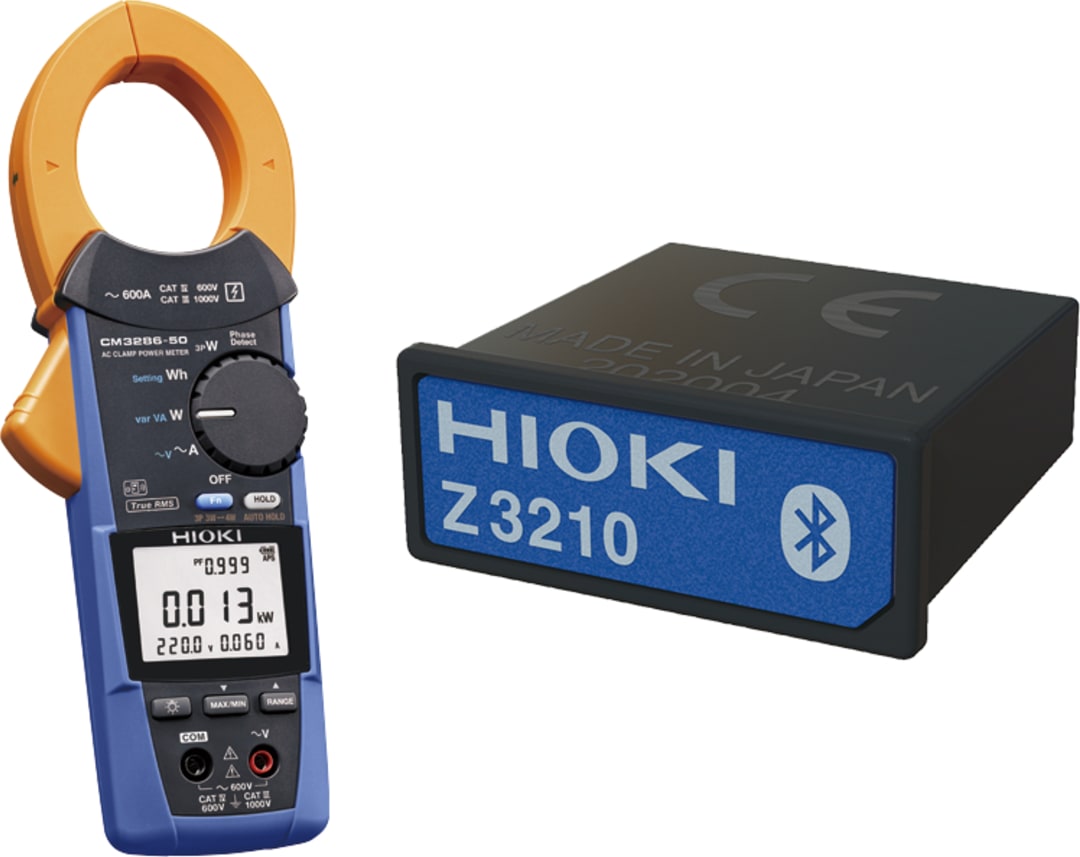

• Package includes Hioki CM3286-50 Clamp Meter and Z3210 wireless adapter
• True RMS AC measurements
• Frequency characteristics: 45 Hz - 1 kHz
• 600A AC Current
• Power: 360 kW AC

Hioki clamp meters are best-in-class handheld current and voltage meters for safely and accurately measuring power lines. The CM3286-50 clamp on the power meter can measure voltage, current, power, power factor, phase angle, reactive power, or frequency, as well as detect phase sequence on live lines at any desired point of a single-phase circuit or three-phase circuit.

Wirelessly connect Hioki-compliant instruments with a simple connection.

Transfer measurements to your smartphone or tablet and quickly create reports with field photos and drawings.

Delivering a broad range of measurements at sites from manufacturing plants to households

Accurately measure power from 5 W at a current as low as 60 mA to 360 kW at a maximum of 600 A (single-phase power measurement)

<Measurement line>

Measure power in single-phase to balanced three-phase circuits (with estimated values)

(1-phase/ 2-wire, 1-phase/ 3-wire, balanced 3-phase/ 3-wire, and balanced 3-phase/ 4-wire)

Related parameters and connection locations are shown on display at once (Main parameter×1, Sub-parameter×3)

Provides a simple on-screen guide indicating how to connect it to a 3-phase circuit.

The clamp meters beep when the measured value stabilizes and then automatically hold the display value.

This is useful when using the instrument in locations where it is difficult to see the display or press the hold button.

When the clamp power meter detects excessive over current or voltage input during a continuity check, it alerts you with a red backlight and beeping tone in order to help prevent accidents.

CM3286-50 can measure unbalanced power in a 3-phase/ 3-wire circuit by measuring the single-phase power twice and then automatically adding the results.

(The instrument can also measure 3-phase/4-wire circuits in three separate measurements.)

Since it can display maximum (MAX), minimum (MIN), and average (AVG) values, the CM3286-50 is useful when you need to ascertain the magnitude of fluctuations.

And since it can also measure crest (PEAK) values, you can use it to check fluctuations at the crest value level.

CM3286-50 can be used with the optional Clamp-On Adapter 9290-10 to measure busbars of up to 55 mm in diameter or 80 × 20 mm.

Measure high currents of up to 1000 A AC (or 1500 A for up to 5 min.).

Detect the phase sequence of the 3-phase power line with the easy-to-see display.

GENNECT Cross, a free app designed specifically for use with Hioki measuring instruments, lets you check and manage measurement results and create reports.

The software provides a range of functionality that helps manage data in the field, including photographing measurement sites, placing measurement results on photographs, and saving handwritten memos.

Boost work efficiency in the field by letting you directly transfer measurement data to (i.e., enter measured values directly into) templates created as Excel (optional wireless adapter Z3210 is required).

Harmonic measurement

When combined with GENNECT Cross, you can perform a simple harmonic analysis. Applications include problem analysis of power supply systems.

• Equipment burn-out and destruction due to overheating
• Malfunctions of power control devices
• Increased loss along with reduced service life and efficiency for power devices
