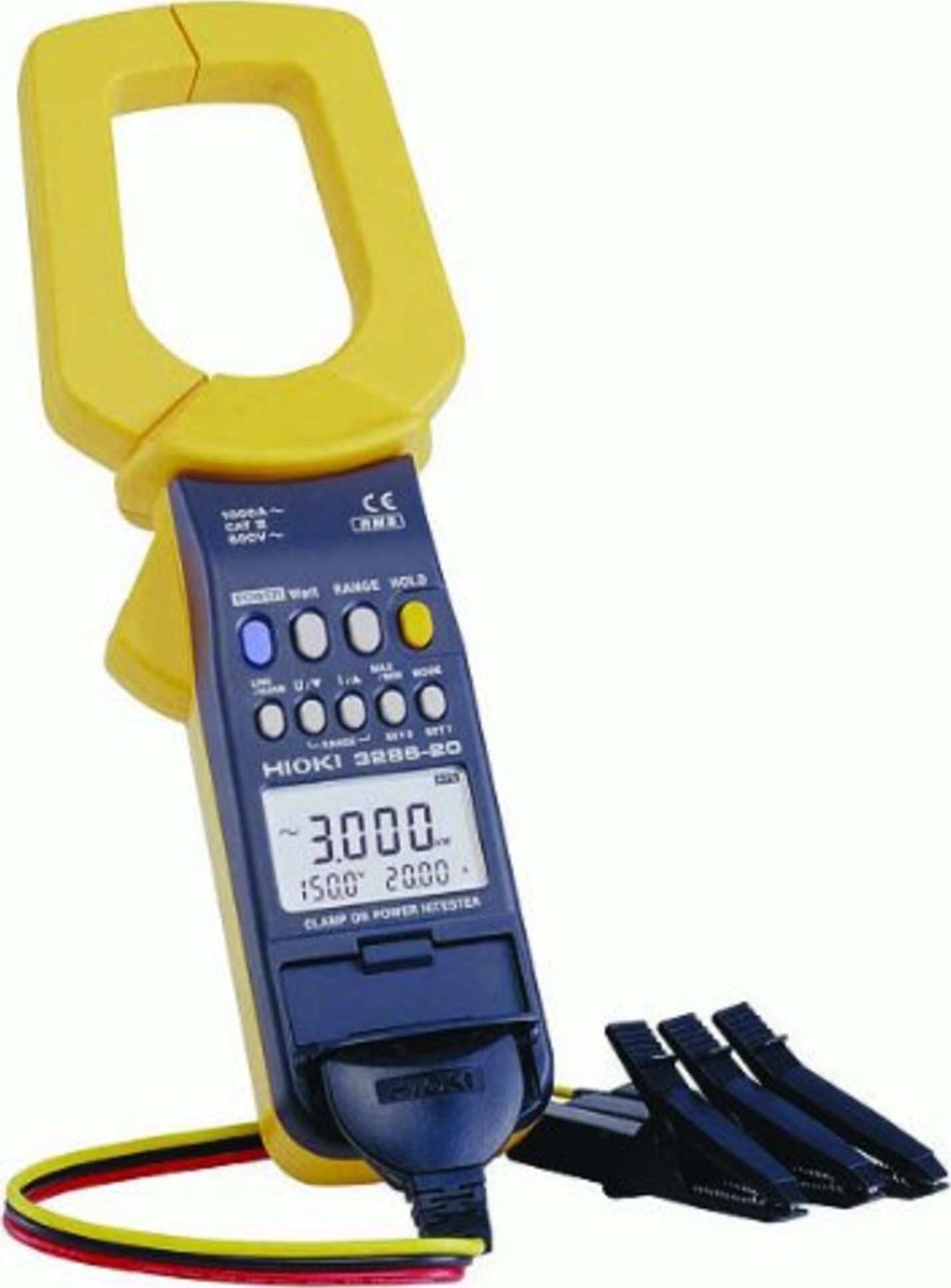

| Measurement Lines: |
Single-phase/two-wires, Three-phase/three-wires (balanced load only) |
| Measurement Items: |
Voltage, current, voltage/current peak, effective/reactive/apparent power(Single-phase or 3-phase), power factor, reactivity, phase angle, frequency, phase detection(3-phase), voltage/current harmonic levels(up to 20th) |
| Measurement Ranges: |
Voltage: 150.0 V to 600 V, 3 ranges
Current: 20.00 to 1000 A, 3 ranges
Power: 3.000 kW to 1200 kW, 18 combination patterns
Note: 3-phase power is calculated and displayed on the basis of a balanced, 50/60 Hz, sine wave input. For apparent power and reactive power, the unit of watts in the above table is replaced by VA and var respectively. |
| Basic Accuracy: |
Power/single-phase: ±2.3 % rdg. ±5 dgt., Power/3-phase: ±3.0 % rdg. ±10 dgt. (at balanced load) |
| Voltage/Current Accuracy: |
Voltage: ±1.0 % rdg. ±3 dgt., Current: ±1.3 % rdg. ±3 dgt. (at 45 to 66 Hz) |
| Frequency characteristics (at AC current / voltage): |
AC current : 45 to 1 kHz AC voltage : 30 to 1 kHz |
| Other functions : |
Phase detection, Record (Max. value/Min. value), Battery capacity display, Data hold, Auto power off, Data output (RS-232C interface by optical insulating coupler) |
| Display Update Rate: |
NORMAL: approx. 1 time/ sec, SLOW: 1 time/ 3-sec, HARM meas.: approx. 1 time/ 2-sec |
| Power Supply: |
6LR61 alkaline battery × 1 (continuous operation max. 25 hours), 6F22 manganese battery × 1 (continuous operation max. 10 hours) |
| Core jaw dia.: |
Ø55 mm(2.17 in) or 80 mm (3.15 in) × 20 mm (0.79 in) busbar |
| Dimensions: |
100 mm(3.94 in)W × 287 mm(11.3 in)H × 39 mm(1.54 in)D |
| Accessories: |
9635 VOLTAGE CORD (1), 9245 CARRYING CASE, (1), Hand strap (1) |
