Standards:
RAL 7032 Beige

• UL 508 Type 12
• CSA Type 12
• EIA RS-310-D
• Complies with:
   NEMA Type 12
   IEC 60529 IP54

ANSI 61 Gray

• UL 508 Type 3R, 4, 4X, 12
• CSA Type 3R, 4, 4X, 12
• Complies with:
   NEMA Type 3R, 4, 12
   IEC 60529, IP66

Stainless Steel (Type 304)

• UL 508 Type 3R, 4, 4X, 12
• CSA Type 3R, 4, 4X, 12
• Complies with:
   NEMA Type 3R, 4, 4X, 12
   IEC 60529, IP66

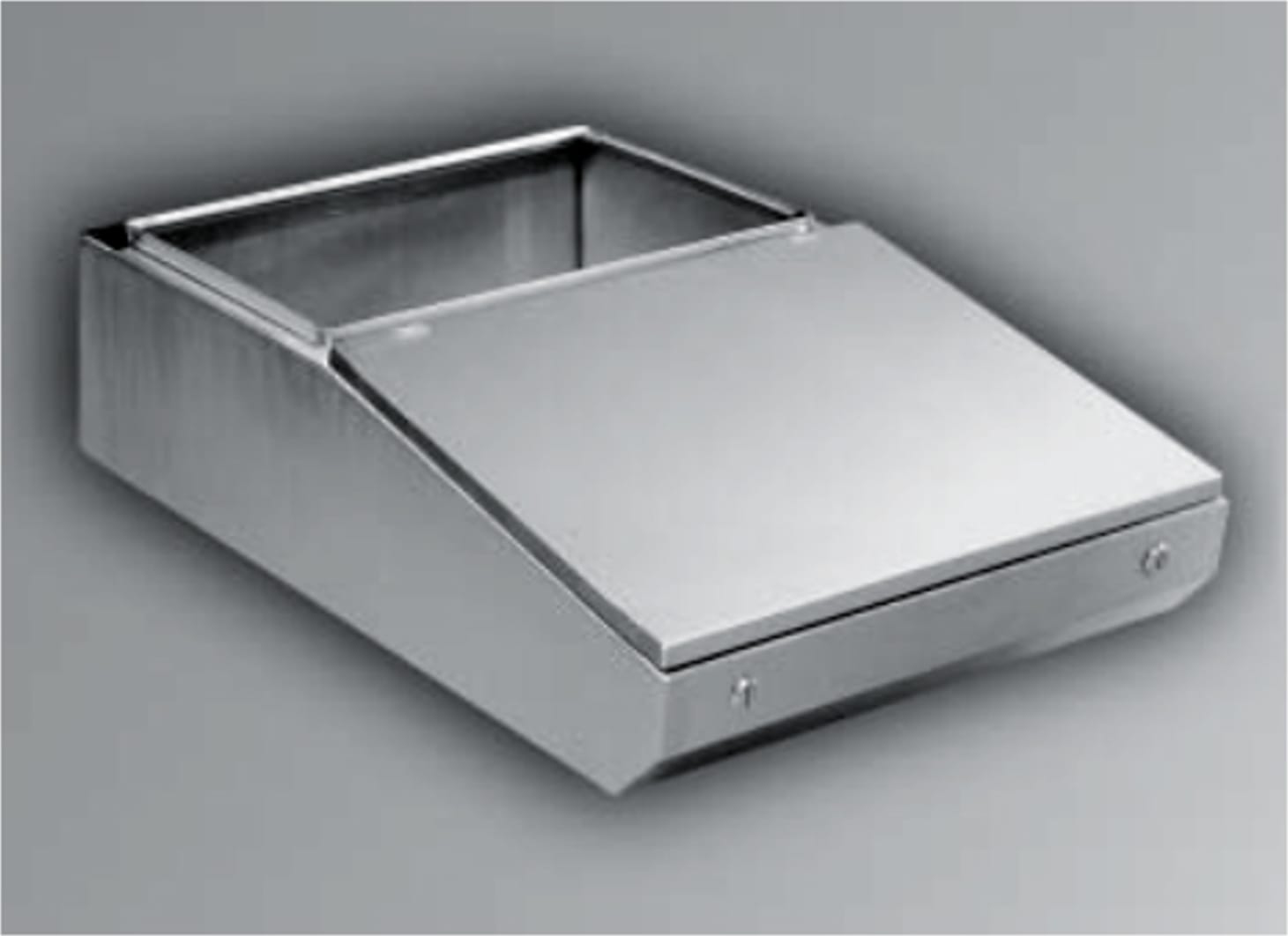

Construction:

• Formed 14 gauge steel bodies with 14 gauge steel lid.
• Also offered with formed 14 gauge 304 stainless steel bodies with 14 gauge 304 stainless steel lid.
• Smooth, continuously welded seams without knockouts or holes.
• Body stiffeners are provided where required for increased strength and rigidity.
• Offered in 4 widths 24", 36", 48" and 60".
• Solid sides and back, lid on sloped top area, open on flat top area, bottom is solid under lid area and open under flat top area.
• Deep Desk has a 6.7" deeper top opening than standard desk allowing for support of Deep Turret - see drawings as Deep Desk has different profile (angled back) from Standard Desk (flat back.)
• Lid profiles provide increased strength.
• Formed lip on enclosure excludes flowing liquids and contaminants.
• Slotted quarter turn oil-tight latches secure the lid, with optional tamper resistant and locking latches available.
• Stainless steel models utilize stainless steel hardware.
• Oil resistant gaskets are permanently secured.
• Features several internal stud locations for mounting Desk Inner Panel.
• A bonding screw is provided on the lid and a grounding stud is provided in the enclosure.

Finish:

• Available in RAL 7032 beige powder coating, ANSI 61 gray powder coating and natural stainless steel with a smooth, brushed finish.
• Desk covers available in same finishes.

Accessories:

• Desk cover
• Desk inner panel
