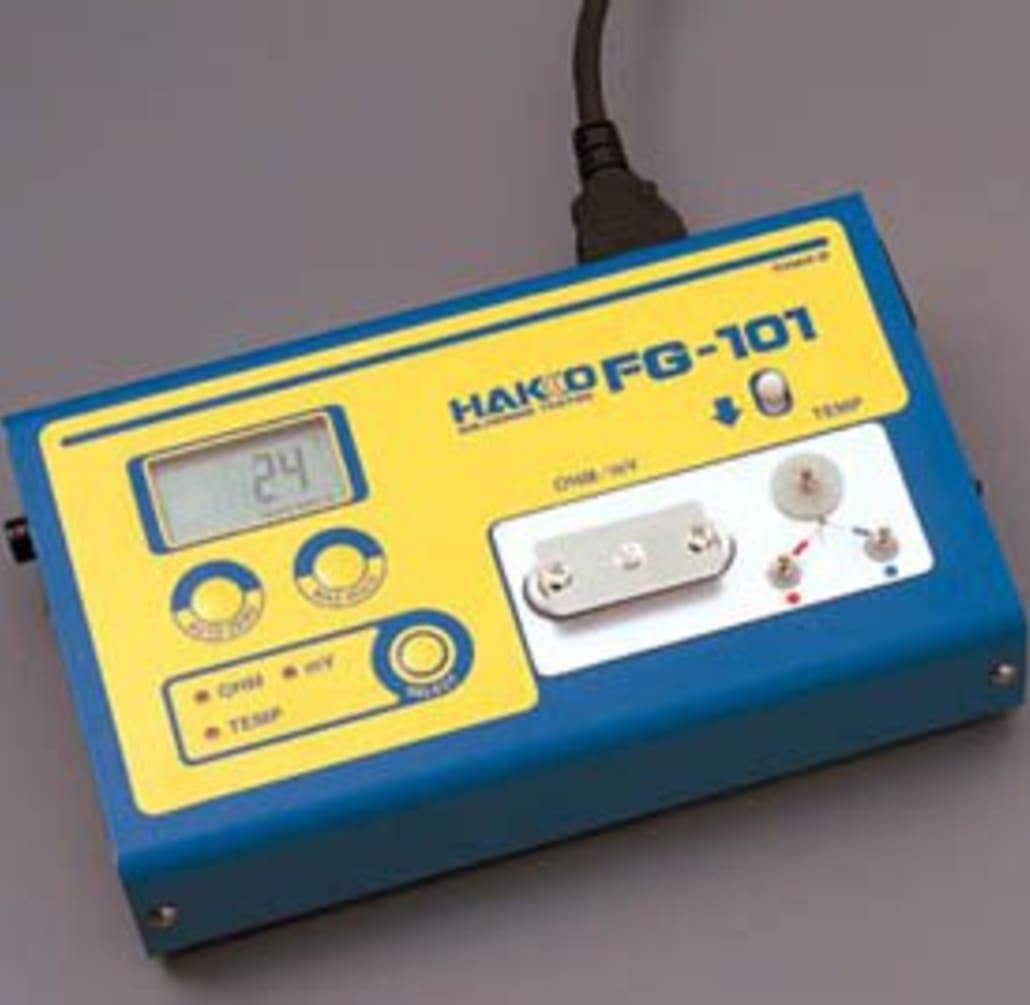

Hakko FG101-16 Celsius Soldering Station Tester - Includes Certificate of Calibration

Name: Hakko FG101-16 Celsius Soldering Station Tester - Includes Certificate of Calibration
Brand: Hakko
SKU: HakkoFG101-16
Price: 1160.21 USD
Availability: InStock

0 reviews | Catalog: FG101-16 | UPC: 4962615025006 | Model: Hakko FG101-16

Compare

TESTER, w/THERMOMETER, Degree C, FG-101

Tip temperature, leak voltage and ground resistance of soldering irons can be measured
Soldering irons can be controlled based on the MIL-HDBK-263B standard.
SOldering irons can be controlled based on the IPC J-STD.
MAX HOLD function.
Leak voltage and ground resistance can be easily measured
Includes certificate of calibration

View Product Details

List Price: $1,221.27

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Soldering Accessories

for the Hakko FG101-16

Hakko 191-212 SENSOR, SET OF 10, LEAD FREE SOLDER, FG-101/100

Catalog: 191-212

(4)

In Stock!

Add to Cart

Hakko A1310 PROBE, THERMOCOUPLE, SOLDER POT, FOR FG-101/100

Catalog: A1310

(0)

In Stock!

Add to Cart

Hakko AS5000 Sensor, Lead Free Solder, Long Life, FG-101B/100B/101/100

Catalog: AS5000

(0)

In Stock!

Add to Cart

Temperature
Resolution	1°C
Measurement Range	0-700°C*1
Prevision	±3°C (between 300 and 600°C) ±5°C (other than above)
Sensor	K (CA) type thermocouple
Voltage
Resolution	0.1mV
Measurement Range	0 to 40mV (AC)
Precision	±(5% of reading +1 digit)
Resistance
Resolution	0.1Ω
Measurement Range	0 to 40Ω
Precision	±(5% of reading +1 digit)
Resistance
LCD	3½ digits
Over Range*2	LCD-Indicator
Burnout*3	LCD-Indicator
MAX HOLD	Shown as "MAX HOLD" in the lower right on the display

Power Consumption	100V-2.3W, 110V-2.5W, 120V-2.3W, 220V-2.2W, 230V-2.4W, 240V-2.6W
Dimensions	200(W) x 50(H) x 120(D)mm
Weight	1kg
Ambient Temperature / Humidity Range	0-40°C, 20-90%RH (Non condensing)
Enviromental Condition	Applicable rated pollution degree 2 (According to IEC/UL61010-1)

1 Temperature sensor (No.191-212) can only be used to measure temperatures below 500deg;C. To measure higher temperature, use an applicable temperature probe. 2 An Over Range alarm occurs during temperature measurement when the temperature sensor is not attached, and during voltage and resistance measurement when the tip is not in contact with the conduction plate. 3 When a sensor burns out, the same alarm symbol as the one for Over Range alarm is also displayed. If this alarm occurs, replace the sensor.

Tech Specs

Test Equipment General Attributes
Product Height	5.25 IN
Product Length	9.60 IN
Product Width	8.00 IN
HTS/Schedule B Number	8515.19.0000
ECCN Number	EAR99
Country of Origin	Japan
Shipping Height	5.25 IN
Shipping Length	9.60 IN
Shipping Width	8.00 IN

Start typing your question...

Answers (1) - Asked by Anonymous

I have this question too (0)

As the tip, element cover and other parts oxidize, heat conduction deteriorates and the tip temperature becomes lower. This causes the difficulty of soldering. Therefore, tip temperature should be inspected daily to have better soldering.

I found this helpful (0)

Inaccurate? (0)

Answered by Anonymous

Answers (1) - Asked by Anonymous

I have this question too (0)

Most leak current flows from the tip via the ground wire to the outlet ground terminal, and is prevented from affecting the device. Because of this, tip-to-ground resistance is another important issue that must be checked daily.

I found this helpful (0)

Inaccurate? (0)

Answered by Anonymous

Answers (1) - Asked by Anonymous

I have this question too (0)

Leak current is the current that leaks from the tip to a board or device. Leak voltage is a specific measurement of the level of this current. The leakage can adversely affect delicate devices, so it is necessary to check leak voltage on a daily basis.

I found this helpful (0)

Inaccurate? (0)

Answered by Anonymous
