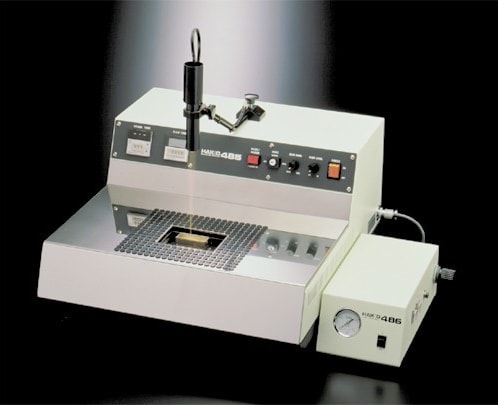

Hakko 485-1-V12 - Solder Fountain without 486 Air Control Unit

Name: Hakko 485-1-V12 - Solder Fountain without 486 Air Control Unit
Brand: Hakko
SKU: Hakko485-1-V12
Price: 6031.44 USD
Availability: InStock

0 reviews | Catalog: 485-1-V12 | UPC: 641328036311 | Model: Hakko 485-1-V12

Images (6) | Videos (1)

Compare

UNIT, REWORK, W/O 486, 485

Cannot Ship Air

Compact, high-performance soldering system
This model does not have the 486 air blower
Developed exclusively for soldering and desoldering components mounted on PC boards
Compatible with lead-free solder
Solder flow is time-controlled and temperature-controlled
Soldering and desoldering cycles are automatic and precise
A built-in locator light pinpoints the exact position for placing components
A large selection of custom nozzles are available
Solder sold separately

View Product Details

List Price: $6,031.47

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Nozzles
Soldering Accessories

for the Hakko 485-1-V12

Hakko 485-N-01 NOZZLE, 22 x 11mm, 14/16 PIN, 485

Catalog: 485-N-01

(0)

In Stock!

Add to Cart

Hakko 485-N-02 NOZZLE, 26 x 11mm, 18/20 PIN, 485

Catalog: 485-N-02

(0)

In Stock!

Add to Cart

Hakko 485-N-03 NOZZLE, 38 x 18mm, 28 PIN, 485

Catalog: 485-N-03

(0)

In Stock!

Add to Cart

Hakko 485-N-04 NOZZLE, 54 x 19mm, 42 PIN, 485

Catalog: 485-N-04

(0)

In Stock!

Add to Cart

Hakko 485-N-11 NOZZLE, 55 x 7mm, 40 PIN CONNECTOR, 485

Catalog: 485-N-11

(0)

In Stock!

Add to Cart

Hakko 485-N-12 NOZZLE, 69 x 7mm, 50 PIN CONNECTOR, 485

Catalog: 485-N-12

(0)

In Stock!

Add to Cart

Hakko 485-N-13 NOZZLE, 81 x 7mm, 60 PIN CONNECTOR, 485

Catalog: 485-N-13

(0)

In Stock!

Add to Cart

Hakko 485-N-14 NOZZLE, 30 x 30mm, PGA 30 PIN, 485

Catalog: 485-N-14

(0)

In Stock!

Add to Cart

Hakko 485-N-15 NOZZLE, 50 x 50mm, PGA 50 PIN, 485

Catalog: 485-N-15

(0)

In Stock!

Add to Cart

Hakko 485-N-16 NOZZLE, 11 x 22mm, CROSS, 14/16 PIN, 485

Catalog: 485-N-16

(0)

In Stock!

Add to Cart

Hakko 485-N-17 NOZZLE, 11 x 27mm, CROSS, 18/20 PIN, 485

Catalog: 485-N-17

(0)

In Stock!

Add to Cart

Hakko 485-N-18 NOZZLE, 18 x 38mm, CROSS, 28 PIN, 485

Catalog: 485-N-18

(0)

In Stock!

Add to Cart

Hakko 485-N-19 NOZZLE, 19 x 54mm, CROSS, 42 PIN, 485

Catalog: 485-N-19

(0)

In Stock!

Add to Cart

Hakko 485-06 Temperature Sensor for 485

Catalog: 485-06

(0)

In Stock!

Add to Cart

Hakko 485-24 Air Hose w/ Coupler for 485

Catalog: 485-24

(0)

In Stock!

Add to Cart

Hakko 485-26 LIGHT, LOCATER, 485

Catalog: 485-26

(0)

In Stock!

Add to Cart

Hakko 485-27 Table for Hakko 485 Soldering System

Catalog: 485-27

(0)

In Stock!

Add to Cart

Hakko 485-46 Motor for 485

Catalog: 485-46

(0)

In Stock!

Add to Cart

Hakko 485-47 Solder Bath

Catalog: 485-47

(0)

In Stock!

Add to Cart

Hakko 485-49 Omron Temperature Control Meter for 485

Catalog: 485-49

(0)

In Stock!

Add to Cart

Hakko 485-50 T1 Flow Timer

Catalog: 485-50

(0)

In Stock!

Add to Cart

Hakko 485-53 Impeller with shaft for 485

Catalog: 485-53

(0)

In Stock!

Add to Cart

Hakko 485-57 MOTOR CONTROL UNIT, SS21M-SSSD, 485

Catalog: 485-57

(0)

In Stock!

Add to Cart

Hakko 485-58 INSULATION, BATH, 485, 777-039

Catalog: 485-58

(0)

In Stock!

Add to Cart

Hakko 485-61 Key Switch

Catalog: 485-61

(0)

In Stock!

Add to Cart

Hakko 485-64 Motor Joint

Catalog: 485-64

(0)

In Stock!

Add to Cart

Hakko 485-65 Anti-Oxidizer Plate

Catalog: 485-65

(0)

In Stock!

Add to Cart

Hakko 485-67 CHAMBER, w/SPACER And NUT And WASHER, 485

Catalog: 485-67

(0)

In Stock!

Add to Cart

Hakko 485-68 120V-100V LG. Transformer

Catalog: 485-68

(0)

In Stock!

Add to Cart

Hakko 777-057 ASSY, CORD, LOC LAMP, SOCKET, 485

Catalog: 777-057

(0)

In Stock!

Add to Cart

Hakko 485-1-V12

Compact, high-performance soldering system
This model does not have the 486 air blower
Developed exclusively for soldering and desoldering components mounted on PC boards
Compatible with lead free solder
Solder flow is time-controlled and temperature-controlled

Solder Fountain without 486 Air Control Unit

The HAKKO 485 Solder Fountain is a compact, high-performance soldering system developed exclusively for soldering and desoldering components and connectors mounted on PC boards.

This soldering unit can be purchased with or without air blower control unit. The air blower is used to remove solder remaining in through holes.

Part numbers for each are as follows:

485-1-V12

485 system without 486 air blower

485-V12

485 system with 486 air blower

The 485 is shipped without solder.

Part Number	485-V12
Power Consumption	850W
Room Temperature	Between -5ºC (23ºF) and 40ºC (104ºF)
Temperature Control	Normal temperature - 299ºC (570ºF)
Solder	10 kg (22 lb.)
Heating Element	800W (400W x 2)
Air Pressure	2 kg/cm² (4.4 lbs.) - 10 kg/cm² (22 lbs.)
Dimensions	485 (Body)	500(W) x 245(H) x 550(D) mm 19.7(W) x 9.6(H) x 21.7(D) in.
	485 (Air Unit)	150(W) x 100(H) x 300 (D) mm 5.9(W) x 3.9(H) x 11.8(D) in.
Weight	485 (Body)	35 kg. (77 lbs.) without solder
	485 (Air Unit)	3.5 kg. (7.7 lbs.)

Tech Specs

Desoldering Equipment / Rework Template
Display Type	Digital
Test Equipment General Attributes
Warranty	1 YEARS
Warranty Details	1 year internal power Supply and 90 days external components.
Product Weight	77 LBS
Shipping Weight	95 LBS
Data Logging	No
Country of Origin	United States
UPC	641328036311
