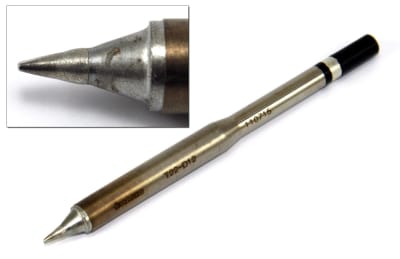

Hakko T22-D12 1.2 x 10mm Heavy Duty Chisel Tip

Heavy Duty Chisel Tip

• Chisel Tip
• Shape like a Flat-blade screwdriver
• 1.2 x 10mm
• Use for Hakko FM-2030 Heavy Duty Soldering Iron
• Capable of soldering by applying the tip in 2 ways: line and face
• Fast Thermal Recovery

This type has a shape like a cone or column cut at a slant, which allows users to select the cut surface size depending on the workpiece. It is used for drag soldering and pre-tinning of lead wires.

Soldering Chip Parts

Put the cut surface to the land and drag the tip slowly while feeding solder.

Note: Some IC is specified by manufacturer not to be touched electrode by tip end.

Drag Soldering

Put the cut surface to the leads and drag it slowly.

Note: Apply flux to leads and land pads before soldering.

It prevents the troubles such as solder bridge.

Pre-Tinning Lead Wire

Put the cut surface to the land and drag the tip slowly while feeding solder.

Note: Some IC is specified by manufacturer not to be touched electrode by tip end.

Point Soldering

1. Put the tip end to the land and the through-hole at onetime to heat them.
2. Feed solder to form smooth fillet on the land pad.

Melting and Removing Coil Coating

1. Put the tip end to the land and the through-hole at onetime to heat them.
2. Feed solder to form smooth fillet on the land pad.
