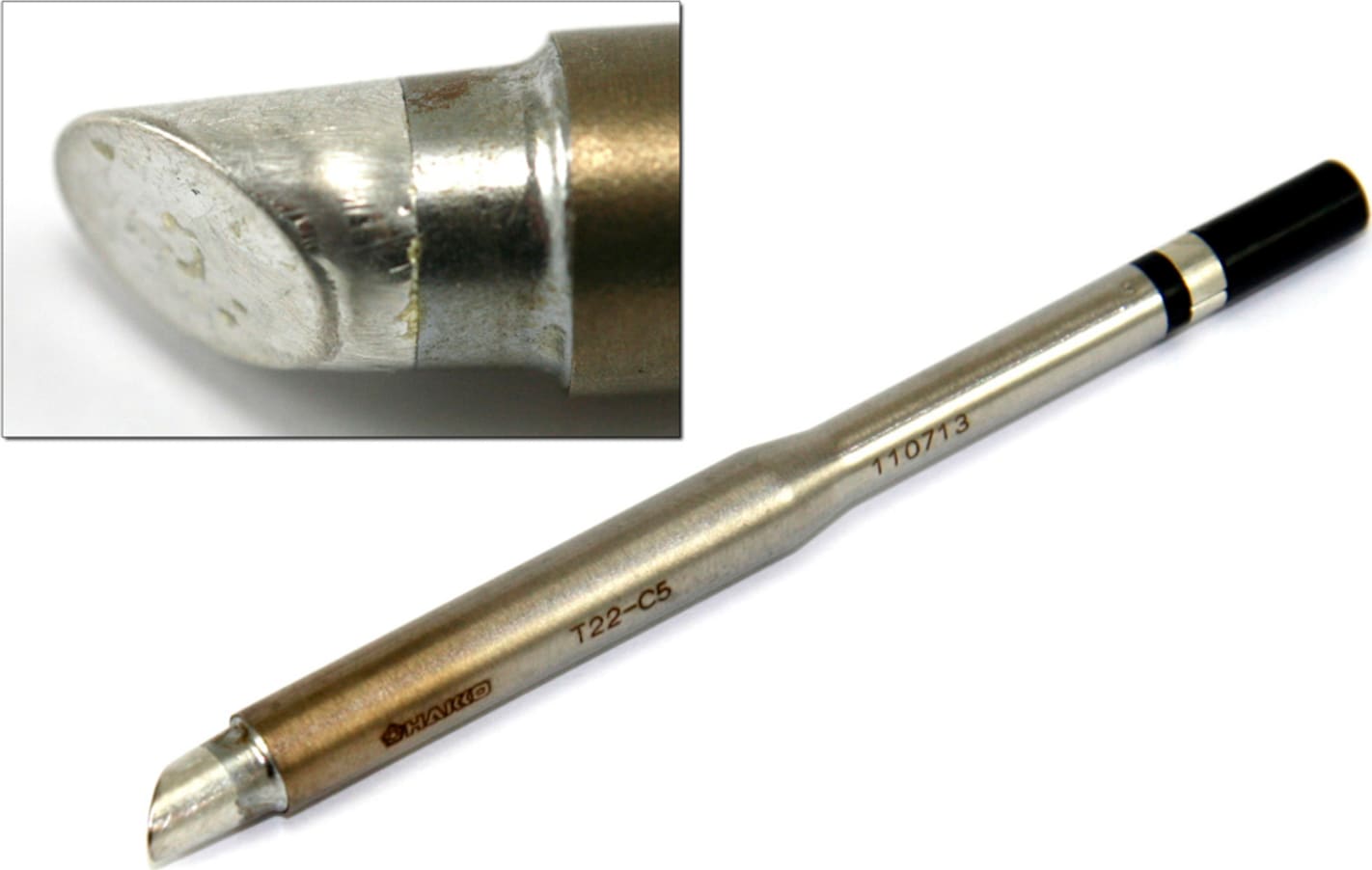

Hakko T22-C5 5mm/45° x 10mm Heavy Duty Bevel Tip

Name: Hakko T22-C5 5mm/45° x 10mm Heavy Duty Bevel Tip
Brand: Hakko
SKU: HakkoT22-C5
Price: 29.37 USD
Availability: InStock

0 reviews | Catalog: T22-C5 | UPC: 4962615038310 | Model: Hakko T22-C5

Compare

TIP, BEVEL, 5mm/45 Degree x 10mm, HD, FM-2031/2030

5mm/45ø x 10mm, HD
Tip Shape Bevel
Use for Hakko FM-2030 Heavy Duty Soldering Iron
Shaped like a cone or column cut at a slant
Allows users to select the cut surface size depending on the workpiece.
Used for drag soldering and pre-tinning of lead wires

View Product Details

List Price: $29.97

Your Price: $29.37

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series


Product	Hakko T22-C5 TIP, BEVEL, 5mm/45 Degree x 10mm, HD, FM-2031/2030	Hakko T22-BC2 TIP, BEVEL, 2mm/45 Degree x 12mm, HD, FM-2031/2030	Hakko T22-BL TIP, CONICAL, R0.2 x 15mm, HD, FM-2031/2030	Hakko T22-BL2 TIP, CONICAL, R0.5 x 15mm, HD, FM-2031/2030	Hakko T22-C3 TIP, BEVEL, 3mm/60 Degree x 17mm, HD, FM-2031/2030	Hakko T22-C6 TIP, BEVEL, 6mm/45 Degree x 10mm, HD, FM-2031/2030	Hakko T22-D08 TIP, CHISEL, 0.8 x 12mm, HD, FM-2031/2030	Hakko T22-D12 TIP, CHISEL, 1.2 x 10mm, HD, FM-2031/2030	Hakko T22-D16 TIP, CHISEL, 1.6 x 12mm, HD, FM-2031/2030	Hakko T22-D24 TIP, CHISEL, 2.4 x 7mm, HD, FM-2031/2030	Hakko T22-D32 TIP, CHISEL, 3.2 x 8mm, HD, FM-2031/2030	Hakko T22-D45 TIP, CHISEL, 4.5 x 15mm, HD, FM-2031/2030	Hakko T22-D52 TIP, CHISEL, 5.2 x 8mm, HD, FM-2031/2030	Hakko T22-J02 TIP, BENT, R0.2mm/30 Degree x 4mm x 11mm, HD, FM-2031/2030	Hakko T22-JD08 TIP, BENT CHISEL, 0.8mm/30 Degree x 6.3mm x 4.5mm, HD, FM-2031/2030
Price
In Stock
Type(Soldering)	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Style(Tip)	Bevel	Bevel	Conical	Conical	Bevel	Bevel	Chisel	Chisel	Chisel	Chisel	Chisel	Chisel	Chisel	Bent Chisel	Bent Chisel
Tip Diameter	5 MM	2 MM	0.2 MM	0.5 MM	3 MM	6 MM	0.8 MM	1.2 MM	1.6 MM	2.4 MM	3.2 MM	4.5 MM	5.2 MM	0.2 MM	0.8 MM
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Hakko T22-C5 Accessories

Choose a Category

for the Hakko T22-C5

Eclipse Tools 900-114 Static Mat - 48 inch X 24 inch

Catalog: 900-114

(2)

In Stock!

Add to Cart

MG Chemicals 824-450G Isopropyl Alcohol for Cleaning Electronics and Flux Removal

Catalog: 824-450G

(7)

In Stock!

Add to Cart

Eclipse Tools 902-109 Magnifier Workbench Lamp - White..with Bench Clamp

Catalog: 902-109

(2)

In Stock!

Add to Cart

Hakko T22-C5 Bevel Tip 5mm/45° x 10mm Heavy Duty

Bevel Tip
- 5mm/45 degrees x 10mm
Fast Thermal Recovery
- Allows users to select the cut surface size depending on the workpiece.
Built-in Patented Heating Element
- Used for drag soldering and pre-tinning of lead wires

Hakko T22-C5 5mm/45 degrees x 10mm Heavy Duty Bevel Tip

This type has a shape like a cone or column cut at a slant, which allows users to select the cut surface size depending on the workpiece. It is used for drag soldering and pre-tinning of lead wires.

Difference Between BC/C Type and BCF/CF Type

		Shape BC	Shape C
Difference	Shape	This type has a shape like a cone cut at a slant.	This type has a like a column cut at a slant.
	Heat capacity of tip	In Shape BC with its conical shape, the nearer to the base, the thicker the diameter. Therefore, although these types have the same diameter Φ1, Shape BC has more heat capacity.
Commonality	How to select tip size	Please select the cut surface size depending on the workpiece.
	Others	In case of a chip condenser, we recommend soldering it with Shape BC or C to form ideal solder fillet, which can be hardly formed with Shape B or D.

	BC/C shape	BCF/CF shape
Feature	Tips are tinned at the certain area of the tip end as following picture.	Tips are tinned at the surface only.
Recommend use	- For the heavy duty soldering.	- Components are dense.
Recommend use	If there is enough space between each components.	Easy to be bridging.

Soldering Equipment/Tips Template
Type(Soldering)	Standard
Style(Tip)	Bevel
Tip Diameter	5 MM
Length after Bend	10 MM
Bevel Angle	45 Degrees
Test Equipment General Attributes
Unique Features	Tip Shape: Bevel 5mm/45ø x 10mm, HD
Safety Approval	CE
Product Weight	0.10 LBS
Product Height	0.10 IN
Product Length	8.50 IN
Product Width	2.00 IN
Shipping Weight	1 LBS
Country of Origin	Japan
Shipping Height	0.10 IN
Shipping Length	8.50 IN
Shipping Width	2.00 IN
