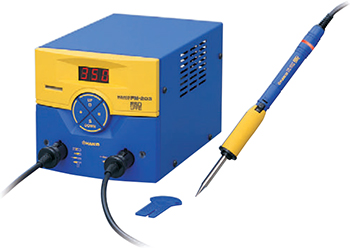

Hakko FM203-01 Dual Port Soldering System
A wide range of handpiece selection

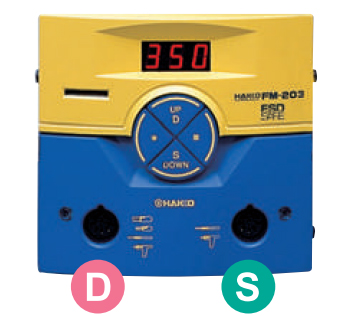

Figures of connectable handpieces are shown on the connectors as well as the indications of "Channel D" and "Channel S".
Buzzer ON/OFF setting is available
Whether to make the buzzer sound or not when an error occurs or a target temperature is reached is settable.
Power Save Function
A programmable sleep mode of 0-29 minutes or auto-power shut off at 30 minutes.
A single station plays multiple roles: Soldering, desoldering, and SMD rework
The Hakko FM-203 is a Dual Port high performance soldering station. Even when soldering lead-free solders the high performance allows lower operating temperatures. The soldering station can operate any of the following hand pieces, FM-2027 Soldering Iron, FM-2022 Parallel Remover (SMD tweezer), FM-2023 Mini Parallel Remover (SMD mini tweezer), FM-2024 Desoldering Module, and/or FM-2026 Nitrogen Soldering Iron. The soldering iron and desolder tool can be used in either or both ports and the tweezers are limited to one port with a soldering or desoldering iron in the other port.
The station features a programmable sleep mode of 0-29 minutes or auto-power shut off at 30 minutes. Sleep mode, auto power shut off and tip temperature can be programmed separately for each port. The sleep mode reduces the tip temperature to approximately 200ºC (400ºF) after the programmed time (0-29 minutes). The lower tip temperature will reduce oxidation of the tip and improve the tip performance. When in sleep mode the tip will quickly return to temperature after the iron is removed from the holder.
Two handpieces can be selected in various combinations
*This station is equipped with one HAKKO FM-2027 handpiece.
A wide range of handpiece selection
- Figures of connectable handpieces are shown on the connectors as well as the indications of "Channel D" and "Channel S".
Handpiece combination examples
| FM-2027 |
O |
O |
Yes |
| FM-2022 *1 |
O |
X |
No,
Either one of handpieces operates |
| FM-2023 *1 |
O |
X |
No,
Either one of handpieces operates |
| FM-2024 *2 |
O |
O |
Yes |
| FM-2026 *3 |
O |
O |
Yes |
| FM-2032 |
O |
O |
Yes |
*1 When the FM-2022 or FM-2023 is connected to the channel D connector, both channel connectors can't be used at the same time.
*2 When two FM-2024s are connected to the channel connectors, each FM-2024 must be connected to the desolder control box.
*3 For the FM-2026, each handpiece needs an n2 generator (HAKKO FX-780), flow meter (HAKKO FX-791), compressor, regulator, etc.
Poweful thermal recovery performance

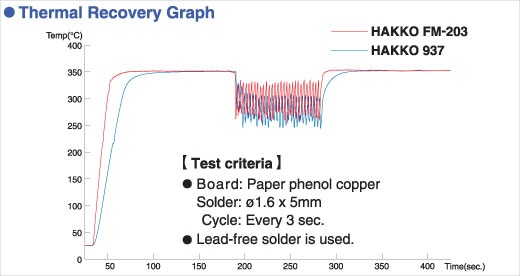

- See how much its thermal recovery is improved by using a composite tip
![Hakko_FM203_Poweful_Thermal_Recovery]()
Power save function
While the handpiece is being placed on the iron holder (HAKKO FH-200), the sleep function is activated and decreases the temperature of tip on the holder up to approximately 200°C , preventing the tip from being oxidized. In addition, this function can relieve the load applied to the tip due to the high-temperature settings required for lead-free soldering.
- Auto power shut-off function

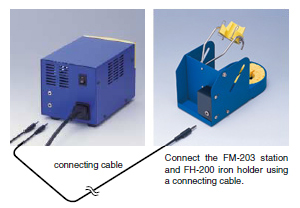

By connecting the iron holder (HAKKO FH-200) and station with the connecting cable, the auto power shut-off function is activated in the same manner as the sleep function.
![Hakko_FM203_Power_Save_Function]()
Combined use with an optional handpiece (HAKKO FM-2026, etc.) enables use of the N2 system
Buzzer ON/OFF setting is available
Whether to make the buzzer sound or not when an error occurs or a target temperature is reached is settable.
Difference between BC/C type and BCF/CF type
| Feature: |
Tips are tinned at the certain area of the tip end as following picture. |
Tips are tinned at the surface only. |
| Recommend use: |
- For the heavy duty soldering.
- If there is enough space between each components. |
- Components are dense.
- Easy to be bridging. |
| Preview: |
![Hakko_FM203_BC/C_Shape]() |
![Hakko_FM203_BCF/CF_Shape]() |
