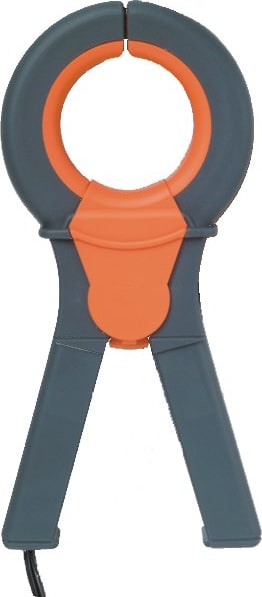

HT Instruments HT97U AC Transducers Current Clamp Meter up to 1000A

Name: HT Instruments HT97U AC Transducers Current Clamp Meter up to 1000A
Brand: HT Instruments
SKU: HT InstrumentsHT97U
Price: 495.00 USD
Availability: InStock

0 reviews | UPC: 8033100184945 | Model: HT Instruments HT97U

Compare

Transducer for AC currents 0 10 - 0 100 - 0 1000 A AC

AC current measurement with 10-100-1000A ranges
Range selector included
Maximum output signal: 1VAC
Output connector type Hypertac

View Product Details

Your Price: $495.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	HT Instruments HT97U Transducer for AC currents 0 10 - 0 100 - 0 1000 A AC	HT Instruments HT96U Transducer for AC currents (including leakage current) 0 1 - 0 100 - ...	HT Instruments HT98U Transducer for AC/DC currents 0 1000 A AC/DC
Price
In Stock
Type (Current Clamp Adaptors	CT	CT	CT
Maximum Current AC	1000 A	1000 A	1000 A
Maximum Conductor Size	2.12 IN	2.12 IN	2.04 IN
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

HT Instruments HT97U Accessories

Choose a Category

Line Splitters

for the HT Instruments HT97U

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

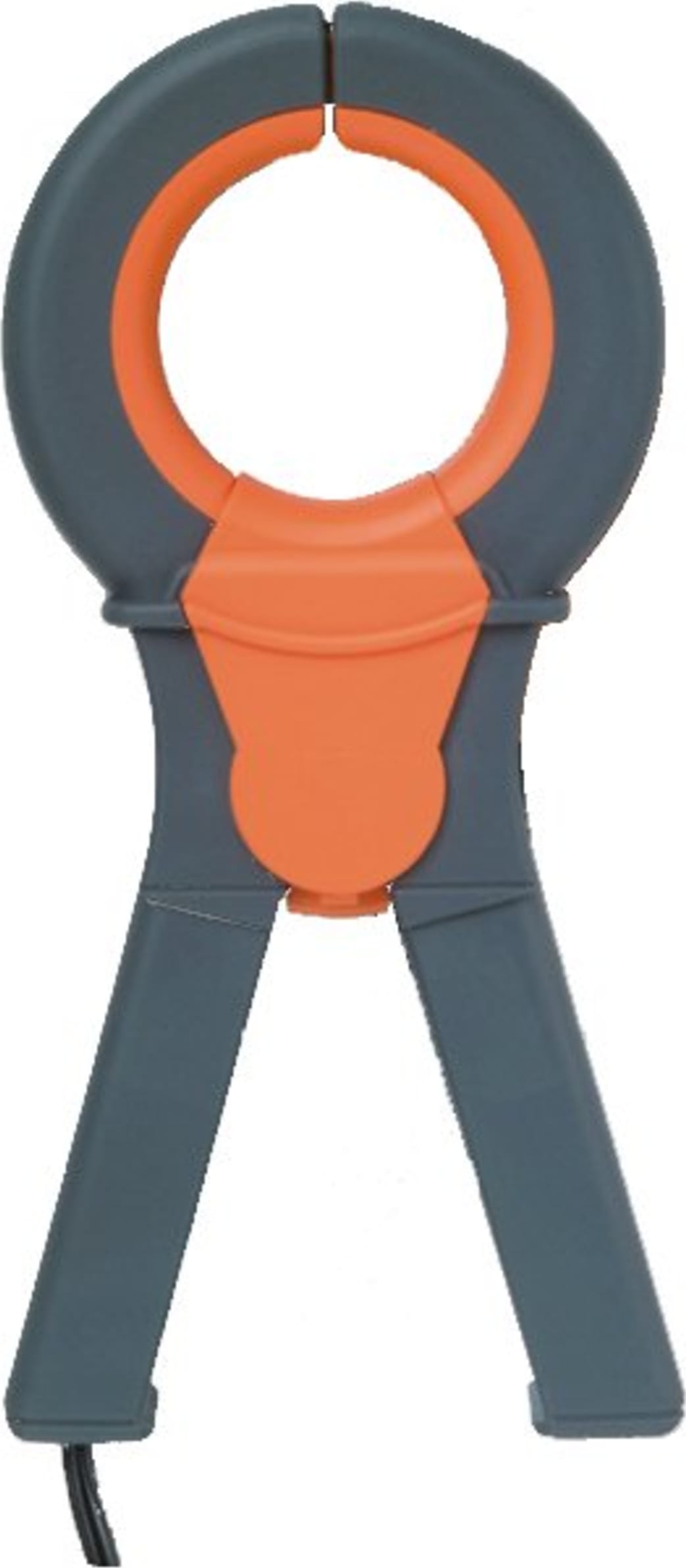

HT Instruments HT97U AC Transducers Current Clamp Meter up to 1000A

HT-Instruments-HT97U_Instrumentconnection

Rigid clamp 10-100-1000A AC, diameter 54mm

AC current measurement with 10-100-1000A ranges. Range selector included. Maximum output signal: 1VAC. Output connector type Hypertac.

Standards
EMC 2004/108/CE Directive
CE MARK
LVD 2006/95/CE Directive

Ranges selector 10-100-1000A

HT Instruments HT97U Accuracy
10A FS	0.1 ÷ 0.5A	0.5 ÷ 2.0A	2.0 ÷ 10A
Accuracy % of output signal	±(2%rdg + 4mV)	±(2%rdg + 4mV)	±(0.5%rdg + 5mV)
Phase error [°]	not specifie	10	5
100A FS	0.1 ÷ 1A	1 ÷ 20A	20 ÷ 100A
Accuracy % of output signal	±(2%rdg + 3mV)	±(1%rdg + 2mV)	±(1%rdg + 2mV)
Phase error [°]	2	1	1
1000A FS	1 ÷ 10A	10 ÷ 200A	200 ÷ 1000A
Accuracy % of output signal	±(1%rdg + 1mV)	±(1%rdg + 1mV)	±(1%rdg + 1mV)
Phase error [°]	1	1	0.5
Measurements performed with digital instrument, model 1.200.000 digits class 0.2 Cofrac traceable

HT Instruments HT97U TECHNICAL SPECIFICATIONS
Primary rates current	10A, 100A, 1000A FS
Measuring range:	0,1 ÷ 10A / 0.5A ÷ 100A / 1A ÷ 1000A
Output signal:	1V
Protection	By diodes
Ratio	100mV/A – 10mV/A and 1mV/A
Accuracy	See table
Max error	2% (of reading)
Internal load	10A=100Ω; 100A=10Ω; 1000A=1Ω
External min load	100 times the internal load
Power measurement	Take care to keep the conventional direction P1 ⇒ P2 rear of the arrows
Frequency range	40Hz to 10000 Hz
Pollution degree:	2 according to IEC 1010-1
Dielectric strength:	5,5 KV 50 Hz 1 min
Temperature range	-10 ÷ +50 °C
Overvoltage category	CAT III 600V
“Opening” cable	54 mm
"Opening" bus bars	35x35mm or 50x12mm
"Opening" bus bars	35x35mm or 50x12mm
Dimensions (mm):	105 x 225 x 31mm
Weight:	720g
Output connection	Shielded cable FM2R 2m long , ended with a FRB D01 connector

Tech Specs

Clamp Meters/Current Clamp Adaptors / Current Clamps Template
Type (Current Clamp Adaptors	CT
Maximum Current AC	1000 A
Maximum Conductor Size	2.12 IN
Test Equipment General Attributes
Safety Approval	CE
Product Weight	720 GRAMS (1.59 LBS)
HTS/Schedule B Number	90303330
ECCN Number	8.0331E+12
Country of Origin	France
