HT Instruments HT96U AC Transducer Clamp Meter 1-100-1000A/1V

Name: HT Instruments HT96U AC Transducer Clamp Meter 1-100-1000A/1V
Brand: HT Instruments
SKU: HT InstrumentsHT96U
Price: 495.00 USD
Availability: InStock

0 reviews | UPC: 8033100184938 | Model: HT Instruments HT96U

HT Instruments HT96U AC Transducer Current Clamp Meter up to 1000A

Compare

Transducer for AC currents (including leakage current) 0 1 - 0 100 - 0 1000A AC

AC current measurement with 1-100-1000A ranges
Range selector included
Maximum output signal: 1VAC
Output connector type Hypertac

View Product Details

Your Price: $495.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	HT Instruments HT96U Transducer for AC currents (including leakage current) 0 1 - 0 100 - ...	HT Instruments HT97U Transducer for AC currents 0 10 - 0 100 - 0 1000 A AC	HT Instruments HT98U Transducer for AC/DC currents 0 1000 A AC/DC
Price
In Stock
Type (Current Clamp Adaptors	CT	CT	CT
Maximum Current AC	1000 A	1000 A	1000 A
Maximum Conductor Size	2.12 IN	2.12 IN	2.04 IN
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

HT Instruments HT96U Accessories

Choose a Category

Line Splitters

for the HT Instruments HT96U

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

HT Instruments HT96U AC Transducer Current Clamp Meter up to 1000A

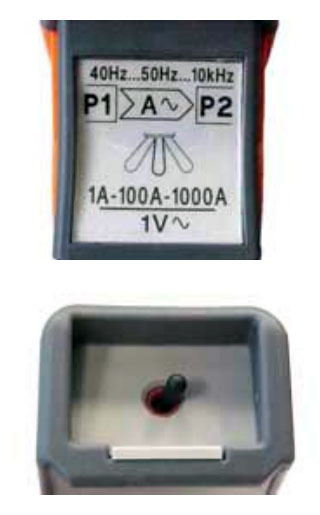

HT-Instruments-HT96U_Instrumentconnection

Rigid clamp 1-100-1000A AC, diameter 54mm

AC current measurement with 1-100-1000A ranges. Range selector included. Maximum output signal: 1VAC. Output connector type Hypertac.

Standards
EMC 2004/108/CE Directive
CE MARK
LVD 2006/95/CE Directive

Ranges selector 1-100-1000A

HT Instruments HT96U Accuracy
1A FS	1 ÷ 100mA	100 ÷ 500mA	500mA ÷ 1.2A
Precision in % of the output signal	±(3%rdg+0.5mV)	±(2%rdg+1mV)	±(1%rdg+1mV)
Phase difference			<10 degrees
100A FS	100mA ÷ 1A	1 ÷ 10A	10 ÷ 120A
Precision in % of the output signal	±(1%rdg+1mV)	±(0.5%rdg+0.5mV)	±(0.5%rdg)
Phase difference		2 degrees	1 degrees
1000A FS	1 ÷ 10A	10 ÷ 100A	100 ÷ 1200A
Precision in % of the output signal	±(1%rdg+0.5mV)	±(0.5%rdg+1mV)	±0,5%rdg
Phase difference		1.5 degrees	1 degrees
Measurements performed with digital instrument, model 1.200.000 digits class 0.2 COFRAC traceable.

HT Instruments HT96U TECHNICAL SPECIFICATIONS
Primary rates current	1A, 100A, 1000A FS
Measuring range:	0.001÷1.2A, 0.1÷120A, 1A ÷ 1200A
Output ratio:	1V
Accuracy	1% and 0,5%
Max error	2% (of reading)
Internal load	1A=3kΩ; 100A=15Ω; 1000A=1.5Ω
External min load	100 times the internal load
Frequency range	40Hz ÷ 100Hz
Pollution degree:	2 according to IEC 1010-1
Dielectric strength:	5,5KV 50Hz 1min
Temperature range	-10° ÷ +50°C
Power supply:	1 x 9V battery type 6LR61
Overvoltage category	CAT III 600V
Temperature range:	-5°C ÷ +50°C
"Opening” cable	83 (bars 100x64 or 122x54)
"Opening" bus bars	35x35mm or 50x12mm
Dimensions (mm):	105 x 225 x 31mm
Weight:	720g
Power measurement	Take care to keep the conventional direction P1 ⇒ S1 rear of the arrows
Output connection	Shielded cable FM2R 2m long , ended with a FRB D01 connector

Tech Specs

Clamp Meters/Current Clamp Adaptors / Current Clamps Template
Type (Current Clamp Adaptors	CT
Maximum Current AC	1000 A
Maximum Conductor Size	2.12 IN
Test Equipment General Attributes
Safety Approval	CE
Product Weight	720 GRAMS (1.59 LBS)
HTS/Schedule B Number	90303330
ECCN Number	8.0331E+12
Country of Origin	France
