HT Instruments HT9022 Clamp-On Power Quality Analyzer with Bluetooth Connection

Name: HT Instruments HT9022 Clamp-On Power Quality Analyzer with Bluetooth Connection
Brand: HT Instruments
SKU: HT InstrumentsHT9022
Price: 1045.00 USD
Availability: InStock

0 reviews | Model: HT Instruments HT9022

Images (4) | Videos (2)

Compare

Clamp-on power quality analyzer with Bluetooth connection

DC, AC + DC TRMS current up to 1000A
DC, AC + DC TRMS voltage up to 1000V
Resistance and continuity test
Frequency with test leads
Frequency with jaws
Phase sequence / 1 wire phase correlation
DC Power
Active, Reactive, Apparent power on Single phase systems
Active, Reactive energy on Single phase systems
Power Factor on Single phase systems
Harmonic voltage/current up to 25th with THD% calculation

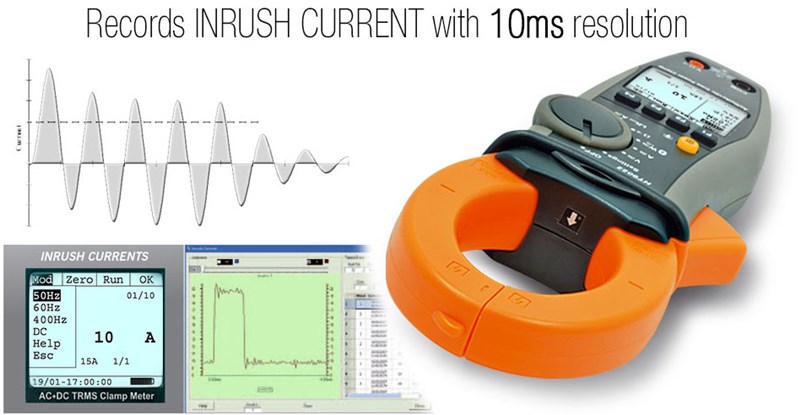

Inrush current
Data logger with programmable IP
Autoranging
Backlight
Auto Power OFF
Data HOLD
MAX/MIN/CREST
PC connection via Bluetooth
Connection with iOS\Android devices
CAT IV 600V

View Product Details

List Price: $1,045.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Line Splitters
Software

for the HT Instruments HT9022

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

HT Instruments TOPVIEW2006 Software on CD-ROM and optical-to-USB connection cable C2006

Catalog: TOPVIEW2006

(0)

In Stock!

Add to Cart

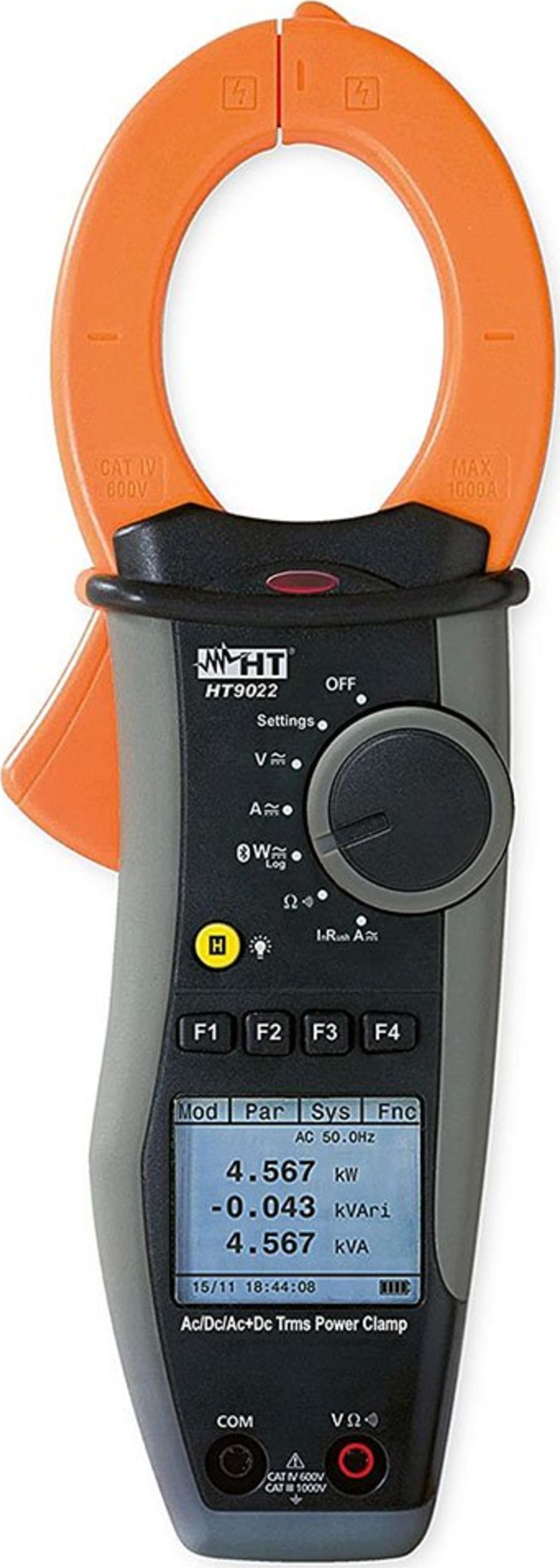

HT Instruments HT9022 Clamp-On Power Quality Analyzer with Bluetooth Connection

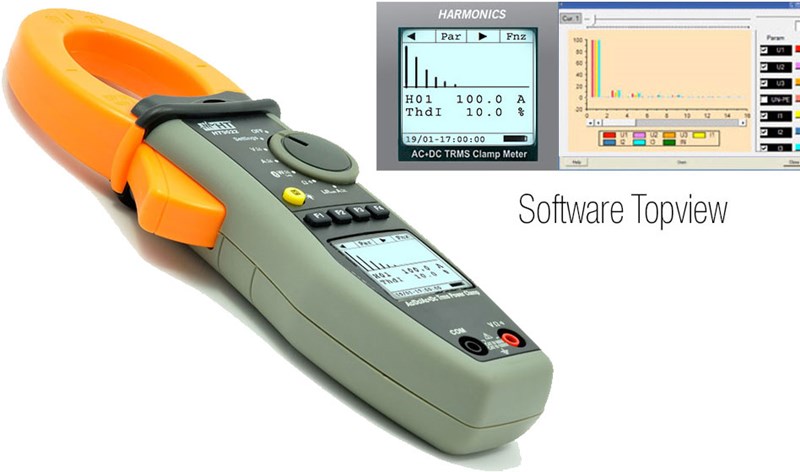

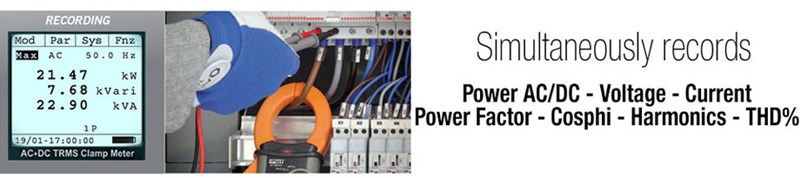

AC/DC true rms Clamp meter with power quality analyzer function and Bluetooth connection with iOS\Android devices - CAT IV HT9022 is a combination of a power quality analyzer, a phase sequence/conformity detector, a clamp meter and a voltage detector in one single handy device. The advanced design of HT9022 ensures reliable and accurate measurements under a wide range of operating conditions. HT9022 is the ideal instrument for troubleshooting power quality problems, calculating power factor correctors, recording energy consumption, recording DC power, etc. Unlike the data loggers that take snapshots of the electrical parameters in regular intervals, losing what happens between an interval and the next, HT9022 continuously records all electrical parameters as a true power quality analyzer. The internal memory enables long-term recording for further download to (and analysis at) a PC, and iOS\Android smartphone via Bluetooth connection. HT9022 is flexible and portable to grant the user the most reliable measurements with an easy-to-use interface.

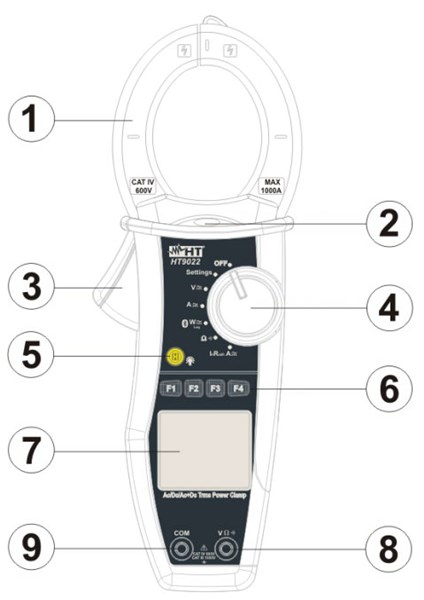

	Instrument Description LEGEND: Inductive clamp jaw AC voltage indicator LED Jaw trigger Rotary selector switch Key H / backlight Function keys F1 – F2 – F3 – F4 LCD display Input terminal Input terminal COM Standards EMC 2004/108/CE Directive CE MARK LVD 2006/95/CE Directive

HT Instruments HT9022 Technical Specifications
Accuracy is calculated as [% rdg + (number of dgt) x resolution]. It is referred to 23°C ± 5°C, <80%RH
ELECTRICAL SPECIFICATIONS
DC Voltage	0.5 ÷ 99.9V
(AC+DC) TRMS Voltage	0.5 ÷ 999.9V
AC/DC Voltage – MAX/MIN/CREST	0.5 ÷ 999.9V
DC Current	0.5 ÷ 999.9A
AC (AC+DC) TRMS Current	0.5 ÷ 999.9A
AC/DC Current – MAX/MIN/CREST	0.5 ÷ 999.9A
Resistance and Continuity test	0.0Ω ÷ 59.9kΩ
Frequency with test leads and jaws	-10.0 ÷ 99.9Hz - 100 ÷ 400Hz
DC Power	0.00 ÷ 99.99kW - 100.0 ÷ 999.9kW
Active, Reactive, Apparent Power	0.00 ÷ 99.99 - 100.0 ÷ 999.9 [kW, kVAR, KVA]
Active, Reactive Energy	0.00 ÷ 99.99 - 100.0 ÷ 999.9 [kWh, kVARh]
Power Factor	0.20 ÷ 1.00

GENERAL SPECIFICATIONS
Characteristics of radio module
Radio	Bluetooth V2.0
Frequency	2.4 GHz (2400-2483.5MHz)
Power	Class 2
Data rate	57600 baud
Memory
Internal memory	2Mbytes
Recordings
N°. max Log + Snapshot stores	99
N°. max InRush stores	20 (each with max 10 events)
Mechanical characteristics
Dimensions (L x W x H)	252 (L) x 88 (W) x 44 (H) mm; 9.92 x 3.46 x 1.73 in
Weight (including battery)	approx 420g; 14.8 ounces
Max conductor size	45mm; 1.77 in
Power Supply
Battery type	2 batteries x 1.5V LR 03 AAA
Battery life	approx. 53 hours of use in “W ” position
Auto power OFF	5 min. with enabled function The display shows the following symbol
Display
Characteristics	graphic display 128x128 pixels
Updating frequency	128 samples per period (base sampling)
Conversion mode	1/s
Climatic conditions
Reference calibration temperature	23° ± 5 °C
Operating temperature	0 ÷ 40 °C
Allowable relative humidity	< 80%
Storage temperature	-20 ÷ 60 °C (-4°F ÷ 140°F)
Storage humidity	-10 ÷ 60 °C
Safety Standards
Compliant with Standards	IEC / EN61010-1, IEC / EN61010-2 – 032
Technical documentation	IEC/EN61187
Safety of measuring accessories	IEC/EN61010-31
Insulation	Class 2, double insulation
Insulation	Class 2, double insulation
Pollution level	2
Max height	2000m, indoor use
Overvoltage category	CAT IV 600V / CAT III 1000V to earth, max 1000V between inputs

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	Yes
Maximum Current AC	1000 A
Maximum Current DC	1000 A
Maximum Voltage AC	1000 V
Maximum Voltage DC	1000 V
Maximum Conductor Size	45 MM (1.77 IN)
Resistance	Yes
Capacitance	No
Auto Ranging/Manual	Auto Ranging
In-Rush Current	Yes
Test Equipment General Attributes
Unique Features	Full Power Quality Analysis Bluetooth Connectivity to Andriod Devices Harmonics up to 25th harmonic
Safety Approval	CE
Product Weight	420 GRAMS (0.926 LBS) Product Weight Including battery
Product Height	44 MM (1.73 IN)
Product Length	252 MM (9.92 IN)
Data Logging	Yes
HTS/Schedule B Number	90303330
ECCN Number	EAR99
Calibration Included	Factory Calibration
Battery Type	AAA
Power Supply Voltage	Battery Powered
Country of Origin	China
