HT Instruments HT9021 AC/DC TRMS Professional Clamp Meter up to 1000A

Name: HT Instruments HT9021 AC/DC TRMS Professional Clamp Meter up to 1000A
Brand: HT Instruments
SKU: HT InstrumentsHT9021
Price: 295.00 USD
Availability: InStock
Rating: 4.00 (2 reviews)

4 (2 Reviews) | UPC: 8033772791946 | Model: HT Instruments HT9021

Compare

Clamp meter 1000A AC/DC TRMS

TRMS measurement
DC/AC current up to 1000A
DC/AC voltage up to 1000V
“Voltsense” feature for AC voltage detection
Resistance
Continuity test with buzzer
Frequency with jaws and test leads
Capacitance
Diode test
Duty Cycle
Temperature with type K probe
Autorange
Data HOLD
MAX/MIN/ZERO
PEAK CURRENT (<10ms)
Backlight
Bargraph
Auto Power OFF

View Product Details

Your Price: $295.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	HT Instruments HT9021 Clamp meter 1000A AC/DC TRMS	HT Instruments HT9012 Digital AC Clamp 600A 2000 points CAT IV	HT Instruments HT9014 Clamp meter 600A AC TRMS	HT Instruments HT9015 Digital clamp AC/DC 600A TRMS 6000 counts CAT IV	HT Instruments HT9019 Clamp meter 1000A AC TRMS
Price
In Stock
True RMS	Yes	Yes	Yes	Yes	Yes
Maximum Current AC	1000 A	600 A	600 A	600 A	1000 A
Maximum Current DC	1000 A	N/A	N/A	600 A	N/A
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

HT Instruments HT9021 Accessories

Choose a Category

for the HT Instruments HT9021

HT Instruments 4324-2 2 90 Degrees banana professional test leads (red/black)

Catalog: 4324-2

(0)

In Stock!

Add to Cart

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

HT Instruments TK107 Type K probe for air and gas temperature

Catalog: TK107

(0)

In Stock!

Add to Cart

HT Instruments TK108 Type K probe for inner temperature of fluids and semisolid substances

Catalog: TK108

(0)

In Stock!

Add to Cart

HT Instruments TK109 Type K probe for inner temperature of fluids and solid substances

Catalog: TK109

(0)

In Stock!

Add to Cart

HT Instruments TK110 Type K probe for surface temperature

Catalog: TK110

(0)

In Stock!

Add to Cart

HT Instruments TK111 Type K probe for surface temperature with 90 Degrees fixed tip

Catalog: TK111

(0)

In Stock!

Add to Cart

HT Instruments 4413-2 2 90 Degrees banana professional test leads (red/black)

Catalog: 4413-2

(0)

In Stock!

Add to Cart

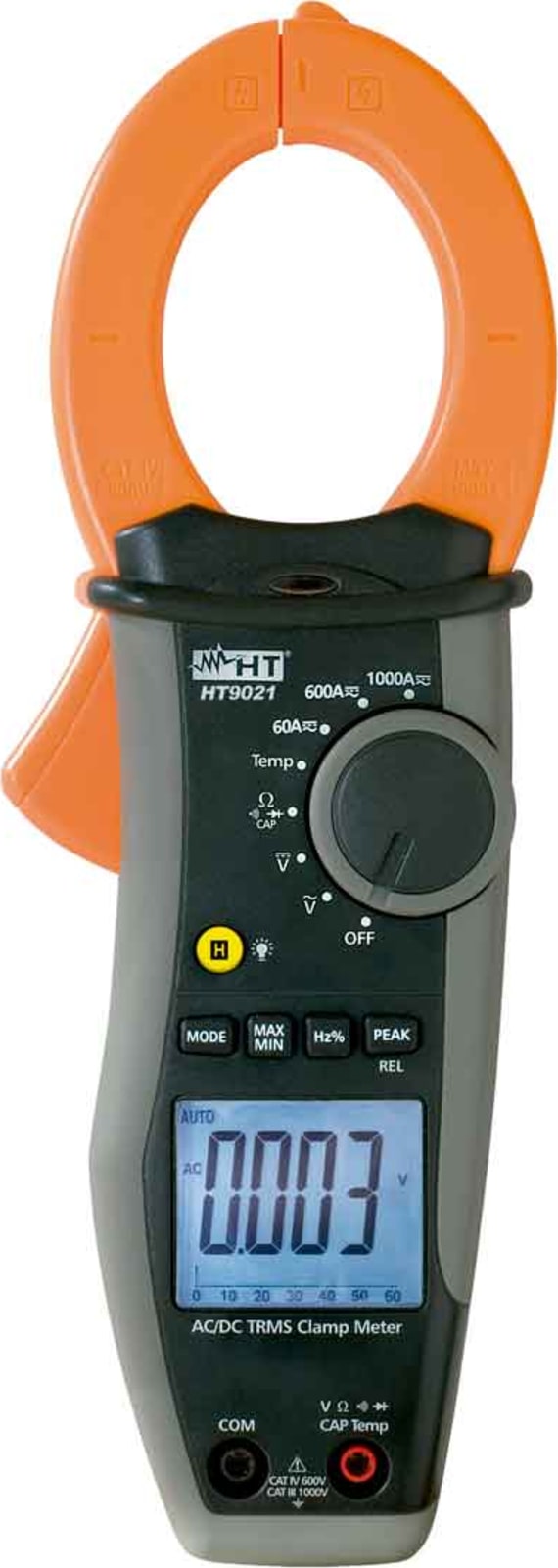

HT Instruments HT9021 AC/DC TRMS Professional Clamp Meter up to 1000A

AC/DC TRMS Clamp Meter 1000A, 6000 Points - CAT IV

HT9021 professional clamp meter is designed for DC/AC TRMS current measurement up to 1000A, and DC/AC voltage for achieve safety CAT IV 1000V according to IEC/EN61010-1 safety standard. The model have a large LCD 4 digit display (6000counts), with backlight and bar graph to more easy reading in critical environments. The model perform also resistance, continuity test, frequency, capacitance, diode test, duty cycle and temperature with type K probe measurements. The Autopower OFF feature is also available for the meter in order to preserve it’s internal battery charge.

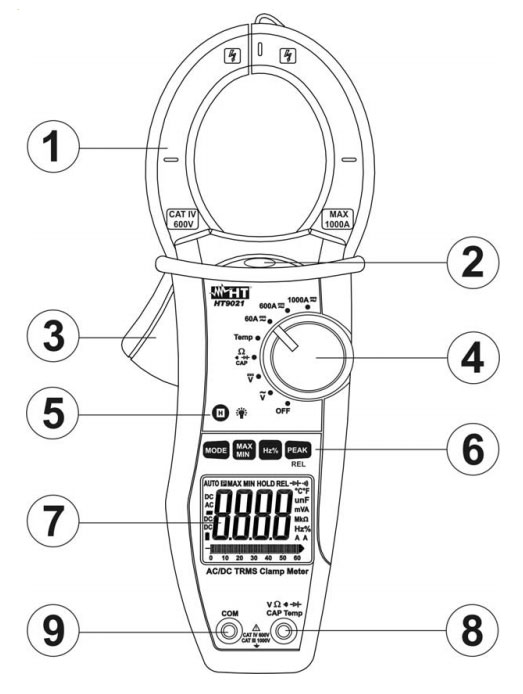

LEGEND:

Inductive clamp jaw
LED for AC voltage detection
Jaw trigger
Function selector
HOLD/ key
MODE, MAX/MIN, Hz%, PEAK/REL function keys
LCD display
CAP Temp input jack
COM input jack

STANDARD:

4413-2 : Couple of test leads
Adapter for type K probes
TK101 : Type K bead probe
Cordura Carry Case
Battery
User manual

OPTIONAL:

TK107 : Type K probe for air/gas temperature
TK108 : Type K probe for semi-solid substances temperature
TK109 : Type K probe for liquid temperature
TK110 : Type K probe for surface temperature
TK111 : Type K probe for surface temp. with 90 degree tip

HT Instruments HT9021 Technical Specifications
Accuracy is calculated as [% rdg + (number of dgt) x resolution]. It is referred to the following reference conditions: 18°C ÷ 28°C (65°F ÷ 83°F), < 75%RH
ELECTRICAL SPECIFICATIONS
DC Voltage (Autorange)	600.0mV - 1000V
AC Voltage TRMS (Autorange)	6.000V - 1000V
Resistance and Continuity test (Autorange)	600.0Ω - 60.00MΩ
DC Current	60.00A - 1000A
AC TRMS Current	60.00A - 1000A
Capacitance (Autorange)	40.00nF - 4000µF
Frequency with jaws (Autorange)	99.99Hz - 9.999kHz
Temperature with type K probe (Autorange)	-20.0°C ÷ 400.0°C - 752 ÷ 1400°F

GENERAL SPECIFICATIONS
Mechanical characteristics
Dimensions (L x W x H)	252 x 88 x 44mm ; 10 x 3 x 2 in
Weight (including battery)	442g (16 ounces)
Max conductor size	45mm (2 in)
Supply
Battery type	1 battery 9V NEDA 1604 IEC 6F22 JIS 006P
Battery life	about 200 hours.
Auto power OFF	after 15 minutes of idleness (not disabled)
Display
Characteristics	4 LCD (max 6000 counts), decimal point, unit symbol indication, bargraph and backlight
Sample rate	2 times/sec
Conversion mode	TRMS
Climatic conditions
Reference temperature	18°C ÷ 28°C (65°F ÷ 83°F)
Operating temperature	0 ÷ 40 °C (32°F ÷ 104°F)
Operating humidity	<75%RH
Storage temperature	-20 ÷ 60 °C (-4°F ÷ 140°F)
Storage humidity	<80%RH
Reference Standards
Comply with	IEC/EN 61010-1
Insulation	double insulation
Pollution	Level 2
For inside use, max height	2000m (6562 ft)
Installation category	CAT IV 600V, CAT III 1000V to ground,

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	Yes
Maximum Current AC	1000 A
Maximum Current DC	1000 A
Maximum Voltage AC	1000 V
Maximum Voltage DC	1000 V
Maximum Conductor Size	45 MM (1.77 IN)
Resistance	Yes
Capacitance	Yes
Auto Ranging/Manual	Auto Ranging
Test Equipment General Attributes
Unique Features	TRMS measurement DC/AC current up to 1000A DC/AC voltage up to 1000V
Safety Approval	CE
Product Weight	422 GRAMS (0.930 LBS) Product Weight Including battery
Product Height	44 MM (1.73 IN)
Product Length	252 MM (9.92 IN)
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	China
