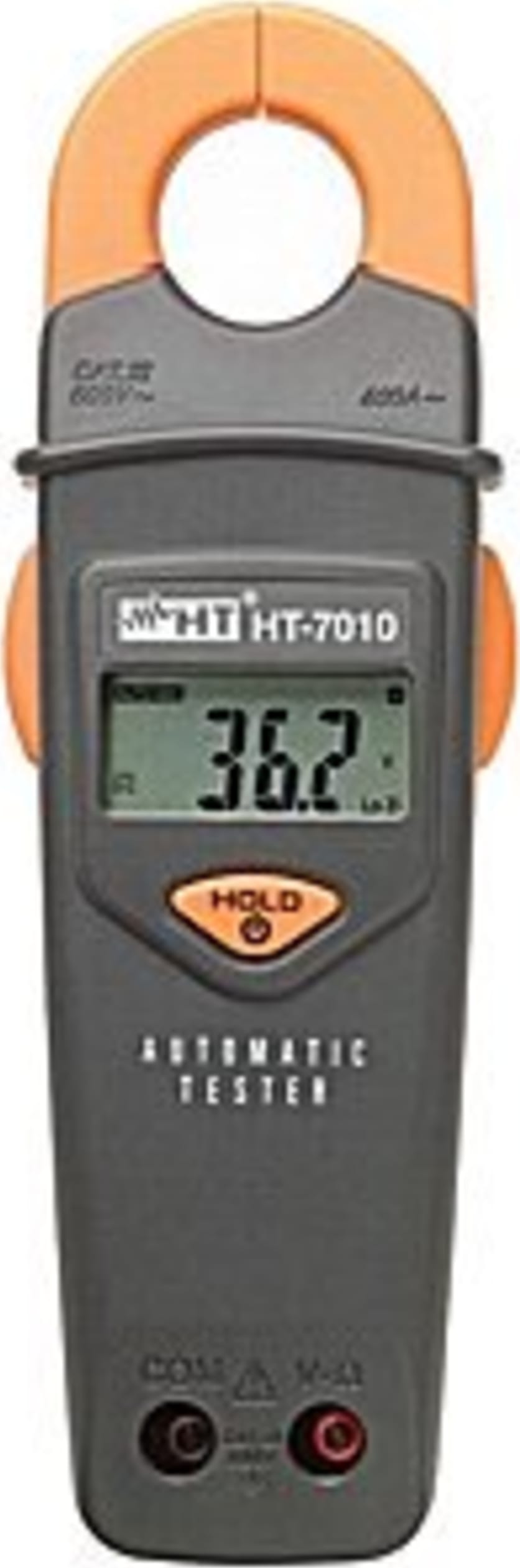

HT Instruments HT7010 Automatic Clamp Meter 400A AC

Name: HT Instruments HT7010 Automatic Clamp Meter 400A AC
Brand: HT Instruments
SKU: HT InstrumentsHT7010
Price: 309.00 USD
Availability: InStock

0 reviews | UPC: 8033100184792 | Model: HT Instruments HT7010

Compare

Automatic clamp 400A AC

AC current up to 400A
Voltage AC / DC to 600V
Resistance
Continuity test with buzzer
Recognition automatic measurement function
Autoranging
Retention of reading (Data Hold)
AUTO
Regulations: CE - EN 61010-1 - EN 61010-032

View Product Details

Your Price: $309.00

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	HT Instruments HT7010 Automatic clamp 400A AC	HT Instruments HT7011 Automatic digital clamp 200A AC
Price
In Stock
Maximum Current AC	400 A	200 A
Maximum Voltage AC	600 V	1000 V
Compare	Add to compare	Add to compare

Recommended for you

HT Instruments HT7010 Accessories

Choose a Category

for the HT Instruments HT7010

HT Instruments 5004-IECB Blue 20A alligator clip

Catalog: 5004-IECB

(0)

In Stock!

Add to Cart

HT Instruments 5004-IECN Black 20A alligator clip

Catalog: 5004-IECN

(0)

In Stock!

Add to Cart

HT Instruments 5004-IECV Green 20A alligator clip

Catalog: 5004-IECV

(0)

In Stock!

Add to Cart

HT Instruments 6007-IECN Black flexible 6A alligator pincer

Catalog: 6007-IECN

(0)

In Stock!

Add to Cart

HT Instruments 6007-IECR Red flexible 6A alligator pincer

Catalog: 6007-IECR

(0)

In Stock!

Add to Cart

HT Instruments C2001 Optical to RS232 serial cable

Catalog: C2001

(1)

In Stock!

Add to Cart

HT Instruments C2006 Optical serial cable-UsbA

Catalog: C2006

(0)

In Stock!

Add to Cart

HT Instruments C232NG1 RS232 serial cable

Catalog: C232NG1

(0)

In Stock!

Add to Cart

HT Instruments 6009-IECN Black rigid 20A alligator pincer

Catalog: 6009-IECN

(0)

In Stock!

Add to Cart

HT Instruments ABNACON Banana to Hypertac adapter

Catalog: ABNACON

(0)

In Stock!

Add to Cart

HT Instruments NOCANBA Hypertac to banana adapter

Catalog: NOCANBA

(0)

In Stock!

Add to Cart

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

HT Instruments 606-IECN (1) Magnetic adapter for connection to screw heads

Catalog: 606-IECN

(0)

In Stock!

Add to Cart

HT Instruments KIT4000A Kit including 2 test leads (black/red)

Catalog: KIT4000A

(0)

In Stock!

Add to Cart

HT Instruments 402-IECN Black safety test lead

Catalog: 402-IECN

(0)

In Stock!

Add to Cart

HT Instruments 402-IECR Red safety test lead

Catalog: 402-IECR

(0)

In Stock!

Add to Cart

HT Instruments 404-IECN Black safety test lead ( Diameter 4 mm)

Catalog: 404-IECN

(0)

In Stock!

Add to Cart

HT Instruments 404-IECR Red safety test lead ( Diameter 4 mm)

Catalog: 404-IECR

(0)

In Stock!

Add to Cart

HT Instruments 425 2 cables (black/red), 2 test leads (black/red), 2 pincers...

Catalog: 425

(0)

In Stock!

Add to Cart

HT Instruments 4312-2 2 straight banana professional test leads (red/black)

Catalog: 4312-2

(0)

In Stock!

Add to Cart

HT Instruments 44100 Basic kit for digital multimeters

Catalog: 44100

(0)

In Stock!

Add to Cart

HT Instruments 4413-2 2 90 Degrees banana professional test leads (red/black)

Catalog: 4413-2

(0)

In Stock!

Add to Cart

HT Instruments 44700 Basic kit for oscilloscopes

Catalog: 44700

(0)

In Stock!

Add to Cart

HT Instruments 4717-S-IEC100N BLACK retractable test lead with banana and 110cm cable

Catalog: 4717-S-IEC100N

(0)

In Stock!

Add to Cart

HT Instruments 4717-S-IEC100R RED retractable test lead with banana and 110cm cable

Catalog: 4717-S-IEC100R

(0)

In Stock!

Add to Cart

HT Instruments HT7010 Automatic Clamp Meter 400A AC

Clamp meter AC 400A with automatic selection of measurements.

The HT7010 model is a complete Autorange meter which makes it extremely easy to use, it will automatically select the type of measurement and right range of values. This reduces any mistakes which can damage the instrument and, therefore, the final user.

This clamp is used in the control of relatively low alternating currents and has a built-in HOLD function to freeze the reading on the LCD display.

The HT7010 clamp has an Auto PowerOff function to preserve the internal battery.

It can be used to clamp-on a conductor with the maximum size of 27 mm. It is extremely small but very functional and with test lead storage on the back of clamp, when the operator isn't executing any voltage measurements.

Specifications
ELECTRICAL SPECIFICATION
Accuracy is indicated as [% rdg + dgt]. It is referred to the following reference conditions: 23°C ± 5°C with RH < 80%
DC Voltage
Range	Resolution	Accuracy	Input impedance	Overload protection
1.8 ÷ 600.0V	0.1V	±(1.0% rdg + 2 dgt)	from 4kΩ if VIN ≤ 30V to 200kΩ if VI_N=600V	600Vrms AC
-0.6 ÷ -600.0V		±(1.0% rdg + 4 dgt)
Max operation time: 30s if V ≥ 30V

AC Voltage
Range	Resolution	Accuracy	Input impedance	Overload protection
0.00 ÷ 199.9V	0.1V	±(1.5%rdg + 5 dgt)	from 4kΩ if VIN ≤ 30V to 200kΩ if VI_N=600V	600Vrms AC
Max operation time: 30s if V ≥ 30V Frequency range: from 50 Hz to 500 Hz

AC Current
Range	Resolution	Accuracy	Input impedance	Overload protection
0.6 ÷ 400.0A	0.1V	±(1.8% rdg + 3 dgt)	50 - 60Hz	400Arms
Readings less than 50A: add ± 3 dgt to accuracy

Resistance and test continuity
Range	Resolution	Accuracy	Buzzer	Overload protection
0 ÷ 99.9Ω	0.1Ω	±(2.0% rdg + 10 dgt)	≤ 25Ω	600Vrms AC
100 ÷ 2000Ω	1Ω	±(2.0% rdg + 2 dgt)	≤ 25Ω	600Vrms AC
Max open voltage: 1.5V

GENERAL SPECIFICATIONS
Features
Auto Selection on ACV, DCV, ACA and Ohm Data Hold Auto power off Continuity Beeper
Supply
Battery type:	1 battery 9V NEDA 1604 IEC 6F22 JIS 006P
Low battery indication:	“+-” is displayed when the battery level is too low
Battery life:	about 250 hours
AutoPowerOff:	About 30 minutes after power-on
Display
Characteristics:	3 ¾ dgt (6000 counts) plus decimal point, unit symbol
Sample rate:	5 times/sec
Conversion mode:	Mean Value
Mechanical characteristics
Size:	198(L) x 66(La) x 46(H)mm
Weight (including battery):	about 260g
Jaws opening:	35mm
Max conductor size:	27mm
Climatic conditions
Reference temperature:	23° ± 5°C
Operating temperature:	0 ÷ 40 °C
Operating humidity:	< 75% RH
Storage temperature:	-20 ÷ 60 °C
Storage humidity:	< 80% RH
Safety standards
Comply with:	EN 61010-1
Insulation:	Class 2, Double insulation
Pollution:	Level 2
For inside use, max height:	2000m
Installation category:	CAT III 600V between inputs and to ground

Clamp Meters/Clamp Meters Template
Maximum Current AC	400 A
Maximum Voltage AC	600 V
Maximum Voltage DC	600 V
Maximum Conductor Size	1.37 IN
Resistance	Yes
Auto Ranging/Manual	Auto Ranging
Test Equipment General Attributes
Safety Approval	CE
Product Weight	0.57 LBS
Product Height	1.81 IN
Product Length	7.79 IN
Product Width	2.59 IN
Shipping Weight	1 LBS
HTS/Schedule B Number	90303330
ECCN Number	8.0331E+12
Battery Type	9v
Country of Origin	Taiwan
