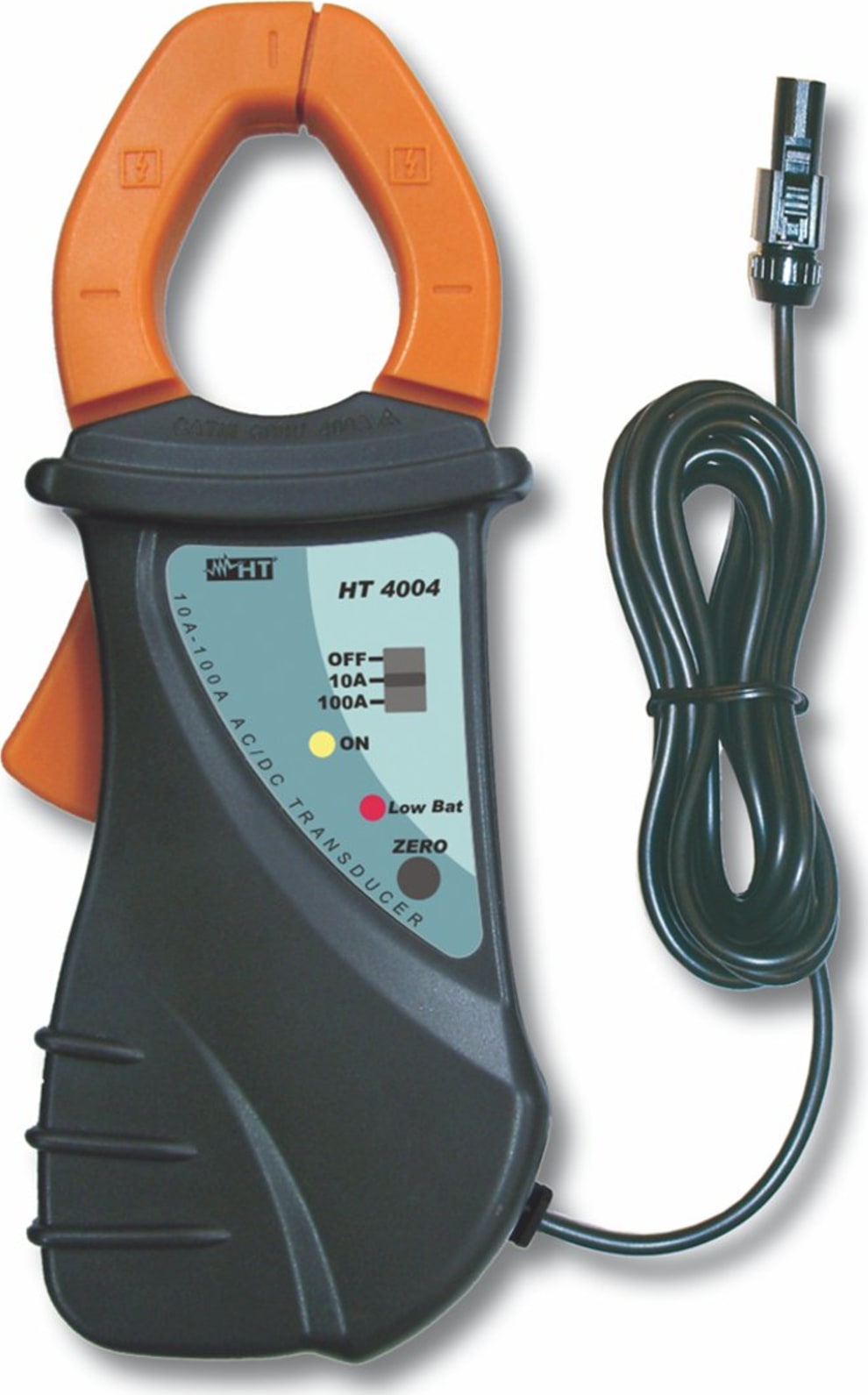

HT Instruments HT4004 AC/DC Transducer Rigid Clamp Meter up to 100A

Name: HT Instruments HT4004 AC/DC Transducer Rigid Clamp Meter up to 100A
Brand: HT Instruments
SKU: HT InstrumentsHT4004
Price: 325.00 USD
Availability: InStock

0 reviews | UPC: 8033100849592 | Model: HT Instruments HT4004

Compare

Transducer for AC/DC currents 0 10 - 0 100 A AC/DC

Measuring range: 0.1 ÷ 100 A
DC Precision: ± 1.5% of reading + 0.01A
AC Precision: ± 2.0% of reading + 0.5 A
Output Signal: 1 V AC / DC
Overvoltage Category: CAT III 600V
Max. Cable Diameter: 30 mm
Output Connection: Plug Hypertac
Range selector included
Manual zeroing of clamp
External power supply and low battery indicator

View Product Details

Your Price: $325.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	HT Instruments HT4004 Transducer for AC/DC currents 0 10 - 0 100 A AC/DC	HT Instruments HT4003 Transducer for AC currents 400A/0.4V - cable 2m - with banana connec ...	HT Instruments HT4005K Transducer for AC currents 0 200 A AC	HT Instruments HT4005N Transducer for AC currents 0 5 - 0 100 A AC
Price
In Stock
Type (Current Clamp Adaptors	CT	CT	CT	CT
Maximum Current AC	100 A	400 A	200 A	100 A
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

HT Instruments HT4004 Accessories

Choose a Category

Line Splitters

for the HT Instruments HT4004

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

HT Instruments HT4004 AC/DC Transducer Rigid Clamp Meter up to 100A

The flexible and non-flexible clamps for the current measurement up to 3000A AC and the probes for the brightness, temperature and humidity measurement. All have a voltage output with a maximum of 1V AC. These adapters can be used with any properly designed equipment type, precision multimeter, recorder and data logger.

Transducer clamp for AC currents 0.1A ÷ 100A AC/DC, Cable 2m - with Hypertac connectors. Measuring range: 0.1A ÷ 100A AC/DC, Output: 1V AC/DC, Over voltage category CAT III 600V, Max Cable Diameter: 30mm. (Clamp not suitable for power measurement).

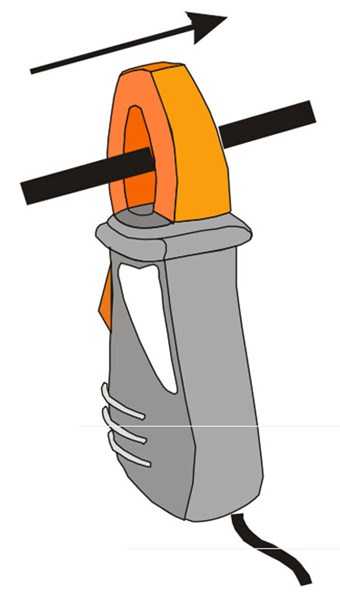

<-- Take care about Conventional Power Direction (see picture on side)

HT Instruments HT4004 TECHNICAL SPECIFICATIONS
Current range	Output signal	Accuracy DC Current	Accuracy AC Current (40Hz ÷ 1kHz)	Overload protection
0.1A ÷ 10A	10mV ÷ 1V	±(1.0%rdg+0.01A)	±(1.5%rdg+0.5A)	120Arms (max 60 sec)
1A ÷ 100A	10mV ÷ 1V	±(1.0%rdg+0.05A)	±(1.5%rdg+2A	120Arms (max 60 sec)
NOTE: The clamp introduce a phase error of about 3 degree which means an added error on AC power measurement of about 3%rdg (@ cos? = 0.866) and about 9%rdg (@ cos? = 0.5)

HT Instruments HT4004 GENERAL SPECIFICATIONS
Measuring range:	0.1A ÷ 100A AC/DC
Max output	1V AC/DC
Ratio:	0.1A /10mV AC/DC ; 1A/10mV AC/DC
Minimum external load:	10kΩ
Frequency range:	40Hz ÷ 5kHz
Pollution degree:	2
Safety:	IEC/EN61010-1
Working temperature:	-10 ÷ +50 °C
Storage temperature:	-10 ÷ +60 °C
Over voltage category:	CAT III 600V
Max diameter of cable:	30mm
Dimensions (L x W x H):	195 x 64 x 30mm
Max diameter of cable:	30mm
Weight (included battery):	300g
Output connector:	2 x 4mm Safety Banana Leads

Tech Specs

Clamp Meters/Current Clamp Adaptors / Current Clamps Template
Type (Current Clamp Adaptors	CT
Maximum Current AC	100 A
Maximum Current DC	100 A
Maximum Conductor Size	1.18 IN
Test Equipment General Attributes
Safety Approval	CE
Product Weight	200 GRAMS (0.441 LBS)
Product Height	35 MM (1.38 IN)
Product Length	175 MM (6.89 IN)
Product Width	70 MM (2.76 IN)
HTS/Schedule B Number	90303330
ECCN Number	8.0331E+12
Country of Origin	Taiwan
