HT Instruments HP30D1 DC Wide Transducers Clamp Meter up to 1000A

Name: HT Instruments HP30D1 DC Wide Transducers Clamp Meter up to 1000A
Brand: HT Instruments
SKU: HT InstrumentsHP30D1
Price: 2995.00 USD
Availability: InStock

0 reviews | UPC: 8033772795876 | Model: HT Instruments HP30D1

Compare

Transducer for AC/DC currents 0 1000 A AC/DC

DC current measurement with 1000A range
Maximum output signal: 1VDC
Output ratio: 1mV/A
Manual zeroing with trimmer
Test charging battery with LED indication
Output connector type Hypertac

View Product Details

Your Price: $2,995.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	HT Instruments HP30D1 Transducer for AC/DC currents 0 1000 A AC/DC	HT Instruments HP30C2 Transducer for AC currents 0 200 - 0 2000 A AC	HT Instruments HP30C3 Transducer for AC currents 0 3000 A AC
Price
In Stock
Type (Current Clamp Adaptors	CT	CT	CT
Maximum Conductor Size	3.26 IN	2.75 IN	2.75 IN
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

HT Instruments HP30D1 Accessories

Choose a Category

Line Splitters

for the HT Instruments HP30D1

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

HT Instruments HP30D1 DC Wide Transducers Clamp Meter up to 1000A

Rigid clamp with wide jaws up to 1000A DC

DC current measurement with 1000A range. Maximum output signal: 1VDC. Output ratio: 1mV/A. Manual zeroing with trimmer. Test charging battery with LED indication. Output connector type Hypertac.

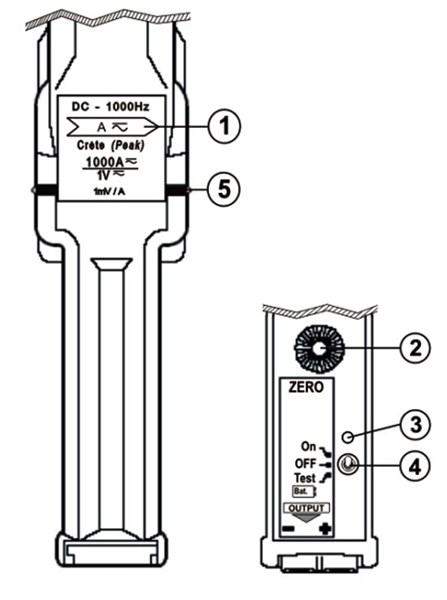

Instrument Description

LEGEND:

Arrow which shows the current reference direction
ZERO adjustment thumbwhee
Red LED indicator
ON/OFF and battery test selector
Indicate the limits of safe area for handling the clamp

Standards
EMC 2004/108/CE Directive
CE MARK
LVD 2006/95/CE Directive

HT Instruments HP30D1 TECHNICAL SPECIFICATIONS
Ambient temperature 18°C ± 5°C and condutctor centered in the torus
Primary rates current	1000A AC/DC FS
Measuring range:	10A ÷ 1000A
Output ratio:	1000/1 -> 1mV =1A
Accuracy (at 25°C):	±(10%rdg+ 2mV) from 10 to 100A ±(2%rdg + 2mV) from 100 to 700A ±(1.5%rdg + 2mV) from 700 to 1000A
Position cable sensitivity	0,5% at 50Hz
Temperature Coefficient:	0.1% of reading / 1°C
Load impedance:	>10kΩ e <100pF
Frequency range:	DC ÷ 1000Hz
Pollution degree:	2 comply with IEC/EN61010-1
Insulation:	Double insulation
Overvoltage category:	CAT III 600V
Power supply:	1 x 9V battery type 6LR61
Protection index:	IP20
Temperature range:	-5°C ÷ +50°C
Max diameter of cable (mm):	83 (bars 100x64 or 122x54)
Dimensioni (mm):	336(L) x 137(La) x 42(H)
Weight:	Ca 1.8kg
Output connector:	Hypertac connector

Tech Specs

Clamp Meters/Current Clamp Adaptors / Current Clamps Template
Type (Current Clamp Adaptors	CT
Maximum Current DC	1000 A
Maximum Conductor Size	3.26 IN
Test Equipment General Attributes
Product Weight	1.8 KILOS (3.97 LBS)
Product Height	42 MM (1.65 IN)
Product Length	336 MM (13.23 IN)
Product Width	137 MM (5.39 IN)
HTS/Schedule B Number	90303330
ECCN Number	8.03377E+12
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	France
