HT Instruments HP30C2 AC Transducer Clamp Meter up to 2000A

Name: HT Instruments HP30C2 AC Transducer Clamp Meter up to 2000A
Brand: HT Instruments
SKU: HT InstrumentsHP30C2
Price: 595.00 USD
Availability: InStock

0 reviews | UPC: 8033100184396 | Model: HT Instruments HP30C2

Compare

Transducer for AC currents 0 200 - 0 2000 A AC

Clamps standard AC

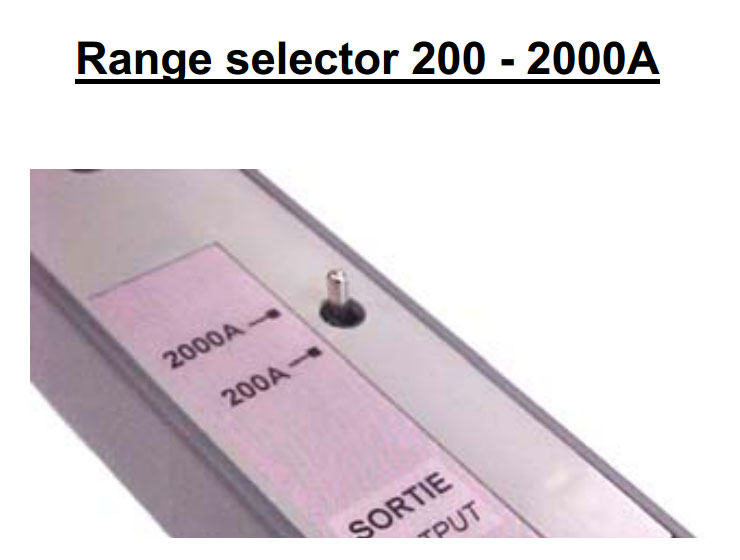

Scales: 200 / 2000A
Output signal: 1VCA
Overvoltage category: CAT III 600V
Maximum Cable diameter: 70mm
Dimensions jaw bar: 100x46mm
Output connector type Hypertac

View Product Details

Your Price: $595.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	HT Instruments HP30C2 Transducer for AC currents 0 200 - 0 2000 A AC	HT Instruments HP30C3 Transducer for AC currents 0 3000 A AC	HT Instruments HP30D1 Transducer for AC/DC currents 0 1000 A AC/DC
Price
In Stock
Type (Current Clamp Adaptors	CT	CT	CT
Maximum Conductor Size	2.75 IN	2.75 IN	3.26 IN
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

HT Instruments HP30C2 Accessories

Choose a Category

Line Splitters

for the HT Instruments HP30C2

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

HT Instruments HP30C2 AC Transducer Clamp Meter up to 2000A

Rigid clamp 200-2000A AC, diameter 70mm

Clamps standard AC. Scales: 200 / 2000A. Output signal: 1VCA. Overvoltage category: CAT III 600V. Maximum Cable diameter: 70mm. Dimensions jaw bar: 100x46mm. Output connector type Hypertac.

Standards

CE Mark
EMC 2004/108/CE Directive
LVD 2006/95/CE Directive

HT Instruments HP30C2 TECHNICAL SPECIFICATIONS
200A FS	1A	40A	200A
Precision in % of the output signal	±(1%rdg+1mV)	±1%rdg	±0.5%rdg
Phase difference	1°	40’	30’

200A FS	10A	400A	2000A
Precision in % of the output signal	±(1%rdg+0.5mV)	±1%rdg	±0,5%rdg
Phase difference	1°	40’	20’

HT Instruments HP30C2 GENERAL SPECIFICATIONS
Primary rates AC current	200A, 2000A
Measuring range	0.1A ÷ 200A / 1A ÷ 2000A
Output signal	1V AC
Protection	By diodes
Ratio	5mV/A and 0.5mV/A
External min load	10kΩ
Power measurement	Keep the conventional direction P1 -> P2 rear of the arrows
Frequency range	40Hz ÷ 5kHz
Pollution degree	2 according to IEC 1010-1
Dielectric strength	5.5kV/ 50Hz 1min
Temperature range	-10 ÷ +50 °C
Overvoltage category	CAT III 600V n
Max diameter cable	70mm
"Opening" bus bars	100x46mm o 126x35mm
Dimensioni (mm)	133 x 336 x 52 mm
Weight	1.7 Kg
Output connector	Cable 2m with Hypertac connector

Tech Specs

Clamp Meters/Current Clamp Adaptors / Current Clamps Template
Type (Current Clamp Adaptors	CT
Maximum Current AC	2000 A
Maximum Conductor Size	2.75 IN
Test Equipment General Attributes
Product Weight	1.7 KILOS (3.75 LBS)
HTS/Schedule B Number	90303330
ECCN Number	8.0331E+12
Country of Origin	France
