HOBO by Onset ZW-005-EU Temperature/Relative Humidity Data Node

Name: HOBO by Onset ZW-005-EU Temperature/Relative Humidity Data Node
Brand: HOBO by Onset
SKU: HOBOZW-005-EU
Price: 298.25 USD
Availability: InStock

0 reviews | Model: HOBO by Onset ZW-005-EU

Compare

Wirelessnode, ext t/rh, analogpulse EU

Wirelessly transmits real-time data
Compact size for easy deployment wherever data is needed
Accepts a wide range of external energy and environmental sensors
Notifies you of alarm conditions via email or text messages
Onboard buffer memory helps prevent data loss
Powerful HOBOware® Pro software for organizing and viewing data (included with HOBO data receiver)
Environment:
The ZW-005-EU is for use in Indoor environments
Measurements:
The ZW-005-EU supports the following measurements:
Temperature, Relative Humidity, 4-20mA, AC Current, AC Voltage, Air Velocity , Carbon Dioxide, Compressed Air Flow, DC Current, DC Voltage, Differential Pressure, Gauge Pressure, Kilowatt Hours (kWh), Kilowatts (kW), Pulse Input, Volatile Organic Compound, Water Flow

View Product Details

List Price: $299.00

Your Price: $298.25

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

HOBO by Onset ZW-005-EU Accessories

Choose a Category

for the HOBO by Onset ZW-005-EU

HOBO by Onset AC-SENS-1 12V 400mA sensor AC power adapter

Catalog: AC-SENS-1

(0)

In Stock!

Add to Cart

HOBO by Onset CABLE-2.5-STEREO 0 to 2.5Vdc input adapter cable

Catalog: CABLE-2.5-STEREO

(0)

In Stock!

Add to Cart

HOBO by Onset CABLE-4-20MA 4-20 mA input adapter cable

Catalog: CABLE-4-20MA

(0)

In Stock!

Add to Cart

HOBO by Onset CABLE-ADAP10 0 to 10Vdc input adapter cable

Catalog: CABLE-ADAP10

(0)

In Stock!

Add to Cart

HOBO by Onset CABLE-ADAP5 0 to 5Vdc input adapter cable

Catalog: CABLE-ADAP5

(0)

In Stock!

Add to Cart

HOBO by Onset CABLE-TEMP/RH replacement T/RH cable for ZW-005, -007

Catalog: CABLE-TEMP/RH

(0)

In Stock!

Add to Cart

HOBO by Onset NIST-SETUP set up charge per logger

Catalog: NIST-SETUP

(0)

In Stock!

Add to Cart

HOBO by Onset NIST-TEMP-POINT Standard certification point "The HOBO by Onset...

Catalog: NIST-TEMP-POINT

(0)

In Stock!

Add to Cart

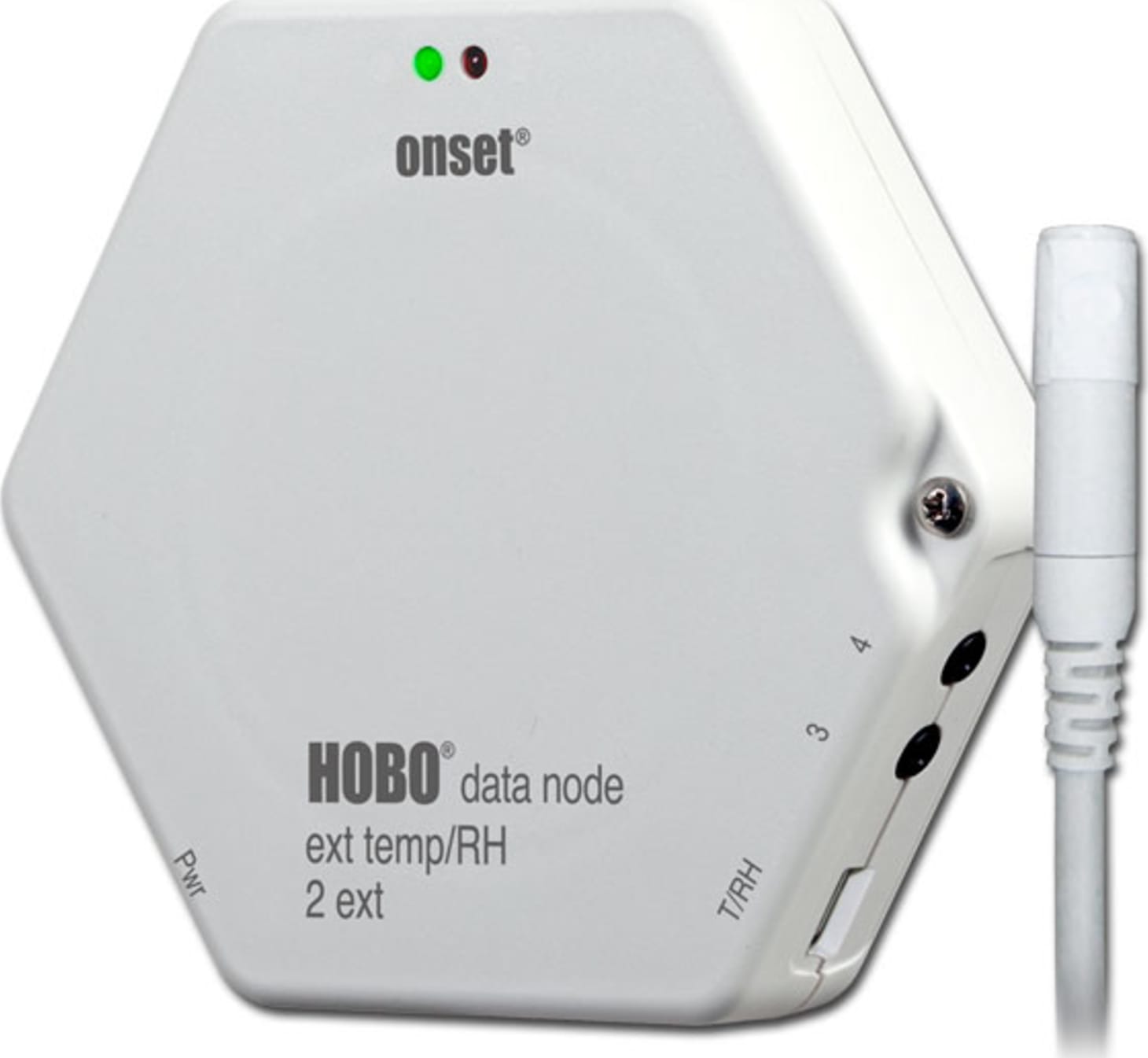

The HOBO® ZW-005-EU is an easy-to-deploy, 4-channel wireless temperature/relative humidity data node. It includes an external 2m temperature/relative humidity sensor probe, and features one analog port, and one pulse input port. It wirelessly transmits data in real time, reducing the costs and inconvenience associated with manual data offload.

A complete system requires at least one wireless HOBO data node, HOBO data receiver (ZW-RCVR), and HOBOware Pro software (included with ZW-RCVR). Depending on your system deployment, a HOBO data router (ZW-ROUTER) may be required.

IMPORTANT: This HOBO data logger requires HOBOware software and a communications device.

Buffer memory	3k measurements
Sample rate	1 min to 18 hrs
Transmission rate	2 min and greater
Power options	AC power adapter, Battery Backup
Measurement range
Temp	-40° to 70° C (-40° to 158° F)
RH	5 to 95% RH
Analog channels	0 to 2.5 Vdc; 0 to 5 Vdc (w/CABLE-ADAP5); 0 to 10 Vdc (w/ CABLE-ADAP10)
4-20 mA Pulse channel	0 to 65,535 pulses per logging interval
Accuracy
Temp	± 0.2° C over 0 to 50° C (0.36° F over 32° to 122° F)
RH	± 2.5% from 10 to 90% typical, max. +/- 3.5%
Analog	± 1.544 mV plus 2 % (typical)
Operating Range
Temp	-20 to 50°C (-4 to 122°F) when battery powered, -20 to 70°C (-4 to 158°F) when line powered
RH	5%-95% non-condensing
Resolution
Temp	0.02° C @ 25° C (0.04° F @ 77° F)
RH	0.03%Analog channel: 0.6 mV
Pulse Channel	1 pulse
Response Time
Temp	5 min. in air moving 1m/sec (3.3 ft./sec)
RH	10 min. in air moving 1 m/sec (3.3ft/sec)
Range	Approx. 100m (300ft.) depending on obstructions or interference
Weight	138g (4.87 oz) with batteries
Dimensions	96.5 x 108 x 28mm (3.8 x 4.25x 1.1 in)
Radio Power	1.6 mW (2 dBm)
Wireless data Standard	IEEE802.15.4 2.4 GHz band

Tech Specs

Test Equipment General Attributes
Unique Features	Wirelessly transmits real-time data Compact size for easy deployment wherever data is needed Accepts a wide range of external energy and environmental sensors Notifies you of alarm conditions via email or text messages Onboard buffer memory helps prevent data loss
Product Weight	138 GRAMS (0.3042 LBS)
Product Height	3.8 IN
Product Length	4.25 IN
Product Width	1.1 IN
Data Logging	Yes
Calibration Included	NIST Calibration
Country of Origin	United States
