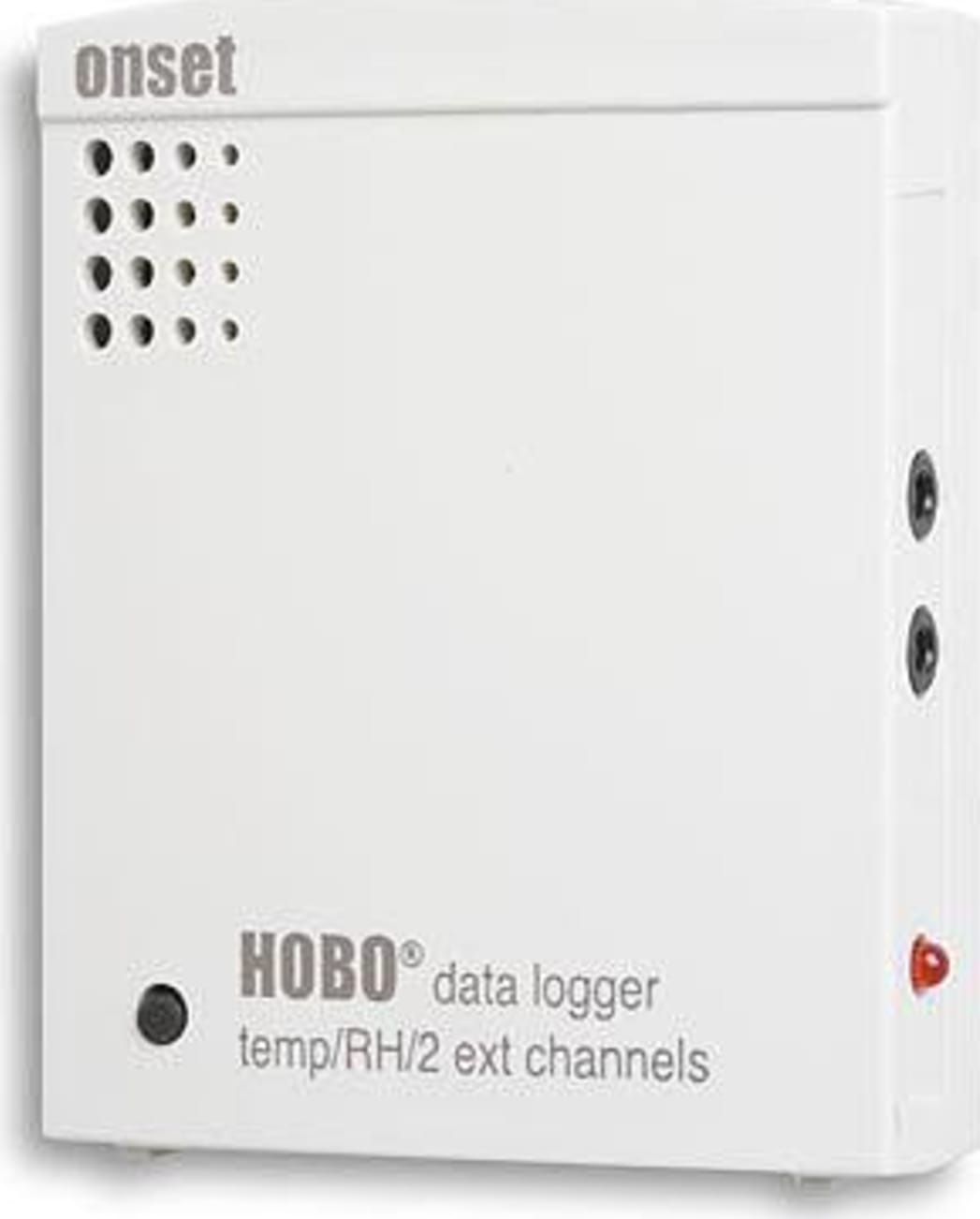

HOBO by Onset U12-013 Temperature/Relative Humidity/2 External Channel Data Logger

Name: HOBO by Onset U12-013 Temperature/Relative Humidity/2 External Channel Data Logger
Brand: HOBO by Onset
SKU: HOBOU12-013
Price: 139.65 USD
Availability: InStock

0 reviews | Model: HOBO by Onset U12-013

Compare

HOBO U12 Temp/RH 2EXT

12-bit resolution provides high accuracy
Large memory for long-term deployments or fast sampling
Programmable and push button start
Direct USB interface for fast data offload
Compatible with Onset’s HOBO U-Shuttle for convenient data transport
Compatible with HOBOware and HOBOware Pro for logger setup, graphing and analysis
Environment:
The U12-013 Data Logger is for use in Indoor environments
Measurements:
The U12-013 Data Logger supports the following measurements (some sensors sold separately):
Temperature, Relative Humidity, 4-20mA, AC Current, AC Voltage, Air Velocity , Carbon Dioxide, Compressed Air Flow, DC Current, DC Voltage, Gauge Pressure, Kilowatts (kW), Volatile Organic Compound

View Product Details

List Price: $140.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the HOBO by Onset U12-013

HOBO by Onset HRB-TEMP-1 Replacement batteries (Pack of 5)

Catalog: HRB-TEMP-1

(0)

In Stock!

Add to Cart

HOBO by Onset CABLE-4-20MA 4-20 mA input adapter cable

Catalog: CABLE-4-20MA

(0)

In Stock!

Add to Cart

HOBO by Onset CABLE-USBMB USBMB Cable

Catalog: CABLE-USBMB

(0)

In Stock!

Add to Cart

HOBO by Onset CASE-PELICAN-1510 Pelican Case, Black with foam

Catalog: CASE-PELICAN-1510

(0)

In Stock!

Add to Cart

HOBO by Onset BHW-PRO-CD HOBO by Onset HOBOware BHW-PRO-CD Pro Mac/Win Data Logger...

Catalog: BHW-PRO-CD

(4)

In Stock!

Add to Cart

HOBO by Onset NIST-SETUP set up charge per logger

Catalog: NIST-SETUP

(0)

In Stock!

Add to Cart

HOBO by Onset NIST-TEMP-POINT Standard certification point "The HOBO by Onset...

Catalog: NIST-TEMP-POINT

(0)

In Stock!

Add to Cart

The HOBO U12-013 data logger has a built in temperature and relative humidity sensor along with 2 external channels for a wide range of energy and environmental sensors. This product can store up to 43,000 measurements of 12-bit resolution readings.

IMPORTANT: This HOBO data logger requires HOBOware software and a communications device.

Measurement range
Temperature	-20° to 70°C (-4° to 158°F)
RH	5% to 95% RH
Analog channels	0 to 2.5 Vdc (w/CABLE-2.5-STEREO); 0 to 5 Vdc (w/CABLE-ADAP5); 0 to 10 Vdc (w/ CABLE-ADAP10); 4-20 mA (w/CABLE-4-20MA)
Accuracy
Temperature	± 0.35°C from 0° to 50°C (± 0.63°F from 32° to 122°F), see Plot A
RH	±2.5% from 10% to 90% RH (typical), to a maximum of ±3.5%, see Plot B
External input channel (see sensor manual)	± 2 mV ± 2.5% of absolute reading
Resolution
Temperature	0.03°C at 25°C (0.05°F at 77°F), see Plot A
RH	0.03% RH
Sample Rate
1 second to 18 hours, user selectable
Drift
Temperature	0.1°C/year (0.2°F/year)
RH	<1% per year typical; RH hysteresis 1%
Time accuracy
± 1 minute per month at 25°C (77°F), see Plot C
Response time in airflow of 1 m/s (2.2 mph)
Temperature	6 minutes, typical to 90%
RH	1 minute, typical to 90%
Operating temperature
Logging	-20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)
Launch/readout	0° to 50°C (32° to 122°F), per USB specification
Battery life	1 year typical use
Memory	64K bytes (43,000 12-bit measurements)
Weight	46 g (1.6 oz)
Dimensions	58 x 74 x 22 mm (2.3 x 2.9 x 0.9 inches)
The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)

Tech Specs

Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Humidity Dataloggers Template
Max Temperature	70 C
Min Temperature	-20 C (-4 F)
Power Source	Battery
Battery Life	1 HR
# Inputs/Channels	2
SAMPLE RATE/Intervals	1 second to 18 hours, user selectable
Accuracy	Temperature: ± 0.35°C from 0° to 50°C (± 0.63°F from 32° to 122°F) RH: ±2.5% from 10% to 90% RH (typical), to a maximum of ±3.5%
Test Equipment General Attributes
Unique Features	12-bit resolution provides high accuracy Large memory for long-term deployments or fast sampling Programmable and push button start Direct USB interface for fast data offload Compatible with Onset’s HOBO U-Shuttle for convenient data transport Compatible with HOBOware and HOBOware Pro for logger setup, graphing and analysis
Safety Approval	CE
Interfaces I/O	USB
Product Weight	46 GRAMS (0.1014 LBS)
Product Height	2.3 IN
Product Length	2.9 IN
Product Width	0.9 IN
Data Logging	Yes
Battery Type	Other
Power Supply Voltage	Battery Powered
Country of Origin	United States
Shipping Height	1.25 IN
Shipping Length	3.55 IN
Shipping Width	2.55 IN
