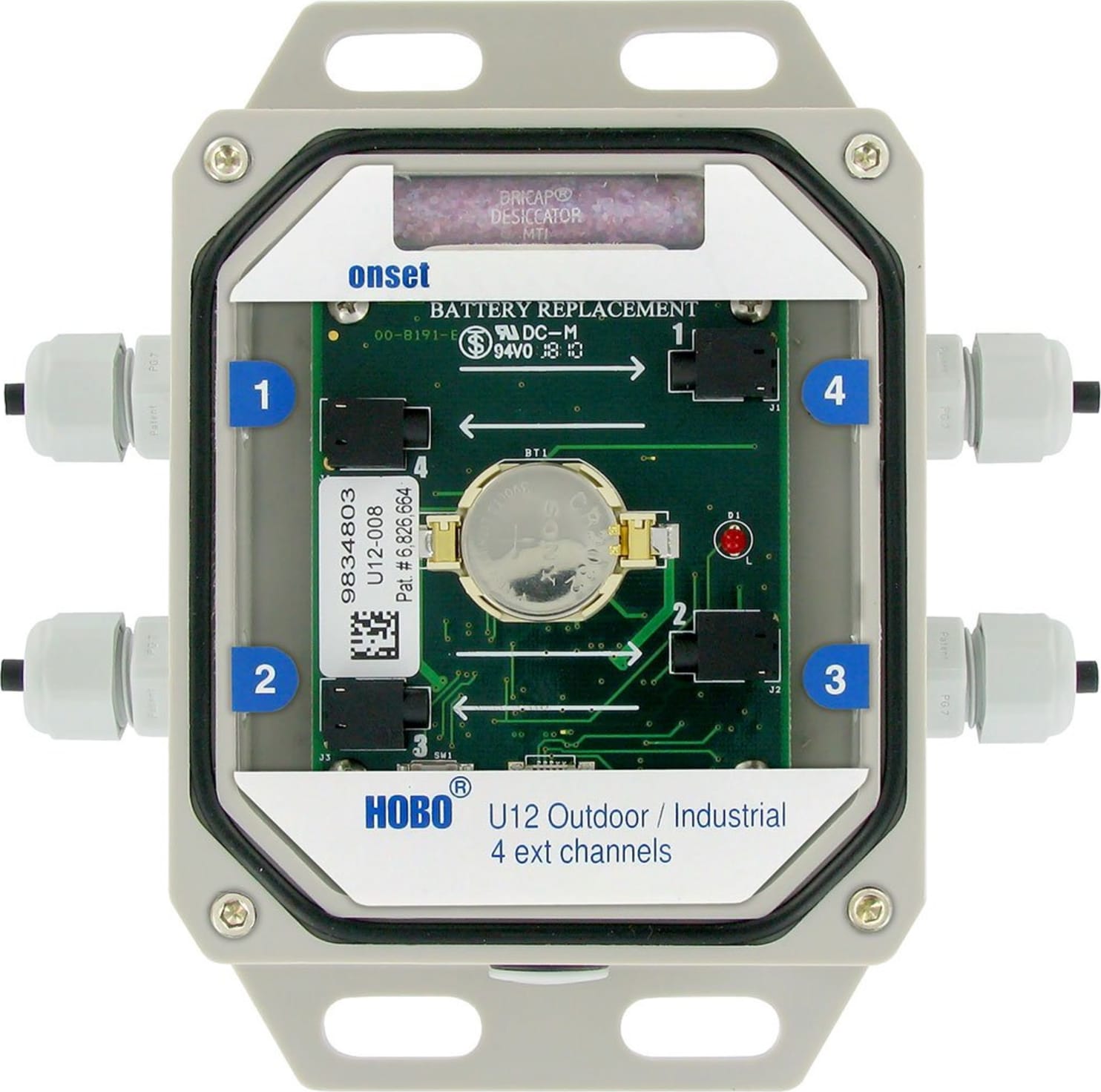

HOBO by Onset U12-008 4-Channel External Data Logger

Name: HOBO by Onset U12-008 4-Channel External Data Logger
Brand: HOBO by Onset
SKU: HOBOU12-008
Price: 248.38 USD
Availability: InStock

0 reviews | Model: HOBO by Onset U12-008

Compare

HOBO U12 4-Channel Outdoor External

Weatherproof enclosure
12-bit resolution provides high accuracy
Programmable and push-button start
Direct USB interface for fast data offload
Compatible with Onset’s HOBO U-Shuttle for convenient data transport
Compatible with HOBOware and HOBOware Pro for logger setup, graphing and analysis
Environment:
The U12-008 Data Logger is for use in Indoor and Outdoor environments
Measurements:
The U12-008 Data Logger supports the following measurements (sensors sold separately):
Temperature, 4-20mA, AC Current, AC Voltage, Air Velocity, Carbon Dioxide , Compressed Air Flow, DC Current, DC Voltage, Gauge Pressure, Kilowatts (kW), Volatile Organic Compound

View Product Details

List Price: $249.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the HOBO by Onset U12-008

HOBO by Onset HRB-TEMP-1 Replacement batteries (Pack of 5)

Catalog: HRB-TEMP-1

(0)

In Stock!

Add to Cart

HOBO by Onset CABLE-4-20MA 4-20 mA input adapter cable

Catalog: CABLE-4-20MA

(0)

In Stock!

Add to Cart

HOBO by Onset CABLE-USBMB USBMB Cable

Catalog: CABLE-USBMB

(0)

In Stock!

Add to Cart

HOBO by Onset CASE-PELICAN-1510 Pelican Case, Black with foam

Catalog: CASE-PELICAN-1510

(0)

In Stock!

Add to Cart

HOBO by Onset 85-DOMEPLUG Dome Plugs to Access Serial Comm Port

Catalog: 85-DOMEPLUG

(0)

In Stock!

Add to Cart

HOBO by Onset 85-ORING-14 O-ring for 85-DOMEPLUG

Catalog: 85-ORING-14

(0)

In Stock!

Add to Cart

HOBO by Onset DESIC-PACK Replacement Desiccant pack for Outdoor/Industrial data...

Catalog: DESIC-PACK

(0)

In Stock!

Add to Cart

HOBO by Onset H8X4-BK H8/U12 Outdoor Indust Serv kit (inc batt

Catalog: H8X4-BK

(0)

In Stock!

Add to Cart

HOBO by Onset BHW-PRO-CD HOBO by Onset HOBOware BHW-PRO-CD Pro Mac/Win Data Logger...

Catalog: BHW-PRO-CD

(4)

In Stock!

Add to Cart

HOBO by Onset NIST-SETUP set up charge per logger

Catalog: NIST-SETUP

(0)

In Stock!

Add to Cart

HOBO by Onset NIST-TEMP-POINT Standard certification point "The HOBO by Onset...

Catalog: NIST-TEMP-POINT

(0)

In Stock!

Add to Cart

Employ multiple energy and environmental sensors, ranging from amps to temperature, with the HOBO U12-008 data logger. It's weatherproof enclosure allows the U12-008 to be flexible to deploy inside or outdoors. The HOBO U12-008 memory stores 43,000 measurements of 12-bit resolution readings.

IMPORTANT: This HOBO data logger requires HOBOware software and a communications device.

Analog channels	0 to 2.5 Vdc (w/CABLE-2.5-STEREO); 0 to 5 Vdc (w/CABLE-ADAP5); 0 to 10 Vdc (w/ CABLE-ADAP10); 4-20 mA (w/CABLE-4-20MA)
Accuracy (logger only)	± 2 mV ± 2.5% of absolute reading ± 2 mV ± 1% of reading for data logger-powered sensors
Resolution	0.6mV
Sample Rate	1 second to 18 hours, user selectable
Time accuracy	± 1 minute per month at 25°C (77°F), see Plot A
Operating range	-20 to 70°C (-4° to 158°F) Weatherproof case tested to NEMA 6 standard
Operating temperature
Logging	-20° to 70°C (-4° to 158°F)
Launch/readout	0° to 50°C (32° to 122°F), per USB specification
Battery life	1 year typical use
Memory	64K bytes (43,000 12-bit measurements)
Weight	200 g (7 oz)
Dimensions	140 x 137 x 32 mm (5.5 x 5.38 x 1.25 inches)
The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)

Tech Specs

Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ
Max Temperature	70 C
Min Temperature	-20 C (-4 F)
Power Source	Battery
Battery Life	1 HR
# Inputs/Channels	4
SAMPLE RATE/Intervals	1 second to 18 hours, user selectable
Accuracy	± 2 mV ± 2.5% of absolute reading ± 2 mV ± 1% of reading for data logger-powered sensors
Test Equipment General Attributes
Safety Approval	CE
Interfaces I/O	USB
Product Weight	200 GRAMS (0.441 LBS)
Product Height	5.5 IN
Product Length	5.38 IN
Product Width	1.25 IN
Data Logging	Yes
Battery Type	Other
Power Supply Voltage	Battery Powered
Country of Origin	United States
Shipping Height	1.55 IN
Shipping Length	6.50 IN
Shipping Width	6.20 IN
