HOBO by Onset TMC6-HE - 6 temp sensor, bolt-on/pipe mt kit

Name: HOBO by Onset TMC6-HE - 6 temp sensor, bolt-on/pipe mt kit
Brand: HOBO by Onset
SKU: HOBOTMC6-HE
Price: 68.83 USD
Availability: InStock

0 reviews | Model: HOBO by Onset TMC6-HE

Compare

6 temp sensor, bolt-on/pipe mt kit

Faster response time
Suitable for pipe mounting
Accessories included
Can be plugged directly into the external input jacks of U12, UX120, or ZW Family loggers to expand the range of measurement options and applications.
Accuracy and resolution vary according to attached logger model
Measurement range is -40° to 100°C (-40° to 212°F)
Response time is 3 minutes typical to 90% in air moving 1m/sec (2.2mph)
Sensor is attached to a 1.8m (6ft) cable

View Product Details

List Price: $69.00

Your Price: $68.83

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

HOBO by Onset TMC6-HE

Faster response time
Accuracy and resolution vary according to attached logger model
Measurement range is -40° to 100°C (-40° to 212°F)
Response time is 3 minutes typical to 90% in air moving 1m/sec (2.2mph)
Sensor is attached to a 1.8m (6ft) cable

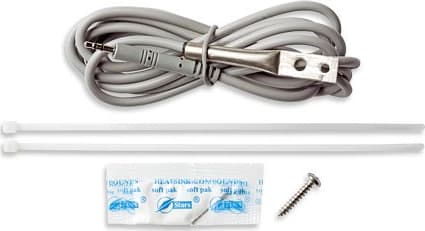

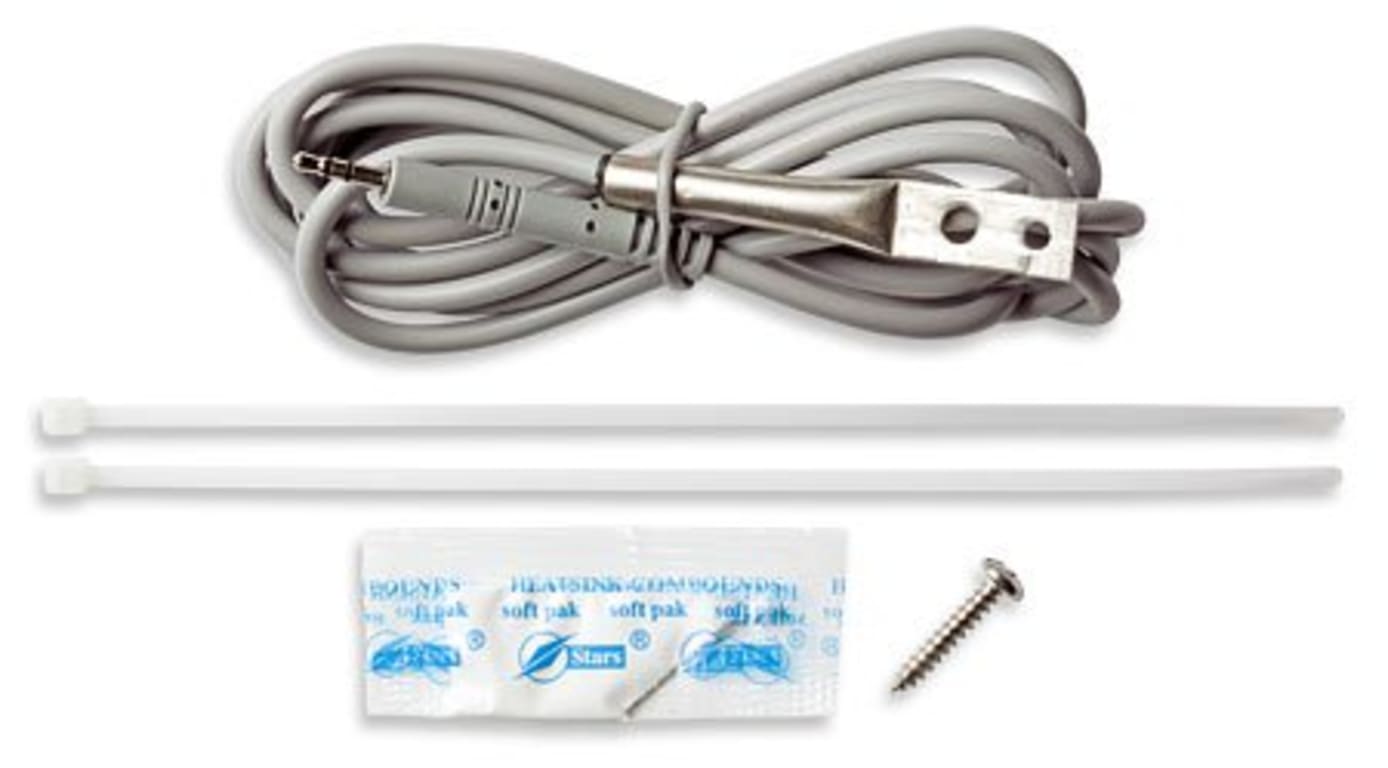

6 temp sensor, bolt-on/pipe mt kit

A faster response version of our TMC6-HD complete with a plated copper sensor probe that can be mounted to a pipe or flat surface. The sensor is packaged with its own accessories for either strapping to a pipe or attaching to a flat surface. For use with HOBO U-Series, UX120-006M external-channel data loggers or ZW series wireless data nodes.

Environment:

The TMC6-HE Sensor is for use in Indoor environments.

Measurements:

The TMC6-HE Sensor supports the following measurements:Temperature.

Measurement Range	-40° to 50°C (-40° to 122°F); -40° to 100°C (-40° to 212°F)
Accuracy
w/U12	±0.25°C from 0° to 50°C (±0.45°F from 32° to 122°F), insert probe 2.3 cm (0.9 inches) minimum; see Plot A
w/ZW	±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), insert probe 2.3 cm (0.9 inches) minimum; see Plot B
w/UX120-006M	±0.15°C from 0° to 70°C (±0.27°F from 32° to 158°F), insert probe 2.3 cm (0.9 inches) minimum; see Plots C & D
Resolution
w/U12	0.03° at 20°C (0.05° at 68°F); see Plot A
w/ZW	0.02°C at 25°C (0.04°F at 77°F); see Plot B
w/UX120-006M	0.002° at 25°C (0.003° at 77°F); see Plots C & D
Drift	<0.1°C (<0.2°F) per year
Response time in air	3 min. typical to 90% in air moving 1 m/sec (2.2 mph)
Response time in stirred water	15 sec. typical to 90%.
Housing	Copper-plated sensor tip
Dimensions	0.9 x 5.8 cm (0.38 x 2.30 inches)
Cable length	1.8m (6 feet)
Weight	34 g (1.1 oz)
