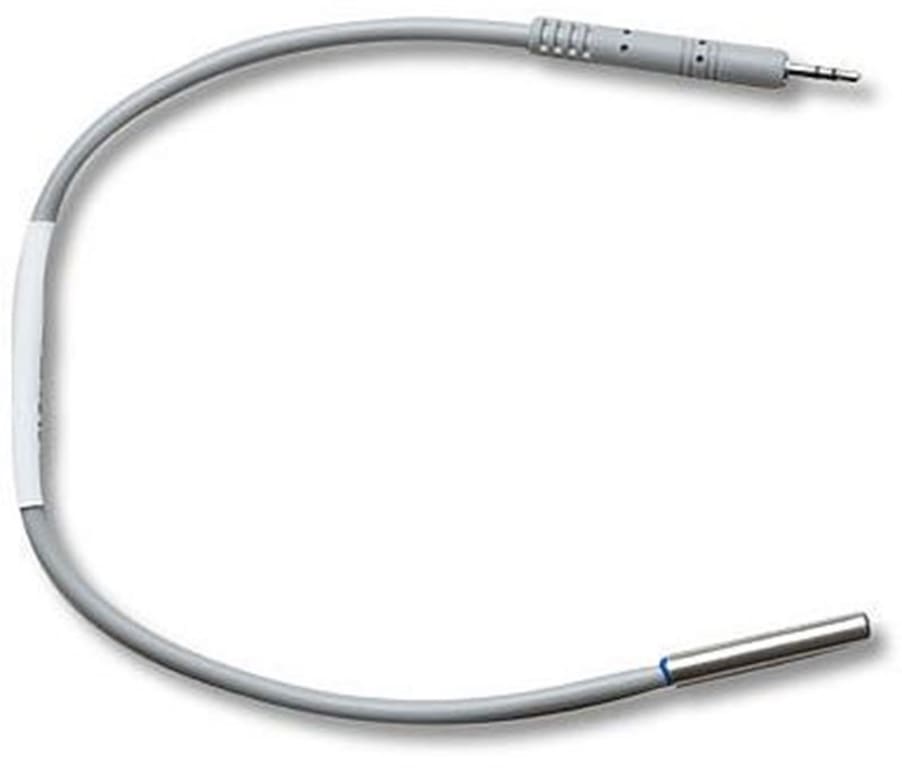

HOBO by Onset TMC1-HD - Air/Water/Soil Temperature Probe

Name: HOBO by Onset TMC1-HD - Air/Water/Soil Temperature Probe
Brand: HOBO by Onset
SKU: HOBOTMC1-HD
Price: 44.89 USD
Availability: InStock

0 reviews | Model: HOBO by Onset TMC1-HD

Compare

1 ft Air/Water/Soil Temperature Probe

1 ft Air/Water/Soil Temperature Probe
Plug directly into the external input jacks of U12, UX120, or ZW Family loggers to expand the range of measurement options and applications
Accuracy and resolution vary according to attached logger model
Measurement range is -40° to 100°C (-40° to 212°F)
Response time in air: 2 min. typical to 90% in air moving 1 m/sec (2.2 mph)
Response time in stirred water: 30 sec. typical to 90%
Sensor is attached to a 0.3 m (1 ft), 1.8 m (6 ft), 6.1 m (20 ft), or 15.2 m (50 ft) cable

View Product Details

List Price: $45.00

Your Price: $44.89

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

HOBO by Onset TMC1-HD

1 ft Air/Water/Soil Temperature Probe
Plug directly into the external input jacks of U12, UX120, or ZW Family loggers to expand the range of measurement options and applications
Accuracy and resolution vary according to attached logger model
Measurement range is -40° to 100°C (-40° to 212°F)
Response time in air: 2 min. typical to 90% in air moving 1 m/sec (2.2 mph)

Air/Water/Soil Temperature Probe

A temperature sensor for use with HOBO U-Series, UX120-006M external-channel data loggers, or ZW series wireless datanodes. This model measures temperature in air, water, or soil. Accuracy and resolution vary according with attached data logger model. Measurement range is -40° to 50°C (-40° to 122°F) in water or soil, -40° to 100°C (-40° to 212°F) in air; response time is minutes typical to 90% in air moving 1 m/sec (2.2 mph); response time in stirred water is 1 minute typical to 90%. This model sensor is attached to a 0.3m (1 ft) cable.

General Specifications
Measurement range	-40° to 50°C (-40° to 122°F) in water; -40° to 100°C (-40° to 212°F) in air
Accuracy	w/U12: ±0.25°C from 0° to 50°C (±0.45°F from 32° to 122°F), insert probe 2.3 cm (0.9 inches) minimum; w/ZW: ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), insert probe 2.3 cm (0.9 inches) minimum; w/UX120-006M: ±0.15°C from 0° to 70°C (±0.27°F from 32° to 158°F), insert probe 2.3 cm (0.9 inches) minimum
Resolution	w/U12: 0.03° at 20°C (0.05° at 68°F); w/ZW: 0.02°C at 25°C (0.04°F at 77°F); w/UX120-006M: 0.002° at 25°C (0.003° at 77°F);
Drift	< 0.1°C (< 0.2°F) per year
Response time in air	2 min. typical to 90% in air moving 1 m/sec (2.2 mph)
Response time in stirred water	30 sec. typical to 90%.
Operating range	Sensor tip and cable immersion in fresh water up to +50°C (122°F) for 1 year
Housing	Copper-plated sensor tip
Dimensions	5.1 x 33 mm (0.2 x 1.3 inches)
Weight	34 g (1.1 oz)
