HOBO by Onset T-DCI-F350-W5B3 Air & Temperature Remote Head Sensor

Name: HOBO by Onset T-DCI-F350-W5B3 Air & Temperature Remote Head Sensor
Brand: HOBO by Onset
SKU: HOBOT-DCI-F350-W5B3
Price: 461.10 USD
Availability: InStock

0 reviews | Model: HOBO by Onset T-DCI-F350-W5B3

HOBO by Onset T-DCI-F350 Air Velocity and Temperature Remote Head Sensor

Compare

Air & Temperature Remote Head Sensor 100 - 2000 fpm

Air & Temperature Remote Head Sensor 100 - 2000 fpm
This adds the ability for users to be able to measure air velocity (in ducts, e.g.) from which CFM can be computed.
This sensor operates in an indoor environment.
The T-DCI-F350-W5x3 sensor supports the following measurement: Air Velocity

View Product Details

Your Price: $461.10

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	HOBO by Onset T-DCI-F350-W5B3 Air & Temperature Remote Head Sensor 100 - 2000 fpm	HOBO by Onset T-DCI-F350-W5A3 Air Velocity & Temperature Remote head Sensor 30-200 fpm	HOBO by Onset T-DCI-F350-W5C3 Air Velocity & Temperature Remote head Sensor 200-4000 fpm
Price
In Stock
Measurement Types (Weather Measurement)	Wind Speed	Wind Speed	Wind Speed
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

HOBO by Onset T-DCI-F350 Series
Air Velocity and Temperature Remote Head Sensor

Air & Temperature Remote Head Sensor 100 - 2000 fpm
This adds the ability for users to be able to measure air velocity (in ducts, e.g.) from which CFM can be computed.
This sensor operates in an indoor environment.
The T-DCI-F350-W5x3 sensor supports the following measurement: Air Velocity

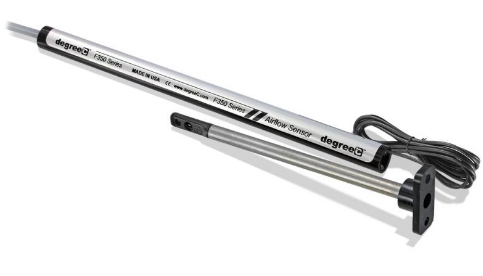

The F350 series is a versatile, high performance, air velocity and air temperature sensor where the sensor element is built remotely from the sensor electronics. In products where segregation of the sensing element and electronics is desirable, such as products involving high EMI sensitivity or extreme temperature, or those where the sensing area is too small for typical probe-style sensors. The sensor requires analog input option during RX3000 or U30 system configuration and use of a S-FS-CVIA when using the H22-001 data logger. When using a U12 data logger, this sensor requires an 0-5 Vdc analog input cable (CABLE-ADAP5) and external power provided by an AC adapter (AC-SENS-1).

General Specifications
Operating temperature range	0°C to 60°C (32°F to 140°F)
Velocity range	0.15 to 1.0 m/s (30 to 200 fpm) 0.5 to 10 m/s (100 to 2,000 fpm) 1.0 to 20 m/s (200 to 4,000 fpm)
Response time	400ms
Storage temperature	-40°C to 105°C (-40°F - 220°F)
Relative humidity (non-condensing)	5-95%
Supply power requirements	4.5-15 VDC, 35mA nominal
Velocity Output	0-5V
Temperature output	0-5V
Housing Construction	Polycarbonate (PC), UL94-V0 (head) UL94-HB (housing)
Plenum rated cable	22 AWG
Environmental Protection	IP65 electronics, including conformal coated sensing element
Accuracy	0.15 to 1.0 m/s (30 to 200 fpm): ± (1% of reading + 0.05 m/s [10 fpm]) 0.5 to 10 m/s (100 to 2,000 fpm): ± (4% of reading + 0.10 m/s [20 fpm]) 1.0 to 20 m/s (200 to 4,000 fpm): ± (5% of reading + 0.15 m/s [30 fpm])
Stainless Steel Wand	127mm (5")
Sensor Head Height	64 mm [25”]
Housing Length	196 mm [7.75”]
Cable Length from Housing to Sensor Head	1 m [3”]
