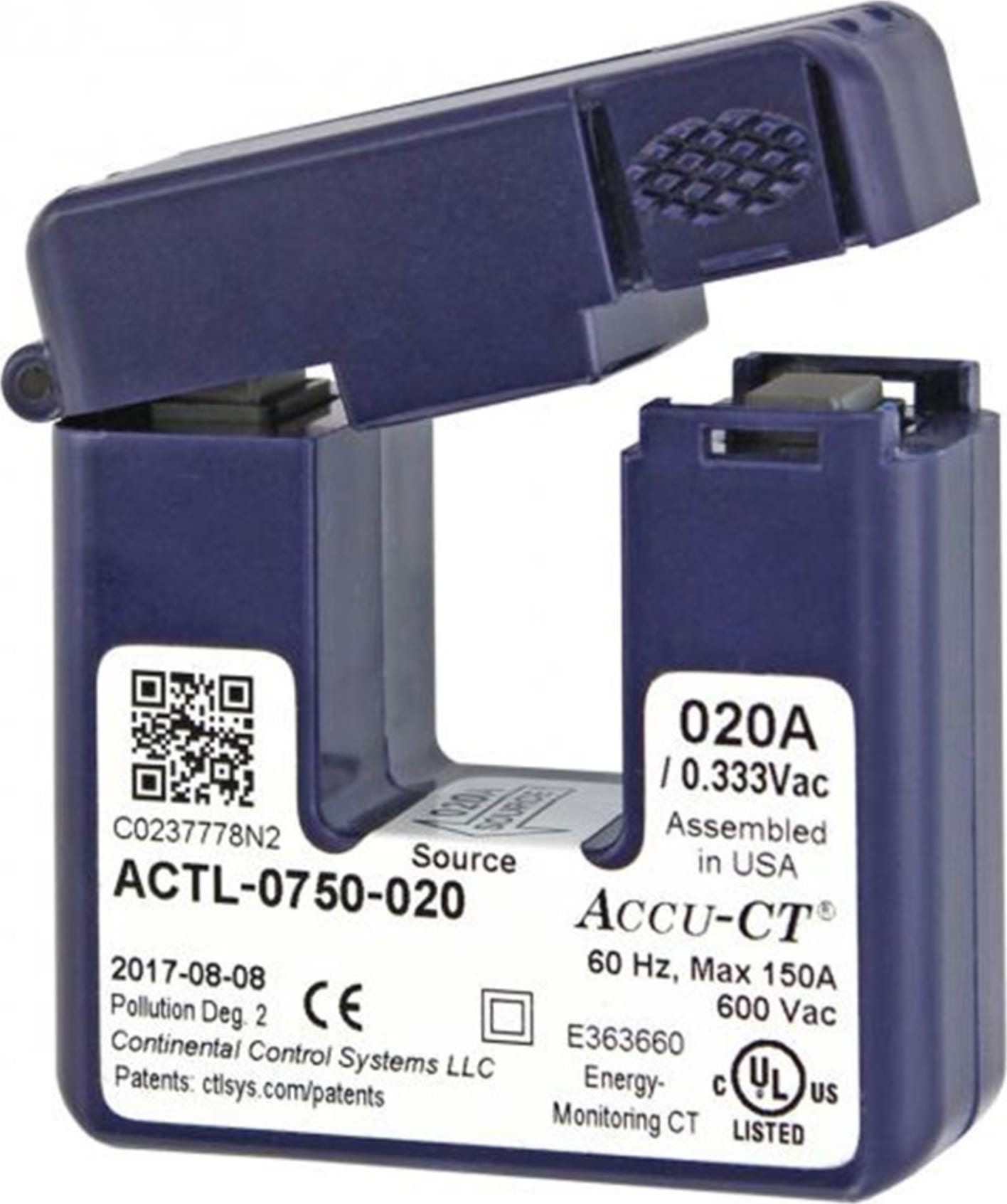

HOBO by Onset T-ACT-0750-020 - Accu-CT Current Transformer 20 Amp/333mV

Name: HOBO by Onset T-ACT-0750-020 - Accu-CT Current Transformer 20 Amp/333mV
Brand: HOBO by Onset
SKU: HOBOT-ACT-0750-020
Price: 79.00 USD
Availability: InStock

0 reviews | Model: HOBO by Onset T-ACT-0750-020

Compare

Accu-CT Current Transformer 20 Amp/333mV

Accu-CT Current Transformer 20 Amp/333mV
Unprecedented Linearity
Window Opening 0.75 Inch
The Accu-CT revenue grade, split-core current transformer offers outstanding linearity and phase angle accuracy with a unique one-handed opening and closing mechanism.
Safe: burden resistor built-in, 333 mVac voltage output at rated full scale current, no shorting blocks needed
IEEE C57.13 and IEC 60044-1 accuracy: over full temperature range and down to 1% of rated current
Exceptionally low phase angle error: essential for accurate power and energy measurements
Glove-friendly: easy to open and install with one hand while wearing safety gloves
Approvals: UL recognized, CE mark, RoHS

View Product Details

Your Price: $79.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

HOBO by Onset T-ACT-0750-020

Accu-CT Current Transformer 20 Amp/333mV
Unprecedented Linearity
Window Opening 0.75 Inch
The Accu-CT revenue grade, split-core current transformer offers outstanding linearity and phase angle accuracy with a unique one-handed opening and closing mechanism.
Safe: burden resistor built-in, 333 mVac voltage output at rated full scale current, no shorting blocks needed

Accu-CT Current Transformer 20 Amp/333mV

The Accu-CT split-core current transformer offers outstanding accuracy and one-handed operation. The Accu-CT revenue-grade, split-core current transformer offers outstanding linearity and phase angle accuracy with a unique one-handed opening and closing mechanism.

General Specifications
Accuracy	±0.75% from 1% to 120% of rated primary current
Phase angle	±0.5 degrees (30 minutes) from 1% to 120% of rated current
Accuracy standards	IEEE C57.13 class 1.2 and IEC 60044-1 class 1.0
Primary rating	5 to 250 Amps, 600 Vac, 60 Hz nominal
Output	333.33 mVac at rated current
Operating temperature	-30°C to 55°C
Safe	integral burden resistor, no shorting block needed, unlessotherwise noted
Standard lead length	8 ft (2.4 m), 18 AWG
Assembled in USA	qualified under Buy American provision in ARRA of 2009
Width	2.38 inches
Height	2.40 inches
Thickness	0.90 inches
Window	0.78 inches
