HOBO by Onset S-THB-M002 Temperature/RH Smart Sensor

Name: HOBO by Onset S-THB-M002 Temperature/RH Smart Sensor
Brand: HOBO by Onset
SKU: HOBOS-THB-M002
Price: 188.53 USD
Availability: InStock

0 reviews | Model: HOBO by Onset S-THB-M002

Compare

Temp/RH Sensor (12-bit) w/ 2m Cable

Environment:
The S-THB-M002 Sensor is for use in Indoor and Outdoor environments
Measurements:
The S-THB-M002 Sensor supports the following measurements:
Temperature, Relative Humidity

View Product Details

List Price: $189.00

Your Price: $188.53

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

HOBO by Onset S-THB-M002 Accessories

Choose a Category

for the HOBO by Onset S-THB-M002

HOBO by Onset S-EXT-M025 25m Smart Sensor Extension Cable

Catalog: S-EXT-M025

(0)

In Stock!

Add to Cart

HOBO by Onset S-EXT-M002 2m Smart Sensor Extension Cable

Catalog: S-EXT-M002

(0)

In Stock!

Add to Cart

HOBO by Onset S-EXT-M005 Smart Sensor Extension Cable-5m length

Catalog: S-EXT-M005

(2)

In Stock!

Add to Cart

HOBO by Onset S-EXT-M010 10m Smart Sensor Extension Cable

Catalog: S-EXT-M010

(0)

In Stock!

Add to Cart

HOBO by Onset CASE-PELICAN-1510 Pelican Case, Black with foam

Catalog: CASE-PELICAN-1510

(0)

In Stock!

Add to Cart

HOBO by Onset S-EXT-CASE2 Weatherproof Connection Housing

Catalog: S-EXT-CASE2

(0)

In Stock!

Add to Cart

HOBO by Onset HUM-RHCAP2 Replacement RH Caps - 5 pack

Catalog: HUM-RHCAP2

(0)

In Stock!

Add to Cart

HOBO by Onset HUM-RHPCB-2 U23-002/S-THB/ZW- Replace RH Sensor Kit

Catalog: HUM-RHPCB-2

(0)

In Stock!

Add to Cart

HOBO by Onset RS3 Solar Radiation Shield

Catalog: RS3

(0)

In Stock!

Add to Cart

The 12-bit Temperature/Relative Humidity Smart Sensor is designed to work with all Onset data loggers that accept Smart Sensors. All sensor parameters are stored inside the Smart Sensor, which automatically communicates configuration data information to the logger without any programming, calibration, or extensive user setup.

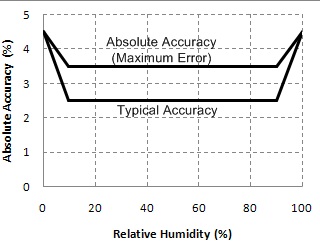

TempAccGraphsm

Measurement Range
Temp	-40°C to 75°C (-40°F to 167°F)
RH	0-100% RH at -40° to 75°C (-40° to 167°F); exposure to conditions below -20°C (-4°F) or above 95% RH may temporarily increase the maximum RH sensor error by an additional 1%
Accuracy
Temp	+/- 0.21°C from 0° to 50°C (0.38°F from 32° to 122°F)
RH	+/- 2.5% from 10% to 90% RH (typical), to a maximum of +/- 3.5%
Resolution
Temp	0.02°C at 25°C (0.04°F at 77°F)
RH	0.1% RH at 25°C (77°F)
Bits Per Sample
Temp	12
RH	10
Drift
Temp	< 0.1°C (0.18°F) per year
RH	< 1% per year typical; hysteresis 1%
Response Time
Temp	5 minutes in air moving 1 m/sec
RH	5 minutes in air moving 1 m/sec with protective cap
Operating Temperature Range	-40°C to 75°C (-40°F to 167°F)
Environmental Rating Weatherproof	0 to 100% RH intermittent condensing environments. For best results, the Temp/RH Smart Sensor should be mounted inside a protective enclosure, such as a solar radiation shield
Housing PVC cable jacket with ASA styrene polymer RH sensor cap; modified hydrophobic polyethersulfone membrane
Sensor Dimensions	10 x 35 mm (0.39 x 1.39 in)
Weight	110 g (3.88 oz)
Number of Data Channels	2
Measurement Averaging Option	No
Cable Lengths Available	2.5m (8.2 ft)
Length of Smart Sensor Network Cable	0.5 m (19.6 ft)

This product meets CE specification EN61326 criterion C for ESD, criterion C for Radiated Immunity, criterion C for Fast Transient, criterion B for Conducted Immunity, criterion A for Power Frequency Magnetic Fields, and Radiated Emissions Group 1, Class B. To minimize measurement errors due to ambient RF, use the shortest possible probe cable length and keep the probe cable as far as possible from other cables.

Note: Sensor requires protection from rain or direct splashing; Radiation shield (RS3) strongly recommended for use in sunlight; sensors can be used in intermittent condensing environments up to 30°C and non-condensing above 30°C.

Tech Specs

Test Equipment General Attributes
Unique Features	Use in Indoor and Outdoor environments Supports the Temperature, Relative Humidity measurements
Safety Approval	CE
Product Weight	110 GRAMS (0.243 LBS)
Product Height	1.60 IN
Product Length	6.50 IN
Product Width	6.25 IN
HTS/Schedule B Number	9026.90.6000
ECCN Number	EAR99
Country of Origin	United States
Shipping Height	1.60 IN
Shipping Length	6.50 IN
Shipping Width	6.25 IN
