• 2 input channels of 0-20mA and/or 0-20 VDC
• Provides 12V sensor excitation and user-configurable warm-up

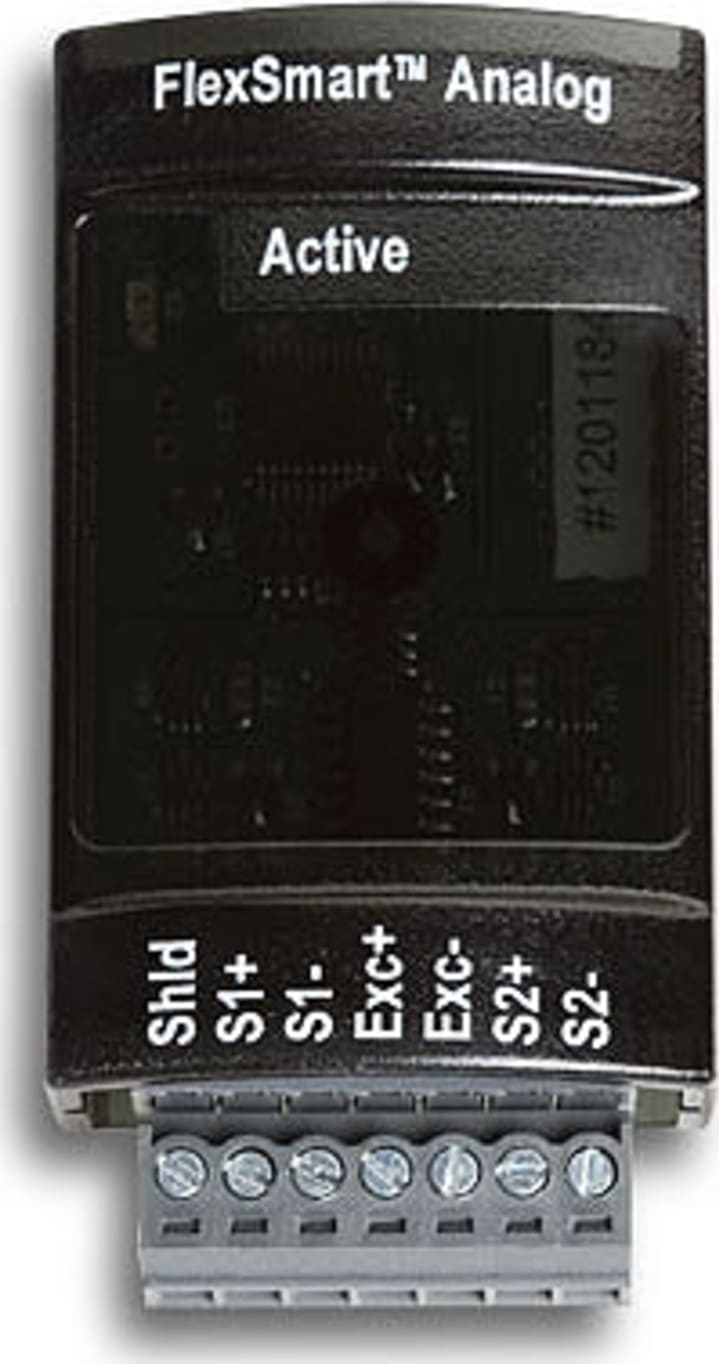

The 12-bit FlexSmart Analog Input Module for use with the H22-001 Energy Logger handles two single-ended input channels with user-configurable ranges of 0 to 20mA DC or 0 to 20 V DC which is suitable for 2.5-, 5-, and 10-volt sensors. Field wiring is 2- or 3-wire via screw terminals.

Environment:

The S-FS-CVIA Sensor is for use in Indoor environments.

Measurements:

The S-FS-CVIA Sensor supports the following measurements:4-20mA, Carbon Dioxide, DC Current, DC Voltage, Kilowatts (kW).
