Measure and Verification System, 3-phase

120 VAC/208-240 VAC Three-Phase Four-Wire Wye with Neutral
208-240 VAC Three-Phase Three-Wire Delta without Neutral

View Product Details

Your Price: $1,248.75

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

HOBO KIT-MV-3P 3 Phase Measurement and Verification (power monitoring) System

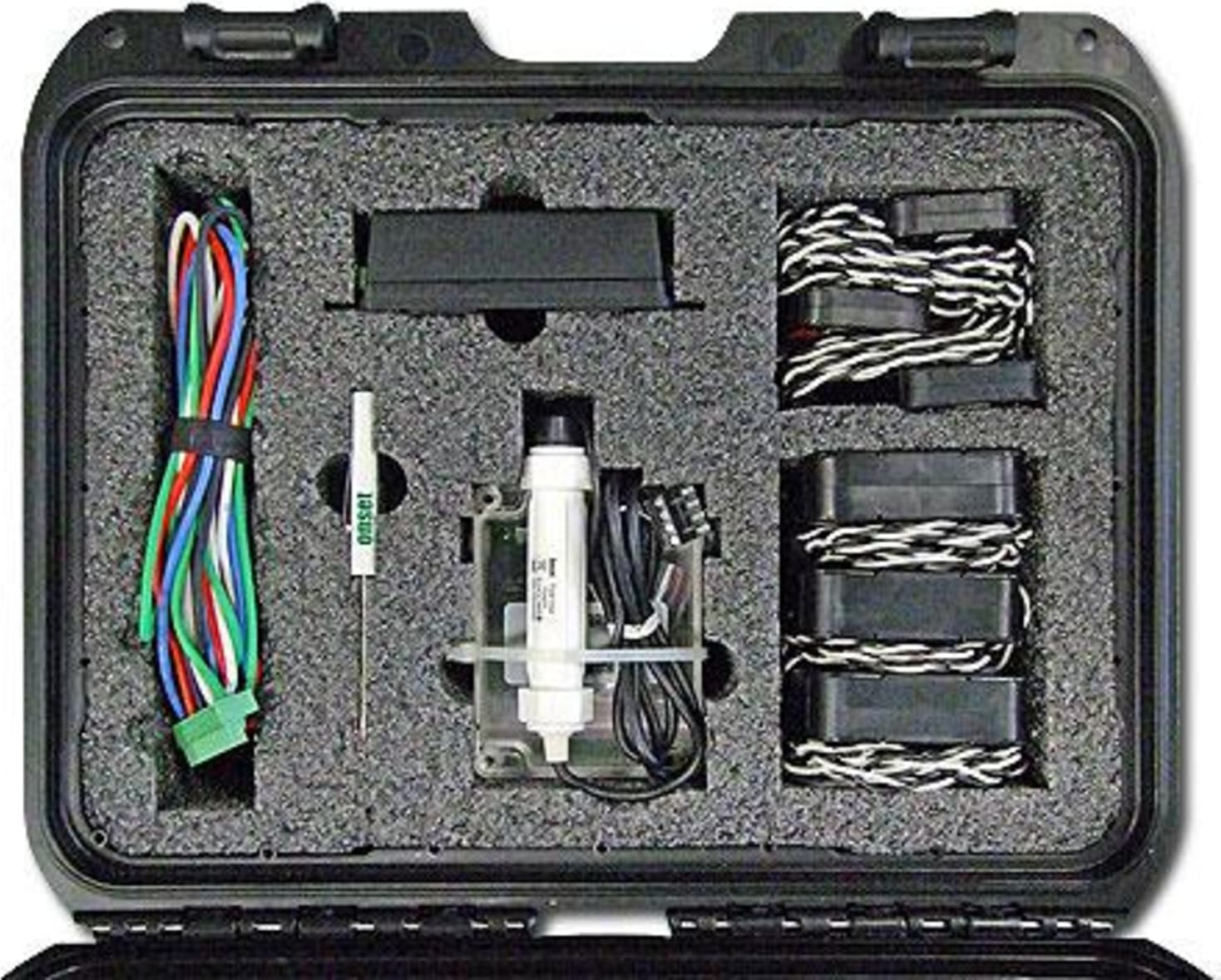

The HOBO Measurement & Verification System is a self-contained kit making it convenient and economical for energy performance contractors, energy consultants, and building energy managers to track the performance of building systems, such as packaged HVAC units, and verify the impact of energy efficiency improvements. The Measurement & Verification System contains a 4-channel logger, kWh transducers, 50 and 200 Amp current transducers, voltage input leads, software, and accessories for single (KIT-MV-1P) or three phase (KIT-MV-3P) circuit energy monitoring applications, all contained in a rugged carrying case.

The system can be used to measure AC voltages from (nominal) 120 to 140 phase to neutral and (nominal) 208 to 240 phase to phase. Electrical service types applicable are:

120 VAC/208-240 VAC Three-Phase Four-Wire Wye with Neutral
208-240 VAC Three-Phase Three-Wire Delta without Neutral

The Measurement & Verification System contains the following items which are pre-assembled to save time:

H21-002 - HOBO® Micro Station Data Logger
S-UCC-M001 - Electronic Switch Pulse Input Adapter - 1 meter
T-MAG-SCT-050 X3- Three 0 - 50 AMP Split-core AC Current Transformer -0.75” Opening
T-MAG-SCT-200 X3- Three 0 - 200 AMP Split-core AC Current Transformer - 1.25” Opening
T-WNB-3D-240 - WattNode 208/240 VAC 3-phase Delta kWh Transducer
WNB-LEAD-set
85-CASE –MV (customized carrying case - not sold separately)
ADAPT-SER-USB (USB cables - A Keyspan USB-to-serial adaptor for use with all RS-232 serial devices and a PC 3.5 Interface Cable for PC computers - Keyspan CD)
85-Screwdriver-1 (Onset screwdriver - not sold separately)
05-6POS-BLOCK-D (extra WattNode CT terminal block for other CTs that maybe purchased - not sold separately)
HOBOware Pro software disc
Manual

Note: The included H21-002 data logger is capable of accepting other 3rd party sensors - for a complete list of H21-002 compatible sensors, please see the H21-002 product page.

Environment:
The KIT-MV-3P is for use in Indoor environments

Measurements:
The KIT-MV-3P supports the following measurements:

Kilowatt Hours (kWh)
Kilowatts (kW)

HOBOKIT-MV-3P 3 Phase Measurement and Verification (power monitoring) System Specifications

H21-002 - HOBO Micro Station Data Logger
Operating Range	-20° to 50°C (-4° to 122°F) with alkaline batteries, -40° to 70°C (-40° to 158°F) with lithium batteries
Sensor Inputs	Up to four smart sensors (including multiple-parameter sensors)
Communication	3.5 mm serial port
Dimensions	8.9 cm H x 11.4 cm D x 5.4 cm W (3.5 x 4.5 x 2.125 inches)
Weight	0.36 kg (0.8 lb)
Memory	512K nonvolatile flash data storage
Memory Modes	Stop when full, wrap around when full
Operational Indicators	Seven lights provide logging and sensor network status
Logging Interval	1 second to 18 hours, user-specified interval
Battery Life	1 year typical use (up to 4 sensors with 1 minute or longer logging interval)
Battery Type	Four standard AA alkaline batteries included (for operating conditions -20° to 50°C [-4° to 122°F]); optional AA lithium batteries available for operating conditions of -40° to 70°C (-40° to 158°F)
Time Accuracy	0 to 2 seconds for the first data point and ±5 seconds per week at 25°C (77°F)
Data Type	Supports measurement averaging based on availability of supporting data from sensor
Logger Start Modes	Immediate, push-button, or delayed start options
Data Communication	Current reading while logging, offload while logging, or offload when stopped
Environmental Rating	Weatherproof, with GoreTM Vent for deployment in harsh weather conditions
Mounting	Mount vertically on flat surface 18 cm (3.5 inches) or wider; optional mast mounting kit for use on 4.1 cm (1 5/8 inches) diameter masts
Enclosure Access	Cover secured by four screws
Sensor Network Cable Length	100 m (328 ft) maximum
S-UCC-M001 - Electronic Switch Pulse Input Adapter - 1 meter
Maximum Input Frequency	120 Hz (120 pulses per second)
Measurement Range	0 – 65,533 pulses per logging interval
Resolution	1 pulse
Lockout time	45 µs ± 10%
Recommended Input Type	Electronic solid state switch closure or CMOS-level digital output (example: FET, opto-FET or open collector)
Preferred Switch State	Active low input Normally open
Edge Detection	Falling edge, Schmitt Trigger buffer (logic levels: low = 0.6 V, high = 2.7 V)
Minimum Pulse Width	1 ms
Input/Output Impedance	100 KO
Open Circuit Input Voltage	3.3 V
Maximum Input Voltage	3.6 V
User Connection	24 AWG wires, 2 leads: white(+), black(-)
Operating Temperature Range	-40° to 75°C (-40° to 167°F)
Overall Cable Length	1 m (3.3 ft.)
Housing	Weatherproof PVC housing protects input adapter electronics
Housing Dimensions	14 x 0.95 cm (5.5 x 0.375 in.)
Weight	310 g (11 oz.)
Bits per Sample	16
Number of Data Channels	1
Measurement Averaging Option	No (reports the number of pulses over the logging interval)
T-MAG-SCT-050 - 0 - 50 AMP Split-core AC Current Transformer -0.75” Opening
Measurement ranges	0-50 Amps AC
Accuracy	±1% (from 10% to 130% of rated current)
Voltage rating	600VAC
Phase angle	<2 degrees (valid for 70A or higher)
Output signal to FlexSmart TRMS Module	0.333V at rated current
Number of data channels	1
Quality construction	UL recognized 0.75” Opening Epoxy encapsulated housing Leads – 8-ft twisted pair, 22 AWGG Snap closing/opening Internal precision burden resistor
T-MAG-SCT-200 - 0 - 200 AMP Split-core AC Current Transformer - 1.25” Opening
Measurement ranges	0-200 Amps AC
Accuracy	±1% (from 10% to 130% of rated current)
Voltage rating	600VAC
Phase angle	<2 degrees (valid for 70A or higher)
Output signal to FlexSmart TRMS Module	0.333V at rated current
Number of data channels	1
Quality construction	UL recognized 1.25” Opening Epoxy encapsulated housing Leads – 8-ft twisted pair, 22 AWGG Snap closing/opening Internal precision burden resistor
T-WNB-3D-240 - WattNode 208/240 VAC 3-phase Delta kWh Transducer
Delta or Wye Configuration ranges	208, 480 Volts AC ○1 Phase 2 Wire 208V (No neutral) ○1 Phase 2 Wire 240V (No neutral) ○1 Phase 3 Wire 120V/240V ○3 Phase 3 Wire 208V (No neutral) ○3 Phase 4 Wire 120V/208V
Rating	FCC Class A
Operating	voltage range: ±20% of nominal
Frequency	60 Hz
CT input	0-0.5 VAC operating, 3 VAC maximum
Accuracy	±0.45% of reading + 0.05% FS through 25th harmonic (dependent on CT used and line variation accuracy could be 1.5% to 4% of reading)
Enclosure	high impact, UL rated ABS plastic
Connectors	UL, CSA recognized, detachable screw terminals (14 AWG), 600V
Operating temp range	-30 to 60°C (-22 to 140°F)
Operating humidity range	0 to 90% RH, non-condensing
Dimensions	8.5 cm x 14.3 cm x 3.8 cm (3.3 in. x 5.6 in. x 1.5 in.)
Weight	295 g (10.4 oz.)
Number of data channels	2
