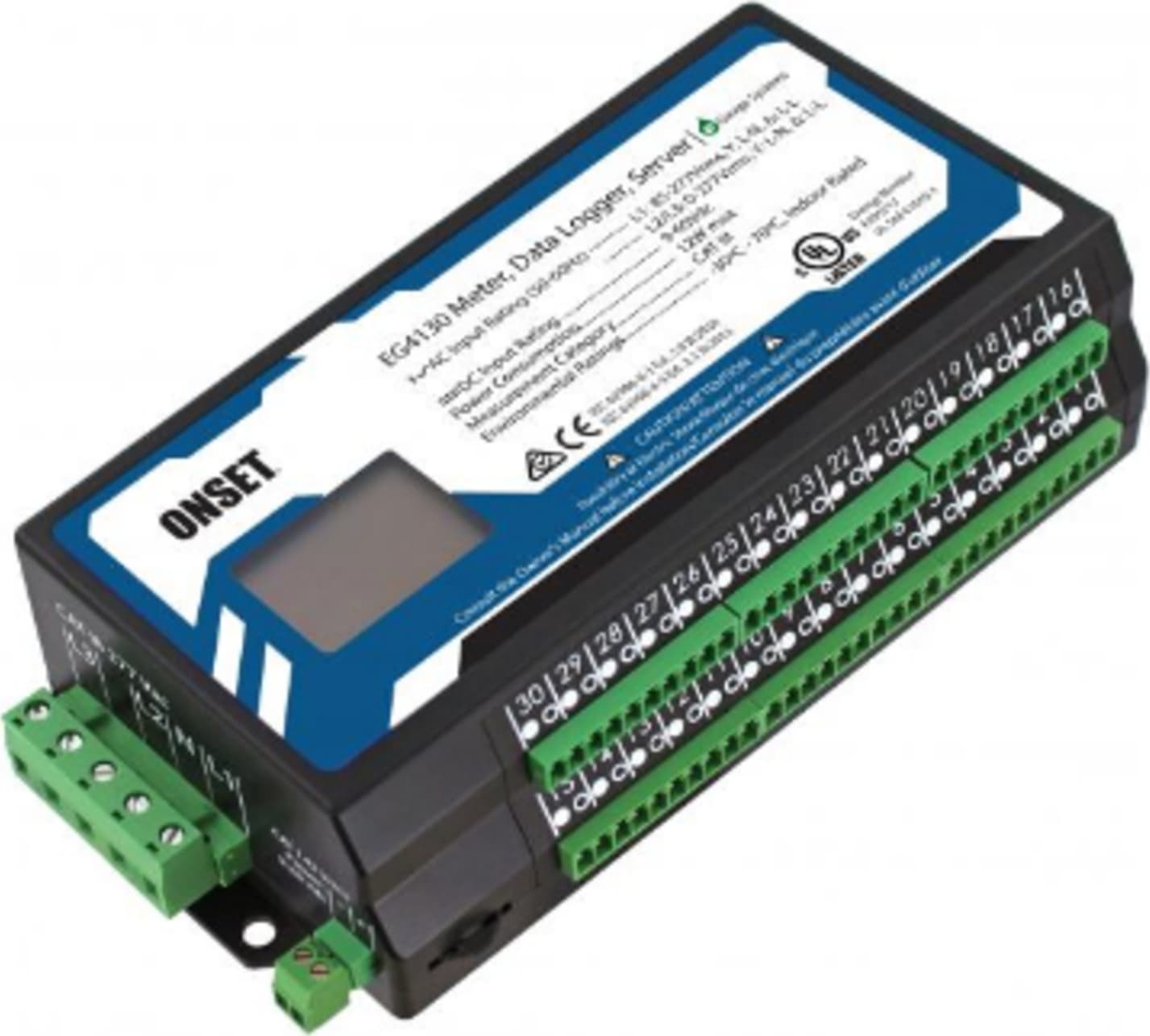

HOBO by Onset EG4130 Input Meter Data Logger

Name: HOBO by Onset EG4130 Input Meter Data Logger
Brand: HOBO by Onset
SKU: HOBOEG4130
Price: 915.00 USD
Availability: InStock

0 reviews | Model: HOBO by Onset EG4130

Compare

30 Input Power Meter w 5-pin power plug

30 sensor inputs
Supports wide range of current transformers (CTs) to accommodate virtually any size load
Built-in web server and graphical monitoring software
Custom view and alerts; CSV exports of granular data
Fully web-configurable
Built-in solid-state memory
No service contracts
No batteries

View Product Details

Your Price: $915.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

HOBO by Onset EG4130 Accessories

Choose a Category

Jacks /Adapters /Plugs /Clips /Terminators/Coaxial
Misc Connectors / Adapters

for the HOBO by Onset EG4130

HOBO by Onset 2P-CT-EG4100-KIT 2 pin CT connector EG4100 - Pack of 5

Catalog: 2P-CT-EG4100-KIT

(0)

In Stock!

Add to Cart

HOBO by Onset HP200TPL TP Link Homeplug AV

Catalog: HP200TPL

(0)

In Stock!

Add to Cart

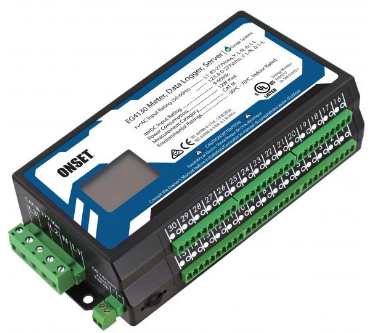

HOBO by Onset EG4130
Input Meter Data Logger

30 sensor inputs
Supports wide range of current transformers (CTs) to accommodate virtually any size load
Built-in web server and graphical monitoring software
Custom view and alerts; CSV exports of granular data
Fully web-configurable

The EG4130 Pro combines an energy meter, data logger, and a web server. This powerful combination lets you measure, store and retrieve (V, A, VAr, kWh, etc.) data directly from the device or from a remote location via the internet. You can view historical and live data for the lifetime of the hardware with the unit’s convenient user interface (UI). Users have access to real-time values, long-term reports, an interactive graphical interface, and many other tools.

General Specifications
Measurement
AC Voltage	L1: 85-277 Vrms L2: 0-277 Vrms L3: 0-277 Vrms
DC Voltage	42 Vrms Power: 9-60 Vdc Measurement: +/-60 Vdc
Current	30 channels 5-6900A max per channel Fully isolated inputs
Frequency	50 or 60 Hz
Logging Values	V, A, W, Wh, Hz, VA, VAr, THD, deg
Power Draw	12W max, 2W typical
Environmental
Op. Temperature	-30 to 70 deg C (-22 to 158 F)
Max Altitude	4000m (13,123ft)
Max Humidity	80% up to 31 deg C
Meas. Category	Overvoltage Category III
Location	Open type indoor device
Pollution Degree	2
Data Logger Capacity
Register Count	64 (data storage points)
Granularity	1 hour/1 second
Duration/avg	1 year/1 minute 10 yrs/15 minute Device Lifetime/1 Day
Safety and Regulatory
Safety	IEC/UL 61010-1 Ed. 3.0 B:2010
CE	IEC 61000-6-1 Ed. 3.0 B:2016 IEC 61000-6-3 Ed. 2.1 B:2011
FCC	FCC Title 47 CFR Part 15-Subpart B Class B ICES-003 Information Technology Equipment Class B
Communication
Homeplug AV	Compatible with Homeplug AV-adapter within ~100ft. on same phase as L1
Ethernet	IEEE 802.3 - LAN
User Interface
Compatible Browsers (Only up-to-date versions supported)	Google Chrome Firefox Safari Internet Explorer
Enclosure
Material	FRABS
Dimensions	17 x 8 x 4.6cm (6.7 x 3.15 x 1.81in)
Weight	300g (0.66lbs)
Warranty Standard	2 years

Test Equipment General Attributes
Warranty	2 YEARS
Safety Approval	CE
Interfaces I/O	Web Host / Web Server
Product Weight	0.66 LBS
Product Height	1.81 IN
Product Length	6.7 IN
Product Width	3.15 IN
Country of Origin	United States
