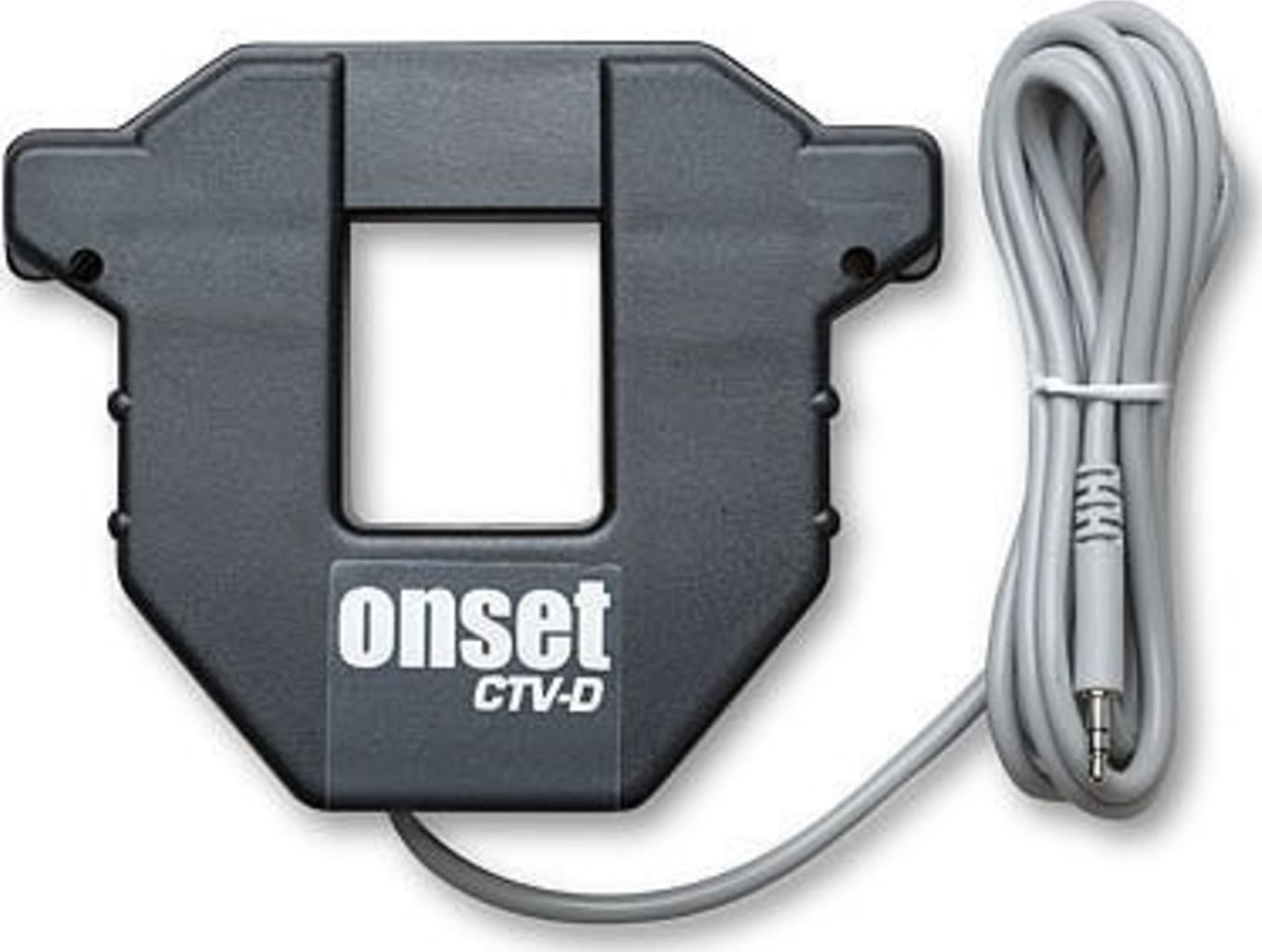

HOBO by Onset CTV-D - Split-core AC Current Sensor

Name: HOBO by Onset CTV-D - Split-core AC Current Sensor
Brand: HOBO by Onset
SKU: HOBOCTV-D
Price: 169.00 USD
Availability: InStock

0 reviews | Model: HOBO by Onset CTV-D

Compare

Split-core AC Current Sensor

UL listed
Sensor power induced from line voltage
Self-gripping split-core design for fast installation
Environment: The CTV-D Sensor is for use in Indoor environments
Measurements: The CTV-D Sensor supports the following measurements: AC Current

View Product Details

Your Price: $169.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

HOBO by Onset CTV-D

UL listed
Sensor power induced from line voltage
Self-gripping split-core design for fast installation
Environment:
The CTV-D Sensor is for use in Indoor environments
Measurements:
The CTV-D Sensor supports the following measurements: AC Current

Split-core AC Current Sensor

A split-core AC current sensor responsive over the range of 20 to 200 amps AC for use with U12, UX120, and ZW data loggers with external input channels. With an input current of AC current, sine wave, single phase 50 Hz or 60 Hz, load power factor 0.5 to 1.0 lead or lag.

The molded-plastic housing is rated for indoor use per UL508, with removable leg.

Range	20-200 Amps
Accuracy with H8	±5.0% of full scale
Accuracy with U12	±4.5% of full scale
Accuracy with UX120-006M	±2.1% of full scale
Response time (from 10% to 90% of amplitude)	450
Input current	AC current, sine wave, single phase 50 Hz or 60 Hz, load power factor 0.5 to 1.0 lead or lag
Voltage rating	600 VAC
Construction and operating environment	Molded plastic housing for indoor use per UL508; pivoting leg (leg on CTV-D and CTV-E units is fully removable); UL listed.
Cable Length	1.8m cable (6 foot)
Window dimension	3.8 cm x 3.3 cm (1.5 in. x 1.3 in)
Outer dimension	3.9 in x 4.7 in x 1.1 in (L x W x H)

Tech Specs

Test Equipment General Attributes
Unique Features	UL listed Sensor power induced from line voltage Self-gripping split-core design for fast installation 20 - 200 Amp
Safety Approval	UL
Product Height	1.1 IN
Product Length	3.9 IN
Product Width	4.7 IN
Shipping Weight	0.88 LBS
Country of Origin	United States
