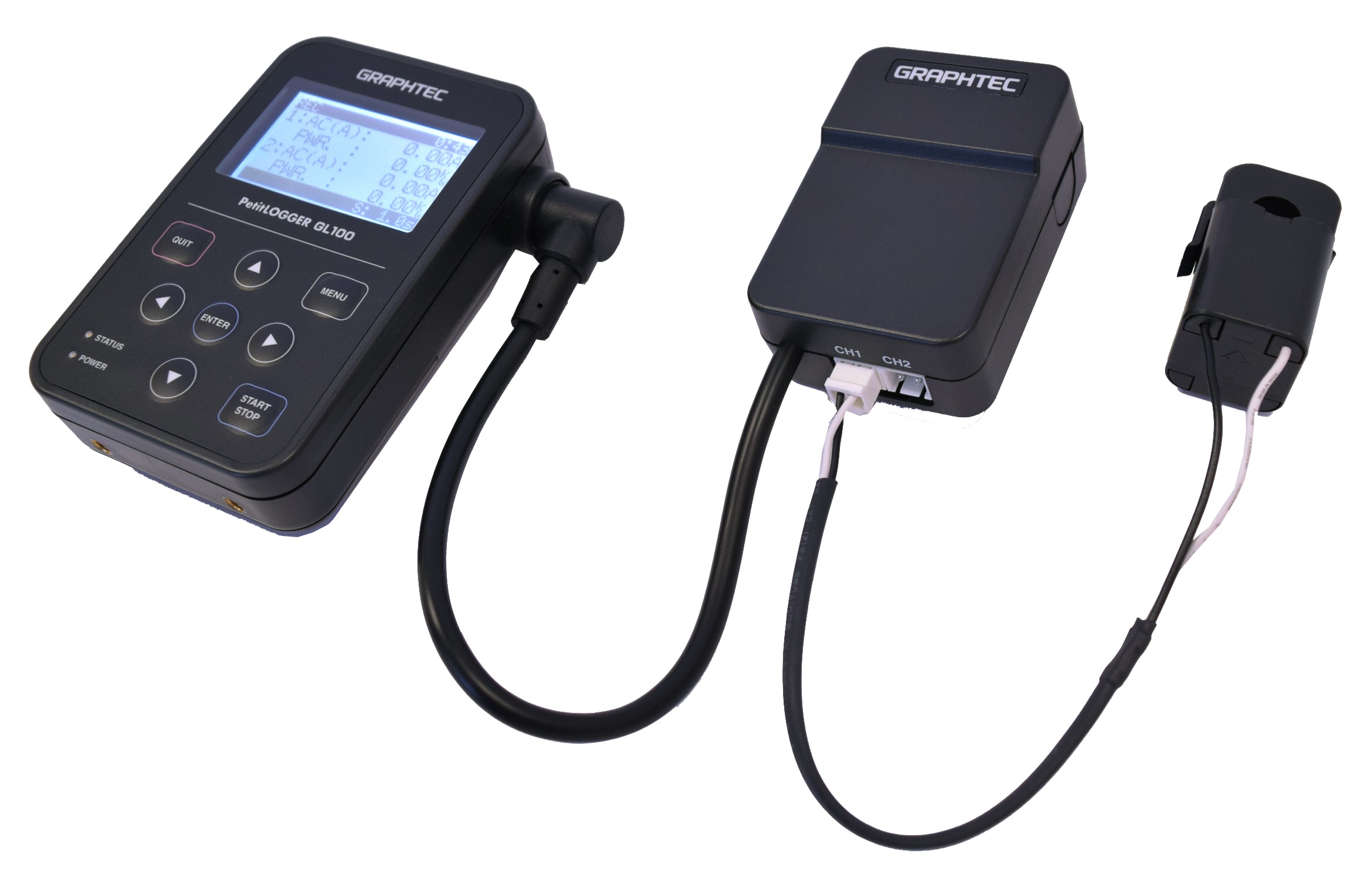

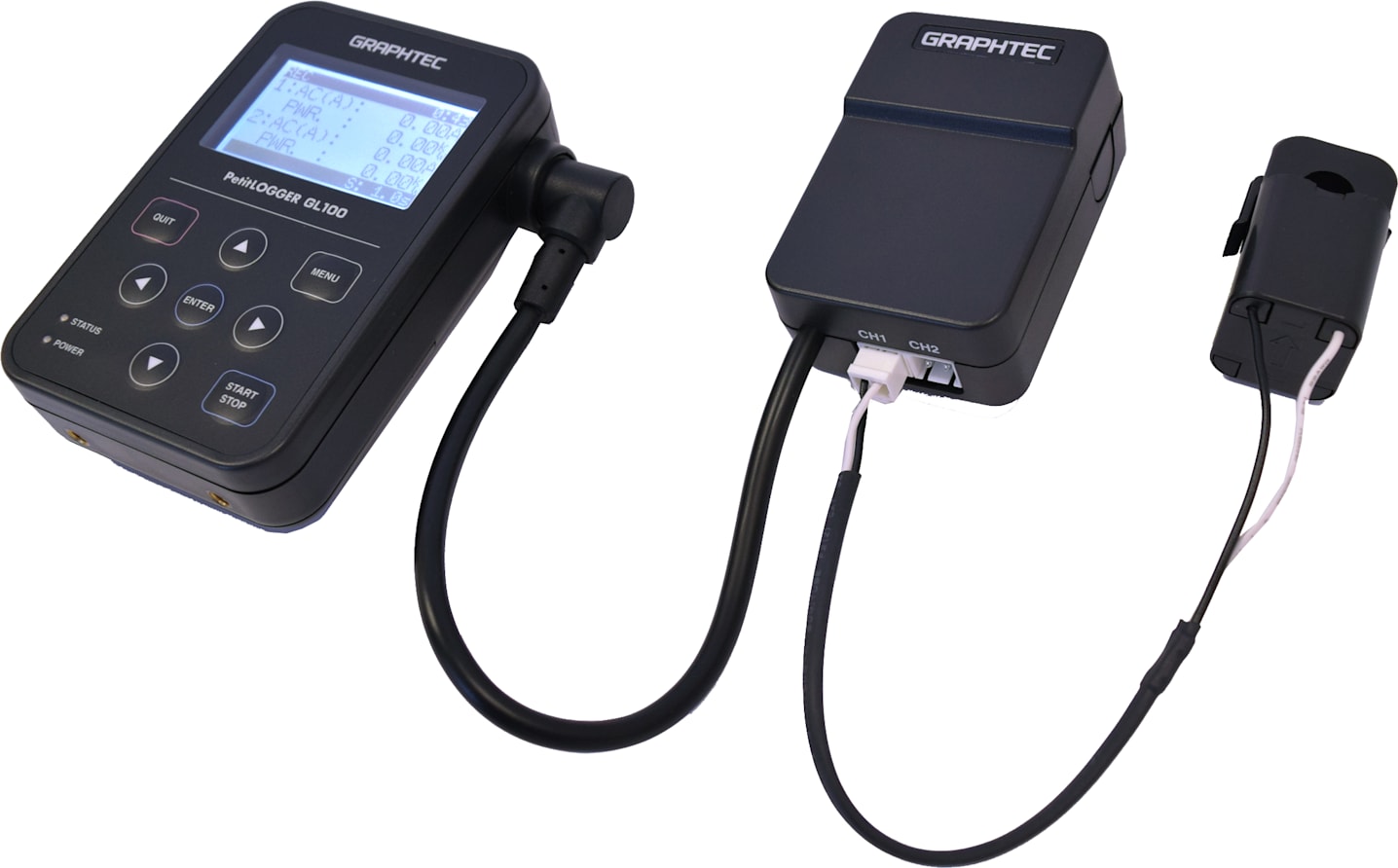

Graphtec GL100-WL-DPA-AC50A - Wireless Data Logger with AC Current Sensor with Max 50A Current Sensor

Name: Graphtec GL100-WL-DPA-AC50A - Wireless Data Logger with AC Current Sensor with Max 50A Current Sensor
Brand: Graphtec
SKU: GraphtecGL100-WL-DPA-AC50A
Price: 595.00 USD
Availability: InStock

0 reviews | Model: Graphtec GL100-WL-DPA-AC50A

Compare

Wireless Data logger with AC current sensor with max 50A current sensor. Used with steady state voltage AC level. Support single phase 2-wire, single-phase 3-wire, and 3-phase 3-wire connection. Reads Power with adjustable power factor. Can Add one additional GS-AC sensor (50A, 100A, or 200A)

GL100 Main Unit, Standard Model
Required to Use with Sensor Units or Input Adapters
Real-time data capturing
Display the captured data value to the LCD in real-time and save the monitoring values
PC and smart mobile device software available
Industry-specific software: agriculture, logistics, power
Built-in memory: 4.9 MB
MicroSD memory card port
Modular
Supports a variety of measurements by exchanging the input module

View Product Details

List Price: $595.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Graphtec GL100-WL-DPA-AC50A

Graphtec GS-AC100A AC current sensor, Clamp-on type (max. 100 A AC), use with...

Catalog: GS-AC100A

(0)

In Stock!

Add to Cart

Graphtec GS-AC200A AC current sensor, Clamp-on type (max. 200 A AC), use with...

Catalog: GS-AC200A

(0)

In Stock!

Add to Cart

Graphtec GS-AC50A AC current sensor, Clamp-on type (max. 50 A AC), use with GS-DAP-AC...

Catalog: GS-AC50A

(0)

In Stock!

Add to Cart

Graphtec GS-CO2 Carbon dioxide sensor, CO2 concentration (max. 9999 ppm)

Catalog: GS-CO2

(0)

In Stock!

Add to Cart

Graphtec GS-DPA Dual port adapter

Catalog: GS-DPA

(0)

In Stock!

Add to Cart

Graphtec GS-4TSR Thermister input terminal, Thermistor (max. 120 C) and 4 ch. of logic...

Catalog: GS-4TSR

(0)

In Stock!

Add to Cart

Graphtec GS-103JT-4P Thermistor sensor (Ultrathin type), Temperature sensor (-40 to...

Catalog: GS-103JT-4P

(0)

In Stock!

Add to Cart

Graphtec GL100-WL-DPA-AC50A - Wireless Data Logger with AC Current Sensor with Max 50A Current Sensor

Easy measurement by multifunction input
Available the software for PC & Smart devices
Possible to check the data in multiple method
Reliable measurement with useful functions
Typical applications
Sales network

Used with steady state voltage AC level. Support single phase 2-wire, single-phase 3-wire, and 3-phase 3-wire connection. Reads Power with adjustable power factor. Can Add one additional GS-AC sensor (50A, 100A, or 200A).

The Graphtec GL100-WL-DPA-AC50A is modular type that is able to support variety measurement by exchanging the input module. Multiple sensors and the input terminal are available for corresponding to the application.

Easy measurement by multifunction input

The input module can be expanded to accommodate a wide variety of measurements

Dual port adapter connects up to two modules for simultaneous interface

GL100-WL / N

Dual port adapter
Temp./Humidity sensor
Illuminance/UV sensor

GL100-WL / N

Dual port adapter
Temp./Humidity sensor
Carbon dioxide sensor

GL100-WL / N

Dual port adapter
Illuminance/UV sensor
Carbon dioxide sensor

Providing a variety of sensors and input terminals corresponding to the application.

There is the following input module.

Number of channels and measurement type are fixed with each input module.

Sensor
No.	Input module	Measurement (actual sensing)	Measurement (calculated value)
1	Temp./Humidity sensor GS-TH	Temperature (-20 to 85 ºC), Humidity (0 to 100 % RH)	Accumulated temperature, Dew-point temperature
2	Acceleration/Temp. sensor GS-3AT	Acceleration in 3-axis (max. 10 G), Temperature (-10 to 50 ºC)	N/A
3	Illuminance/UV sensor GS-LXUV	Illuminance (max. 200 k lx), UV intensity (max. 30 mW/cm2)	Accumulated Illuminance, Accumulated UV intensity
4	Carbon dioxide sensor GS-CO2	CO2 concentration (max. 9999 ppm)	N/A

Input terminals / Adapter
No.	Input module	Measurement (actual sensing)	Measurement (calculated value)
5	Voltage/Temp. input module GS-4VT	Voltage (max. 50 V) or Temp. (TC: K/T type) of 4 ch, Logic or Pulse of 4 ch
6	Temperature input terminal GS-4TSR	Thermistor (max. 120 ºC) of 4 ch, Logic or Pulse of 4 ch
7	Thermistor sensor GS-103AT-4P	Temperature sensor (-40 to 105 ºC), Normal type use with GS-4TSR module
8	Thermistor sensor GS-103JT-4P	Temperature sensor (-40 to 120 ºC), Ultrathin type use with GS-4TSR module
9	AC current sensor adapter GS-DAP-AC	AC current, 2 sensors are able to connect (*1)	Power (instantaneous), Integrated power (Electric energy)
10	AC current sensor GS-AC50A	Clamp-on type (max. 50 A AC), use with GS-DAP-AC module
11	AC current sensor GS-AC100A	Clamp-on type (max. 100 A AC), use with GS-DAP-AC module
12	AC current sensor GS-AC200A	Clamp-on type (max. 200 A AC), use with GS-DAP-AC module
*1: it is required to use the same type sensor and it is used in the same power system of the single- or three-phase.

Packages will include combined models best suited for your application

GL100 will feature package solutions that combines several sensors and modules together for a one stop solution as an out-of-box-ready item for the specific application that best fits your need.

Combo models for GL100-WL

Temp./Humidity Set: GL100-WL-TH

GL100-WL & GS-TH

Acceleration Set: GL100-WL-3AT

GL100-WL & GS-3AT

Voltage/Temp. Set: GL100-WL-4VT

GL100-WL & GS-4VT

Thermistor Set: GL100-WL-4TSR

GL100-WL & GS-4TSR
* Thermistor sensor is not included.

Combo models for GL100-N

Temp./Humidity Set: GL100-N-TH

GL100-N & GS-TH

Acceleration Set: GL100-N-TH

GL100-N & GS-3AT

Voltage/Temp. Set: GL100-N-4VT

GL100-N & GS-4VT

Thermistor Set: GL100-N-3TSR

GL100-N & GS-3TSR
* Thermistor sensor is not included.

Available the software for PC & Smart devices

The GL100 is able to use with the PC or the Smart devices. The data on the GL100 can be monitored using the software.

General-purpose software for PC

General purpose application software will continue to have the ability to view in Y-T chart, waveform, and digital values. It is able to be also controlled the GL100 in real-time.

General-purpose software for the Smart devices

General purpose application software has the ability to view in Y-T chart and digital values. The displayed information will be refreshed by request. The simple settings of GL100 are able to control.

*It is available for the Android OS and the iOS in the Google Play or App Store.

Supported OS : Android 4.1 to 6.0, iOS 7 / 8 / 9 (up to 9.3.4)

The most recent captured data is displayed in the digital value, trend graph or the alarm history. It is updated by operation of synchronous.

Industry-specific software (for PC and Smart device)

The new industry-specific customize software will feature targeted software in accommodating users with indicators that are specific and familiar to that industry.

Agriculture

Indicators of plant growth

Logistics

Indicators of safe transportation and storage

Power

Indicators of electric energy

* It is available to download at the autumn of 2014

Specific-industry	Measurement capability	Description
Agriculture	• Temperature Accumulation • Humidity Deficit • Amount of solar radiation • Amount of ultraviolet rays	Confirm temperature accumulation, humidity deficit, solar radiation, ultraviolet rays as part of the vital indicators for healthy plant growth. Measure optimal saturation deficit by understanding the best conditions applied for growth, flowering, and fruiting using temperature accumulation and optimal growth environment scheme.
Logistics	• Search and display acceleration thresholds • Temperature Accumulation • Humidity Deficit	Transpiration of industrial equipment, temperature controlled transport of food, and warehouse temperature management can all be monitored to provide the safest and secured operation. Safety measurements through monitoring the vibration of the transport vehicles can be vital to heavy-industrial and vibration sensitive equipment. Accumulated temperature monitoring and humidity levels will be vital to keeping food fresh in a controlled environment.
Power measurement	• AC current • Power • Integrated power	Power and electric energy levels will be displayed on the graph using measured AC current locally at the factory, buildings and industrial equipment. Corresponds to three power systems including two-wire single-phase, three-wire single-phase, or three-wire in three-phase.

Possible to check the data in multiple method

Wireless access will support multiple configurations for both secured and world wide internet access.

The following configuration is available to communicate with the GL100. The available function varies by the configuration.

Configuration Case 1	Configuration Case 2 *1
Direct connection (peer-to-peer) with no LAN connection	Local area network (LAN) with no Internet connection
Configuration Case 3 *1
Local area network (LAN) with Internet connection

Available functions	Configuration Case 1		Configuration Case 2		Configuration Case 3
Available functions	PC (#1)	Smart device (#1)	PC (#2) ^*1	Smart device (#2)	PC (#3) ^*1	Smart device (#3)	PC (#4)	Smart device (#4)
Control of full functions	Ο		Ο		Ο		Δ^*2
Control of simple functions (Start/Stop, Sampling, Alarm)		Ο		Ο		Ο		Δ^*2
Display Waveform/Digital value	Ο	Ο	Ο	Ο	Ο	Ο	Δ^*2	Δ^*2
Save data to PC	Ο		Ο		Ο		Δ^*2
Receive message via email					Ο	Ο	Ο	Ο

Ο:Function is available. Δ:Function is available in the condition.

Note:
*1: Multiple PC cannot make connection to the same GL100 simultaneously.
*2: Assign a static global IP. Or DDNS service must be available within network and the GL100 configured as a device within the WAN.

When the router has the static IP address, it is able to access from the Internet (WAN) using the static IP address.
When the DDNS (Dynamic Domain Name Server) is used, the ISP provide the DDNS service and the router supports the DDNS. The router will have the domain name. It is able to access from the Internet (WAN) using the domain name.

GL100-WL, GL100-N main unit specifications
Item	Description
Number of channels	Varies by the input module used, and measurement type is fixed with each input module
Input method, Type of input terminal
Output signal	Alarm (1 channel), solid state switch with optical isolation (Optocoupler, Max. load is the 30 V, 50 mA)
Interface to PC	USB (micro USB B type connector), Wireless LAN (WLAN) in GL100-WL
Wireless LAN (in GL100-WL)	Standards: IEEE802.11b, Communication distance: approx. 40 m * It varies by the condition of the LAN. Real-time transfer rate is up to 500ms. The WLAN is able to disable. (It is enabled in the factory default setting)
Storage device	Built-in memory: RAM (Approx. 4.9 MB) External memory: microSD memory card * Maximum file size for captured data is 1.9MB. It is recommended to use the microSD memory card that supports sleep mode. (Example: TS4GUSDHC4, made by Transcend)
Display	LCD (backlit monochrome, graphical type 128 x 64 dots) Contents: Captured data and Setting menu (Stored data is not able to replay. It is able to replay using the PC application software.)
Functions	• Real-time data capturing • Display the captured data value to the LCD in real-time and save the monitoring values • Set conditions using the Menu setting
	While using USB port: • Output captured data in real-time • Output the saved data from the internal memory • Full control of the GL100 from the PC application software
	While using Wireless LAN (in GL100-WL): • Output captured data in real-time • Output the saved data from the internal memory • Full control of the GL100 from the PC application software • Simple control of the GL100 from the application software of Smart Device • Send warnings via the e-mail
Alarm	• Action Outputs the signal when the measuring data reaches the present conditions of alarm • Source Level of measuring data • Detecting method Condition: Higher or lower (signal is higher or lower than the threshold) Combination: OR
Trigger	• Action Start or stop the recording of captured data by trigger • Source Start trigger: OFF, Level (), Alarm, or Date Stop trigger: OFF, Level (), Alarm * Level trigger is available in the analog input of the GS-4VT, GS-4TSR, and GS-3AT module. • Detecting method of the Level (*) Condition: Rising or Falling (signal is passed through the threshold) Combination: OR or AND
Dustproof and waterproof	IP54 compatible () It is effective only in the condition that the input module is set to the GL100 and then the covers of connector and battery are closed. It is recommended to replace the packing of cover in periodically.
Power source	• Alkaline battery (AA size x 2) • USB bus-power (5V, 200 mA) () When AC adapter for USB device is used, the required power capacity is 5V, 1A. Battery and AC adapter is not included.
Operating environment	Temperature: -10 °C to 50 °C Humidity: up to 80 % RH (non condensed)
External dimension [W x D x H]	Approx. 66 x 100 x 27 mm (exclude protrusion)
Weight	GL100-N: Approx. 125 g, GL100-WL: Approx. 130 ｇ

Temperature & Humidity sensor (GS-TH) input module
Item		Description
Type of measurement	Actual measuring	Temperature and Humidity
	Calculated value	Dew-point temperature and Accumulated temperature (The temperature will be accumulated during it is higher or lower than the reference temperature.)
Method of measurement		C-MOS sensor
Measuring range	Temperature	-20 to 85 °C
	Humidity	0.0 to 100.0 % RH
Accuracy	Temperature	-20 ≤ TS < 0: ± 0.8 °C 0 ≤ TS ≤ 60: ± 0.5 °C 60 < TS ≤ 85: ± 0.8 °C
	Humidity	at 25 °C Measuring 0 to 10 % RH: ± 10% RH Measuring 10 to 20 % RH: ± 8% RH Measuring 20 to 80 % RH: ± 5% RH Measuring 80 to 90 % RH: ± 8% RH Measuring 90 to 100 % RH: ± 10% RH
Response		Temperature, Humidity: Approx. 100 seconds (Time to reach 63%, at 25 °C and air flow 1 m/s) * It varies by environment condition.
Sampling interval		0.5, 1, 2, 5, 10, 20, 30 seconds, 1, 2, 5, 10, 20, 30, 60 minutes
Unit of temperature measurement		Switchable °C and °F
Water resistance		Protect by waterproof filter at the sensing part
Operating environment		Within temperature and humidity measurement range (When sensor is attached directly to the GL100, it is the same specifications as the GL100.)
External dimension [W x D x H]		Approx. 15 x 45 x 10 mm (exclude protrusion)
Weight		Approx. 14 g

Acceleration & Temperature sensor (GS-3AT) input module
Item		Description
Type of measurement		Tri-axial aceleration (X-, Y-, Z-axis) and Temperature
Measuring range	Acceleration	±2 G (20m/s²), ±5 G (50m/s²), ±10 G (10m/s²)
	Temperature	-10 to 50 °C (using C-MOS sensor)
Accuracy	Acceleration	±2 % of F.S. (including non linearity)
	Temperature	-10 ≤ TS < 50: ± 1.0 °C
Response (acceleration measurement)		0 Hz to 100 Hz
Measuring mode		Memory, or Direct mode
Memory capacity		16, 32, 64, 128 k Samples (for memory mode)
Pre-trigger		10, 25, 50, 100 % of selected memory capacity, and OFF (function is available for memory mode)
Sampling interval		Memory mode: 5, 10, 20, 50, 100 ms Direct mode: 0.5, 1, 2, 5, 10, 20, 30 seconds, 1, 2, 5, 10, 20, 30, 60 minutes
Calculation function (in Direct mode)		Function: The data is captured in every 5ms interval, and then the result of calculation between selected interval will be saved. Type of calculation: Average, Peak, RMS, or OFF (selected one value will be saved)
Unit of temperature measurement		Switchable °C and °F
Offset adjustment function		OFF, ON (sets the static acceleration value of current to zero)
Dustproof and waterproof		IP54
Length of cable		Approx. 200 mm
Operating environment		Temperature: -10 °C to 50 °C Humidity: up to 80 % RH (non condensed)
External dimension [W x D x H]		Approx. 51 x 36 x 20 mm (exclude protrusion)
Weight		Approx. 64 g

Illuminance & Ultraviolet sensor (GS-LXUV) input module
Item		Description
Type of measurement	Actual measuring	Illuminance and UV intensity
	Calculated value	Accumulated illuminance and Accumulated UV intensity
Measuring range	Illuminance	0 lx to 200 k lx
	UV intensity	0 to 30 mW/cm²
Measuring accuracy	Illuminance	±5 % at 25 °C (Temperature characteristic: 5 % at 10 °C to 40 °C)
	UV intensity	±5 % at 25 °C (Temperature characteristic: 5 % at 10 °C to 40 °C)
Response		1 ms or less
Accumulating function	Illuminance	0 to 99999 k lxh (Accumulated value is reset by starting the data recording or pressing the QUIT key.)
	UV intensity	0 to 99999 mW/cm²h (Accumulated value is reset by starting the data recording or pressing the QUIT key.)
Sampling interval		0.5, 1, 2, 5, 10, 20, 30 seconds, 1, 2, 5, 10, 20, 30, 60 minutes
Length of cable		Approx. 200 mm
Operating environment		Temperature: -10 °C to 50 °C Humidity: up to 80 % RH (non condensed)
External dimension [W x D x H]		Approx. 46 x 66 x 19 mm (exclude protrusion)
Weight		Approx. 65 g

Carbon dioxide (CO2) sensor (GS-CO2) input module
Item	Description
Type of measurement	Carbon dioxide concentration
Method of measurement	NDIR (Non Dispersive Infra-red)
Measuring range	0 to 9999 ppm
Measuring accuracy	±0.5 % of reading + 30 ppm (in range of 0 to 5000 ppm)
Response	3 minutes or less
Sampling interval	0.5, 1, 2, 5, 10, 20, 30 seconds, 1, 2, 5, 10, 20, 30, 60 minutes (Sensing of carbon dioxide is done at interval of 2 seconds or slower. When sampling is selected to 0.5 or 1 second, the same value is recorded in each time and then value is updated every 2 seconds.)
Length of cable	Approx. 200 mm
Operating environment	Temperature: 0 °C to 50 °C Humidity: up to 80 % RH (non condensed)
External dimension [W x D x H]	Approx. 66 x 100 x 25 mm (exclude protrusion)
Weight	Approx. 99 g

AC Current sensor Adapter (GS-DPA-AC) input module & AC Current sensor
Item		Description
Type of measurement	Actual measuring	Current (using optional AC current sensor)
	Calculated value	Power, Accumulated power (Electric energy)
Type of sensor		Clamp-on current probe (optional)
Application circuit		Single-phase two-wire, Single-phase three-wire, or Three-phase three-wire
Number of sensor		Two (2) sensors are able to connect (using the same type of sensor and the power system)
Method of measurement		Scans channels (sensors), Non-isolated input, using RMS converter
Measuring range		50, 100, 200 A RMS (varies by the sensor)
Applicable frequency		50 or 60 Hz
Measuring accuracy		±2 % of full sale ± 1 digit (at temperature 23 °C, and within rated current and frequency)
Sampling interval		0.5, 1, 2, 5, 10, 20, 30 seconds, 1, 2, 5, 10, 20, 30, 60 minutes
Length of cable		Approx. 200 mm
Operating environment		Temperature: -10 °C to 50 °C Humidity: up to 80 % RH (non condensed)
External dimension [W x D x H]		Approx. 46 x 66 x 27 mm (exclude protrusion)
Weight		Approx. 55 g

General Specifications
Item	Description
GS-AC50A	Rated measuring current: 50 A AC (Length of cable to adapter is approx. 200 mm)
GS-AC100A	Rated measuring current: 100 A AC (Length of cable to adapter is approx. 200 mm)
GS-AC200A	Rated measuring current: 200 A AC (Length of cable to adapter is approx. 200 mm)

Voltage & Temperature Input Terminal (GS-4VT) input module
Item	Description
Type of measurement	Analog voltage or Temperature, Logic (signal pattern) or Pulse (instant or accumulated count)
Number of channel	Voltage/Temperature: 4 channels (measurement type for channels can each be separately selected) Logic/pulse: 4 channels (measurement type for channels can be selected as set of 4 channels)
Input method of voltage/temp.	Scans by the photo-MOS-relay, all channels isolated input
Measuring range of voltage	20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50 V F.S. and 1-5V F.S.
Measuring accuracy	0.15 % of F.S.
Input impedance	1 M ohms
Maximum input voltage	Between positive ("+") and negative ("-") input terminal: 60 V Between negative ("-") terminal of channels: 60 V Between negative ("-") terminal of channel and "GND": 60 V
Withstand voltage	Between negative ("-") terminal of channels: 350 V p-p (1 minute) Between negative ("-") terminal of channel and "GND": 350 V p-p (1 minute)
Measuring range of temperature	Thermocouple: K type -200 °C to 1370 °C, T type -200 °C to 400 °C
Measuring accuracy	K type -200 ≤ TS ≤ -100 °C: ± (0.05% of reading + 2.0 °C) -100 < TS ≤ 1370 °C: ± (0.05% of reading + 1.0 °C) T type -200 ≤ TS ≤ -100 °C: ± (0.1% of reading + 1.5 °C) -100 < TS ≤ 400 °C: ± (0.1% of reading + 0.5 °C) Reference Junction Compensation (R.J.C.): ± 0.5 °C
Burnout checking	Displaying warning when Thermocouple has failed
Unit of temperature measurement	Switchable °C and °F
Input of Logic/Pulse	Input signal: Voltage or Dry contact signal Voltage input: 0 to +24V (common ground) Dry contact signal: Relay or Solid state relay Threshold voltage: Approx. +2.5V, Hysteresis: Approx. 0.5V (Status of the signal is changed in the 2V and the 2.5V.)
Measuring rage of Pulse	Instant count: up to 200 counts/sampling interval Accumulated count: up to 65535 counts (Accumulated value is reset by starting the data recording or pressing the QUIT key.)
Sampling interval	0.5, 1, 2, 5, 10, 20, 30 seconds, 1, 2, 5, 10, 20, 30, 60 minutes
Length of cable	Approx. 200 mm
Operating environment	Temperature: -10 °C to 50 °C Humidity: up to 80 % RH (non condensed)
External dimension [W x D x H]	Approx. 46 x 66 x 36 mm (exclude protrusion)
Weight	Approx. 85 g

Thermistor Sensor Input Terminal (GS-4TSR) input module
Item	Description
Type of measurement	Temperature, Logic (signal pattern) or Pulse (instant or accumulated count)
Number of channel	Temperature: 4 channels (measurement type for channels can each be separately selected) Logic/pulse: 4 channels (measurement type for channels can be selected as set of 4 channels)
Input method of temperature	Scans by the photo-MOS-relay, all channels non-isolated input
Temperature sensor	Thermistor (optional)
Measuring range	Temperature: -40 to 120 °C (varies by the type of sensor) (Sensor GS-103AT-4P: -40 to 105 °C, GS-103JT-4P: -40 to 120 °C)
Measuring accuracy	• GL100 main body -40 ≤ TS < 0 °C: ± 0.7 °C 0 ≤ TS ≤ 35 °C: ± 0.2 °C 35 < TS ≤ 70 °C: ± 0.4 °C 70 < TS ≤ 120 °C: ± 1.0 °C • Thermistor sensor (GS-103AT-4P or GS-103JT-4P) Typical ± 0.4 °C
Unit of temperature measurement	Switchable °C and °F
Input of Logic/Pulse	Input signal: Voltage or Dry contact signal Voltage input: 0 to +24V (common ground) Dry contact signal: Relay or Solid state relay Threshold voltage: Approx. +2.5V, Hysteresis: Approx. 0.5V (Status of the signal is changed in the 2V and the 2.5V.)
Measuring rage of Pulse	Instant count: up to 200 counts/sampling interval Accumulated count: up to 65535 counts (Accumulated value is reset by starting the data recording or pressing the QUIT key.)
Sampling interval	0.5, 1, 2, 5, 10, 20, 30 seconds, 1, 2, 5, 10, 20, 30, 60 minutes
Length of cable	Approx. 200 mm
Operating environment	Temperature: -10 °C to 50 °C Humidity: up to 80 % RH (non condensed)
External dimension [W x D x H]	Approx. 46 x 66 x 36 mm (exclude protrusion)
Weight	Approx. 83 g

Dual port adapter (GS-DPA) input module
Item	Description
Number of sensors	Two (2) sensors
Connectable sensors	GS-TH (Temp./Humidity), GS-CO2 (Carbon dioxide (CO2)), GS-LXUV (Illuminance & Ultraviolet) It is not able to connect two sensors of the same type.
Length of cable	Approx. 200 mm
Operating environment	Temperature: -10 °C to 50 °C Humidity: up to 80 % RH (non condensed)
External dimension [W x D x H]	Approx. 46 x 66 x 27 mm (exclude protrusion)
Weight	Approx. 68 g

Module Extension Cable (GS-EXC)
Item	Description
Connectable input module	All types of input module Cable is connected between the input module and the GL100.
Length of cable	Approx. 1.5 m
Operating environment	Temperature: -10 °C to 50 °C Humidity: up to 80 % RH (non condensed)

Tech Specs

Dataloggers / Data Acquisition/Current Dataloggers Template
Battery Life	2 WEEKS (336.92 HR)
Max Current	50 A
Power Source	AC Line, Battery, USB Powered
# Inputs/Channels	2
LCD Screen	Yes
Type	AC
Dataloggers / Data Acquisition/Power Dataloggers Template
Current Range Max	50 A
Memory	4.9 MB (5017.6 kB)
# Current Inputs	2
Test Equipment General Attributes
Interfaces I/O	LAN / Ethernet, Wifi, USB
Storage	Internal Memory
IP Rating	IP54
Data Logging	Yes
Battery Type	AA
Country of Origin	Japan

0

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Compare

Real people, here to help you.

Get Connected

Join the community and find out what we're up to, experience live product releases, webinars and more!

How Can We Help You?

Questions?

Log in to Your Account

Not a member yet? It's FREE!

Top Categories

Graphtec GL100-WL-DPA-AC50A - Wireless Data Logger with AC Current Sensor with Max 50A Current Sensor

Recommended for you

Accessories

for the Graphtec GL100-WL-DPA-AC50A

Graphtec GS-AC100A AC current sensor, Clamp-on type (max. 100 A AC), use with...

Graphtec GS-AC200A AC current sensor, Clamp-on type (max. 200 A AC), use with...

Graphtec GS-AC50A AC current sensor, Clamp-on type (max. 50 A AC), use with GS-DAP-AC...

Graphtec GS-CO2 Carbon dioxide sensor, CO2 concentration (max. 9999 ppm)

Graphtec GS-DPA Dual port adapter

Graphtec GS-4TSR Thermister input terminal, Thermistor (max. 120 C) and 4 ch. of logic...

Graphtec GS-103JT-4P Thermistor sensor (Ultrathin type), Temperature sensor (-40 to...

Graphtec GL100-WL-DPA-AC50A - Wireless Data Logger with AC Current Sensor with Max 50A Current Sensor

Easy measurement by multifunction input

Dual port adapter connects up to two modules for simultaneous interface

GL100-WL / N

GL100-WL / N

GL100-WL / N

Providing a variety of sensors and input terminals corresponding to the application.

Packages will include combined models best suited for your application

Available the software for PC & Smart devices

General-purpose software for PC

General-purpose software for the Smart devices

Industry-specific software (for PC and Smart device)

Possible to check the data in multiple method

Tech Specs

Dataloggers / Data Acquisition/Current Dataloggers Template

Dataloggers / Data Acquisition/Power Dataloggers Template

Test Equipment General Attributes

0

Featured Review

We'd love to hear from you

Real people, here to help you.

Get Connected

My Account

Promotions & Offers

Resources

Company
