Used with steady state voltage AC level. Support single phase 2-wire, single-phase 3-wire, and 3-phase 3-wire connection. Reads Power with adjustable power factor. Can Add one additional GS-AC sensor (50A, 100A, or 200A).

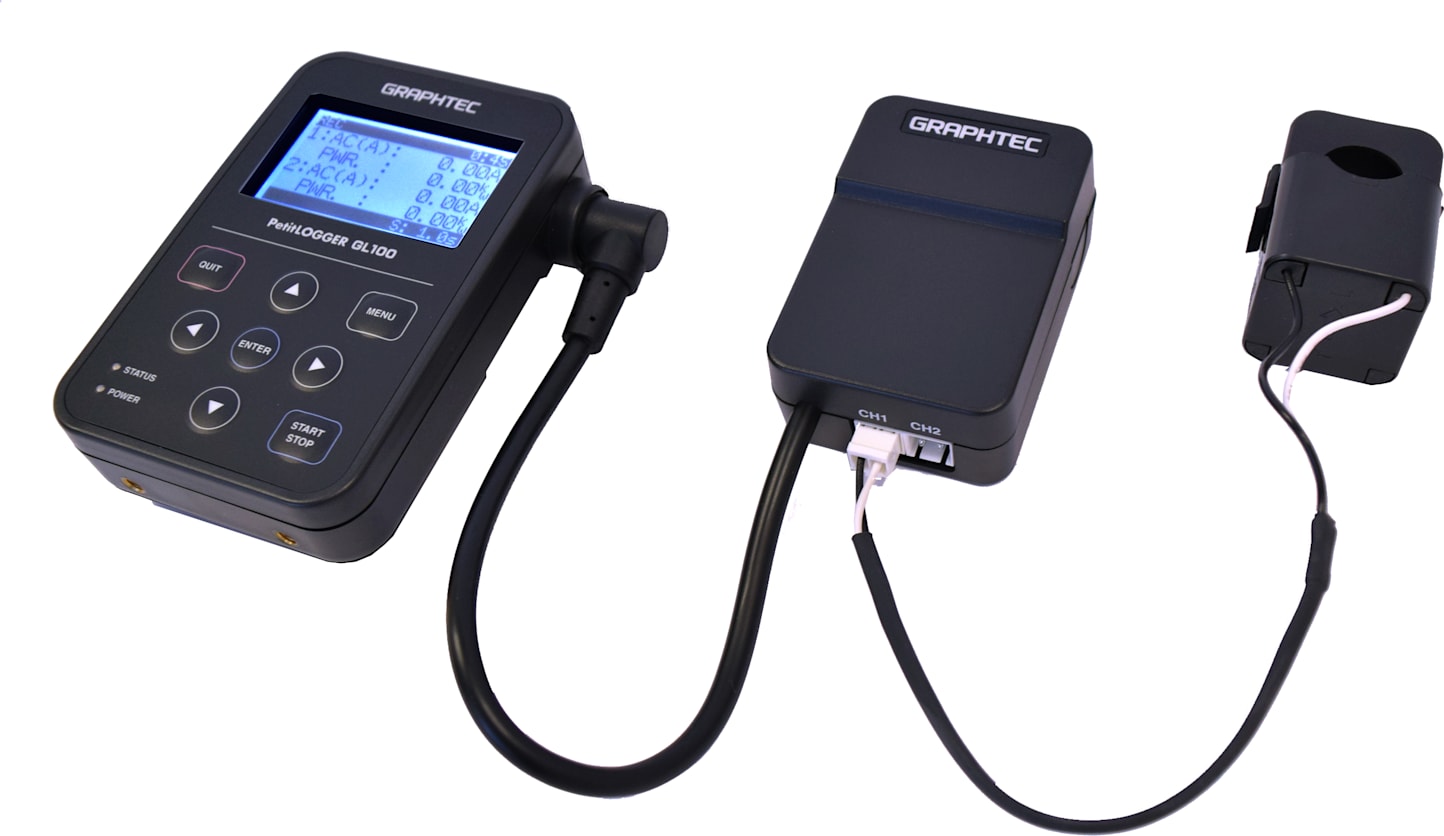

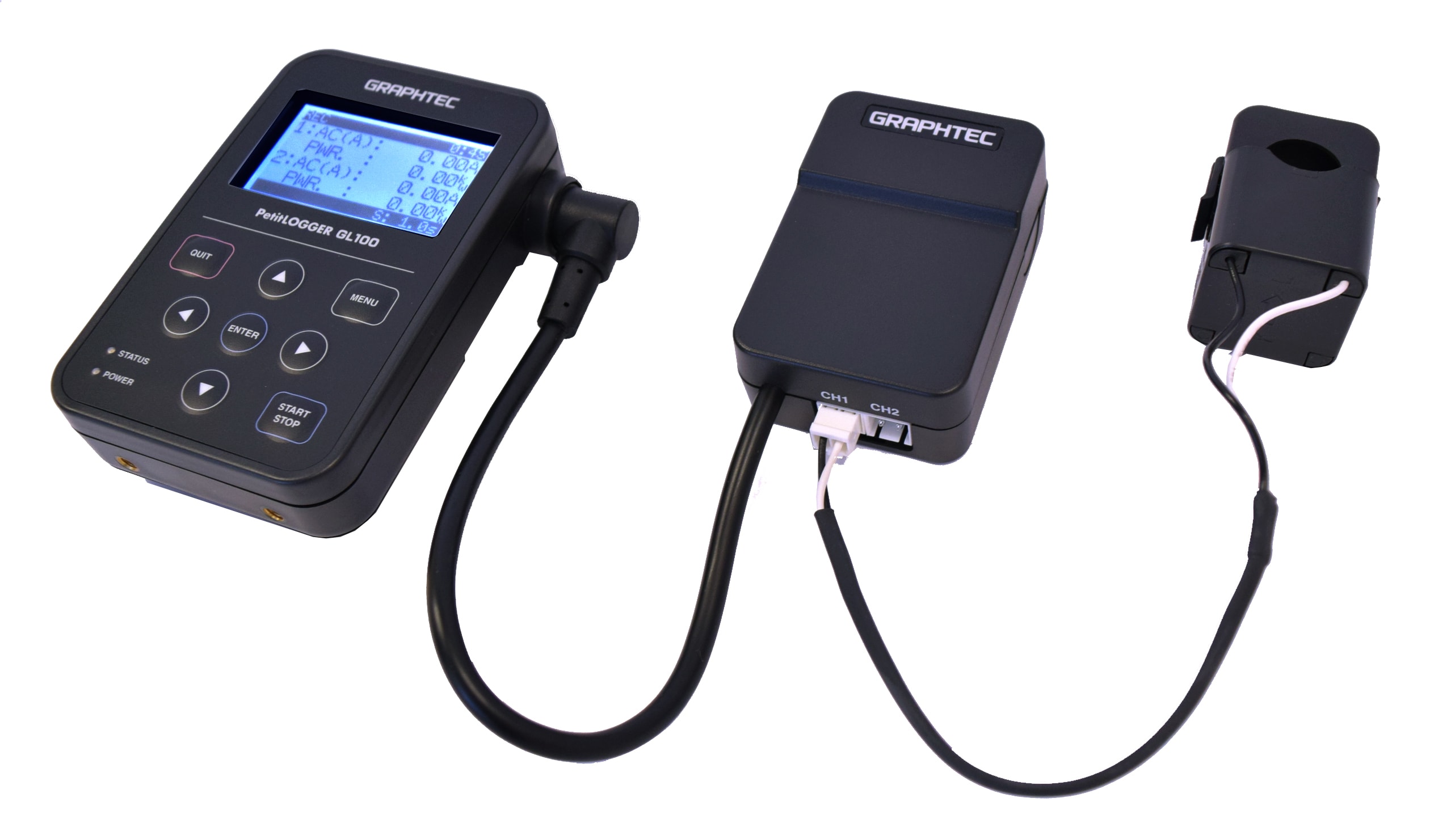

The Graphtec GL100-WL-DPA-AC100A is modular type that is able to support variety measurement by exchanging the input module. Multiple sensors and the input terminal are available for corresponding to the application.

Easy measurement by multifunction input

The input module can be expanded to accommodate a wide variety of measurements

Dual port adapter connects up to two modules for simultaneous interface

Providing a variety of sensors and input terminals corresponding to the application.

There is the following input module.

Number of channels and measurement type are fixed with each input module.

Sensor
No.	Input module	Measurement (actual sensing)	Measurement (calculated value)
1	Temp./Humidity sensor GS-TH	Temperature (-20 to 85 ºC), Humidity (0 to 100 % RH)	Accumulated temperature, Dew-point temperature
2	Acceleration/Temp. sensor GS-3AT	Acceleration in 3-axis (max. 10 G), Temperature (-10 to 50 ºC)	N/A
3	Illuminance/UV sensor GS-LXUV	Illuminance (max. 200 k lx), UV intensity (max. 30 mW/cm2)	Accumulated Illuminance, Accumulated UV intensity
4	Carbon dioxide sensor GS-CO2	CO2 concentration (max. 9999 ppm)	N/A



Input terminals / Adapter
No.	Input module	Measurement (actual sensing)	Measurement (calculated value)
5	Voltage/Temp. input module GS-4VT	Voltage (max. 50 V) or Temp. (TC: K/T type) of 4 ch, Logic or Pulse of 4 ch
6	Temperature input terminal GS-4TSR	Thermistor (max. 120 ºC) of 4 ch, Logic or Pulse of 4 ch
7	Thermistor sensor GS-103AT-4P	Temperature sensor (-40 to 105 ºC), Normal type use with GS-4TSR module
8	Thermistor sensor GS-103JT-4P	Temperature sensor (-40 to 120 ºC), Ultrathin type use with GS-4TSR module
9	AC current sensor adapter GS-DAP-AC	AC current, 2 sensors are able to connect (*1)	Power (instantaneous), Integrated power (Electric energy)
10	AC current sensor GS-AC50A	Clamp-on type (max. 50 A AC), use with GS-DAP-AC module
11	AC current sensor GS-AC100A	Clamp-on type (max. 100 A AC), use with GS-DAP-AC module
12	AC current sensor GS-AC200A	Clamp-on type (max. 200 A AC), use with GS-DAP-AC module
*1: it is required to use the same type sensor and it is used in the same power system of the single- or three-phase.

Packages will include combined models best suited for your application

GL100 will feature package solutions that combines several sensors and modules together for a one stop solution as an out-of-box-ready item for the specific application that best fits your need.

Available the software for PC & Smart devices

The GL100 is able to use with the PC or the Smart devices. The data on the GL100 can be monitored using the software.

General-purpose software for PC

General purpose application software will continue to have the ability to view in Y-T chart, waveform, and digital values. It is able to be also controlled the GL100 in real-time.

General-purpose software for the Smart devices

General purpose application software has the ability to view in Y-T chart and digital values. The displayed information will be refreshed by request. The simple settings of GL100 are able to control.

*It is available for the Android OS and the iOS in the Google Play or App Store.

Supported OS : Android 4.1 to 6.0, iOS 7 / 8 / 9 (up to 9.3.4)

The most recent captured data is displayed in the digital value, trend graph or the alarm history. It is updated by operation of synchronous.

Industry-specific software (for PC and Smart device)

The new industry-specific customize software will feature targeted software in accommodating users with indicators that are specific and familiar to that industry.

Possible to check the data in multiple method

Wireless access will support multiple configurations for both secured and world wide internet access.

The following configuration is available to communicate with the GL100. The available function varies by the configuration.


Configuration Case 1	Configuration Case 2 *1
Direct connection (peer-to-peer) with no LAN connection	Local area network (LAN) with no Internet connection
Configuration Case 3 *1
Local area network (LAN) with Internet connection



Available functions	Configuration Case 1		Configuration Case 2		Configuration Case 3
	PC (#1)	Smart device (#1)	PC (#2) *1	Smart device (#2)	PC (#3) *1	Smart device (#3)	PC (#4)	Smart device (#4)
Control of full functions	Ο		Ο		Ο		Δ*2
Control of simple functions (Start/Stop, Sampling, Alarm)		Ο		Ο		Ο		Δ*2
Display Waveform/Digital value	Ο	Ο	Ο	Ο	Ο	Ο	Δ*2	Δ*2
Save data to PC	Ο		Ο		Ο		Δ*2
Receive message via email					Ο	Ο	Ο	Ο

• When the router has the static IP address, it is able to access from the Internet (WAN) using the static IP address.
• When the DDNS (Dynamic Domain Name Server) is used, the ISP provide the DDNS service and the router supports the DDNS. The router will have the domain name. It is able to access from the Internet (WAN) using the domain name.
