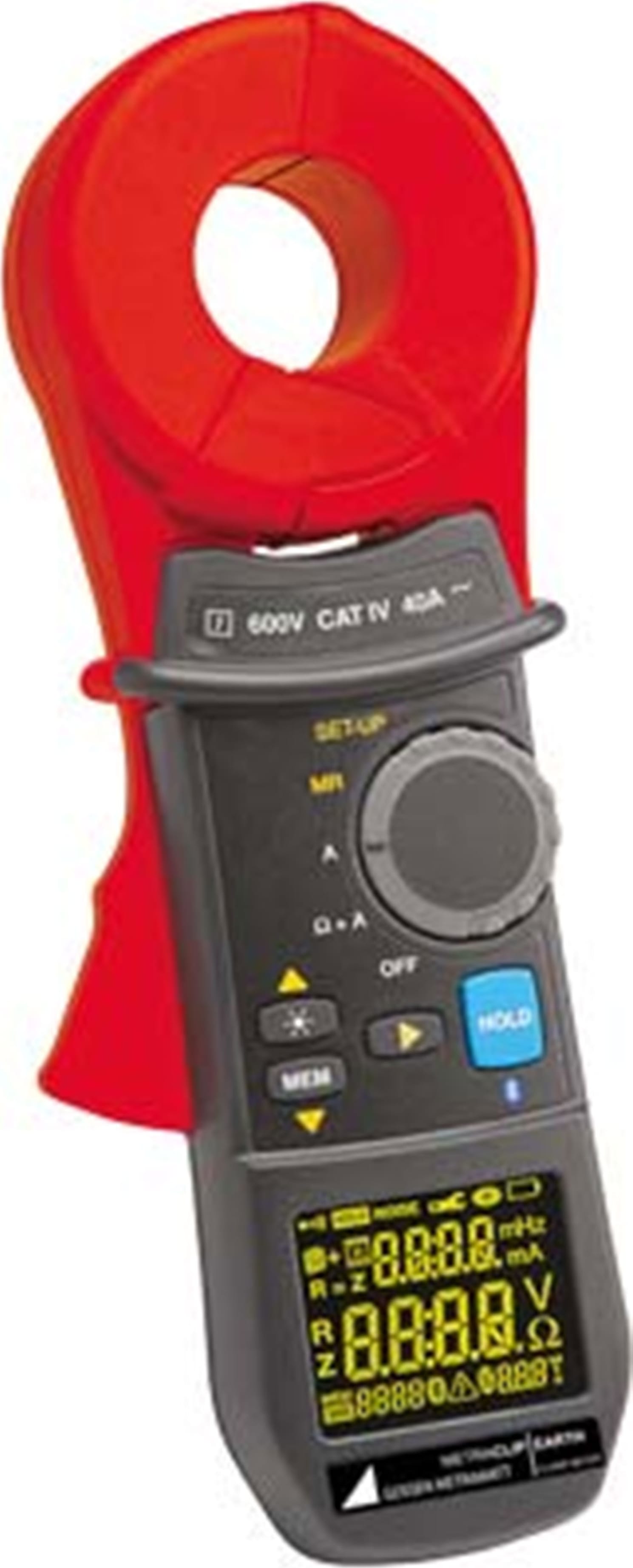

Earth Clamp Meter
The earth clamp meter can be used to test the resistance of any conductive system which demonstrates loop characteristics. The following measurements are possible:
Earth resistance measurement if grounding is connected in series to the equipotential bonding conductor.
Other earth measurements, for example, via overhead ground wires or interconnected transmission towers for power transmission or telecommunications.
Measurements at distributed ground connections with a common ground plane.
Standard or Advanced Operating Mode
The earth clamp meter has two operating modes:
In the standard model, the clamp functions like a conventional loop ohmmeter.
Additional measuring functions are available in the advanced mode:
Impedance measurement adjusted to the selected frequency
Calculation of touch voltage
Display of ohmic and inductive components of the measured impedance
Storage and Transmission of Measurement Results
Up to 2000 measured values can be stored on the device along with time and date (real-time clock for timestamp) and can be subsequently read out or transmitted via Bluetooth.
