Clamp Multimeter for Current, Voltage, Power, Harmonics, and Frequency, 600 V CAT IV

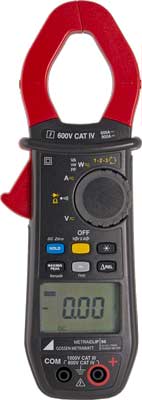

The METRAclip 86 clamp multimeter meets all of the expectations of operations in the electrical trades and is suitable for applications in the low-voltage range with low to medium power values, e.g. maintenance of electrical installations and machinery, troubleshooting, installation of heating and air conditioning systems and measurement of motor starting current.
Features in Detail
Display Memory (data hold)
The momentary measured value can be “frozen” at the display.
Data Logging (max., min., peak)
Measured values can be stored for long-term observation of measured quantities. At the same time, maximum, minimum, and peak values are acquired for the duration of the selected recording time.
True Inrush
Measurement of motor starting current characteristics based on the relationship between amplitude and time.
This function makes it possible to track rapid current changes of the damped sinusoidal oscillation type by measuring successive TRMS values which are calculated over ½, 1, 2½, 5, and 10 periods based upon the largest calculated TRMS value and are refreshed via a half-wave.
Relative and Differential Measurements
A momentary measured value can be saved as a reference value. A differential value based on the momentary measured value and the reference value can be generated and displayed for each following measurement. Alternatively, the differential value can be related to the reference value and displayed as a relative value as a percentage for each following measurement.
Safety Devices:
Visual indication is provided in the event that the measuring range is exceeded.
An intermittent acoustic signal warns the user of voltages that are equal to or larger than the safety voltage of 1000 VDC or TRMS.
Automatic Shutdown
The device is shut down automatically in the event that none of the keys or the rotary switch are activated for a duration of 10 minutes. The automatic shutdown can be deactivated.
