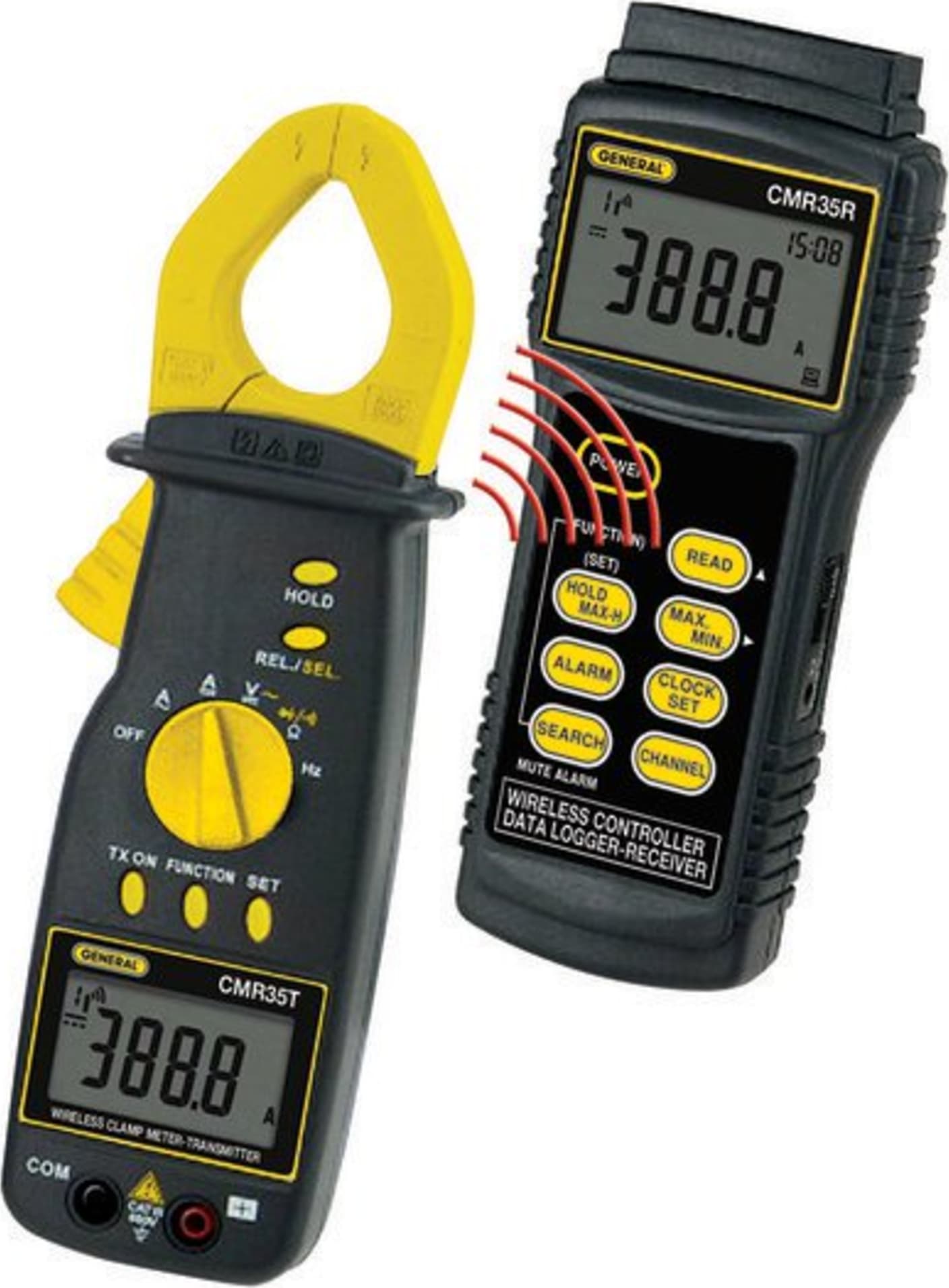

General CMR35A Wireless TRMS Clamp Meter/Data Logging System (912.4 MHz)

Name: General CMR35A Wireless TRMS Clamp Meter/Data Logging System (912.4 MHz)
Brand: General Tools
SKU: GeneralCMR35A
Price: 319.32 USD
Availability: InStock

0 reviews | UPC: 681035014967 | Model: General Tools CMR35A

Compare

WIRELESS CLAMP METER & RECEIVER W/ DISPLAY FOR REMOTE READING 912MZ

Collects data from up to six clamp meters/transmitters (available as options) operating on different channels
Software displays four windows: A main monitor (dashboard), separate tabular and graphic displays of up to six logs, and a running estimate of monitored equipment's power cost
Excel-formatted software facilitates USB data transfers to PC for storage and display
Wireless range of up to 333 ft. (100m) with no obstructions
Simultaneous Max, Min, and Hold functions
Hi or Lo audible alarm for voltage or current level
Adjustable transmission span (extends battery life)
Clamp meter also operates in standalone mode
Standard USB computer interface
Simultaneous, remote monitoring of up to six input voltages/currents
Improved workplace safety, via wireless monitoring of equipment in hard-to-access and/or hazardous locations
Convenience and more productivity (reduced labor costs)

View Product Details

List Price: $449.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

General Accessories
Line Splitters

for the General Tools CMR35A

General Tools FX3000 General Tools FX3000 Flex Clamp Adapter

Catalog: FX3000

(0)

In Stock!

Add to Cart

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

Applications:

Process Plants: Wirelessly monitor and log equipment (motor and fan) power consumption, eliminating a task from operator rounds
Power Plants, and Transmission and Distribution Facilities: Monitor high-voltage equipment from a safe distance
Building Maintenance: Identify and analyze two- or three-phase electrical circuits and circuit breakers with no need for a helper
HVAC: Measure and monitor voltage and current of compressors and blowers in inhospitable locations (hot attics and crawl spaces in summer/unheated areas in winter) from a climate-controlled location

Transmission Frequency	CMR35T: 910MHz / CMR35AT: 912.4MHz
Wireless Range	Up to 333ft.(100m) with no obstructions
Sampling Rate	3x/sec (not transmitting); 1x/sec (transmitting)
Operating Temperature/Humidity	14° to 122°F (-10° to 50°C)/80%R.H.max
Storage Temperature/Humidity	-4° to 140°F (-20° to 60°C)/70%R.H.max
Jaw Opening	30mm (1.18in.)
LCD Size	1.77(H) x 1.04 (W) in. (45 x 26.5 mm)
Voltage Measurement Range/Accuracy	0 to 600V(AC or DC)/0.75% plus 3 counts
Voltage Measurement Resolution	0.001V
Current Measurement Range/Accuracy	0 to 600A(AC or DC)/1% plus 5 counts
Resistance Measurement Range	0 to 40MΩ
Frequency Measurement Range	0 to 100kHz
Transmission Span	2, 10, 30, 60 or 120 seconds (user-selectable)
Input Impedance	10MΩ
Continuity Threshold	100Ω or less
Diode Check Voltage	1.5V (open circuit)
Safety Rating	CAT III 600V
Dimensions	8.66 x 2.52 x 1.38 in. (220 x 64 x 35mm)
Weight	8.85 oz. (251g)
Power Source	2 "AA" batteries or external 3VDC supply @ 10 mA
FCC approved	Yes
Reception Frequency	CMR35: 910MHz / CMR35AR: 912.4MHz
Wireless Range	333 ft. (100m) with no obstructions
Sampling Rate	3x/sec
Operating Temperature	14° to 122°F (-10° to 50°C)
Storage Temperature	-4° to 140°F (-20° to 60°C)
LCD Size	2.05 x 1.14 in. (52 x 29mm)
Dimensions	7.05 x 2.83 x 1.26 in. (179 x 72 x 32mm)
Weight	6.24 oz. (177g)
Power Source	2 "AA" batteries or external 3VDC supply @ 10 mA
Systems & Componenets
CMR35 System	FCC ID Y7YT0035G01 - 910 MHz
CMR35T	Wireless Clamp Meter-Transmitter
CMR35R	Wireless Controller Data Logger-Receiver
CMR35A System	FCC ID Y7YTA035G01 - 912.4 MHz
CMR35AT	Wireless Clamp Meter-Transmitter
CMR35AR	Wireless Controller Data Logger-Receiver

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	Yes
Maximum Current AC	600 A
Maximum Current DC	600 A
Maximum Voltage AC	600 V
Maximum Voltage DC	600 V
Resistance	Yes
Capacitance	No
Auto Ranging/Manual	Auto Ranging
In-Rush Current	No
Test Equipment General Attributes
Unique Features	• Collects data from up to six clamp meters/transmitters (available as options) operating on different channels • Software displays four windows: A main monitor (dashboard), separate tabular and graphic displays of up to six logs, and a running estimate of monitored equipment’s power cost • Excel-formatted software facilitates USB data transfers to PC for storage and display • Wireless range of up to 333 ft. (100m) with no obstructions • Simultaneous Max, Min, and Hold functions
Warranty	1 YEARS
Safety Approval	CE, RoHS
Interfaces I/O	USB
Product Weight	6.24 OUNCES (0.39 LBS) Product Weight 177gr
Product Height	1.26 IN
Product Length	7.05 IN Product Length (179 x 72 x 32mm)
Product Width	2.83 IN
Data Logging	Yes
Battery Type	AA
Country of Origin	United States
