| Detailed Specifications |
| |
Industrial-Commercial |
General use |
| Images |
![]() |
![]() |
![]() |
![]() |
| Model |
TiR125 |
TiR110 |

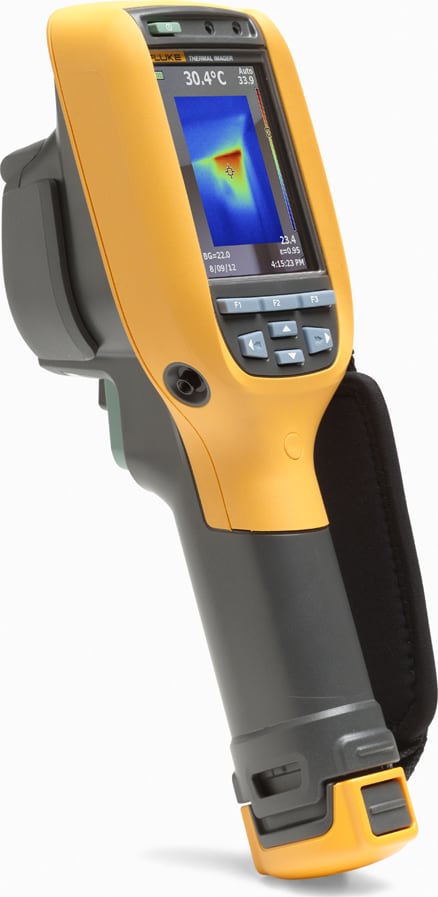

TiR105 |
Ti100 |
| IR resolution (FPA size) |
160 x 120 FPA Uncooled Microbolometer |
| Spectral band |
7.5 µm to 14 µm (long wave) |
| Capture or refresh rate |
9 Hz or 30 Hz versions |
9 Hz |
| NETD (Thermal sensitivity) |
≤ 0.10 °C at 30 °C target temp (100 mK) |
| FOV (Field of view) |
22.5 °H x 31 °V |
| IFOV (Spatial resolution) |
3.39 mRad |
| Temperature measurement range (not calibrated below -10 °C) |
-20 °C to +350 °C (-4 °F to +662 °F) |
-20 °C to +250 °C (-4 °F to +482 °F) |
| Temperature measurement accuracy |
± 2 °C or 2 % (at 25 °C nominal, whichever is greater) |
| Focus mechanism |
IR-OptiFlex focus system |
Focus-free 1.2 m (4 ft) and beyond |
| IR-Fusion® technology |
PIP, FULL IR, FULL VISIBLE, AutoBlend |
PIP, FULL IR, FULL VISIBLE |
PIP (1.2 m (4 ft) to 4.6 m (15 ft)), FULL IR, FULL VISIBLE |
No, full IR only |
| Color alarms |
High temperature, low temperature, isotherm |
High temperature |
— |
| Standard palettes |
Blue-Red, Grayscale, Inverted Grayscale, High-contrast, Hot Metal, Ironbow, Amber, Inverted Amber |
Blue-Red, Ironbow, Grayscale, Amber |
| Ultra Contrast palettes |
Blue-Red, Grayscale, Inverted Grayscale, High-contrast, Hot Metal, Ironbow, Amber, Inverted Amber |
Blue-Red, Grayscale, Ironbow |
— |
| Hot/cold markers |
Yes |
— |
| User definable spot markers |
Three on camera and in SmartView |
in SmartView only |
| Centerbox (MIN/AVG/MAX) |
Yes |
— |
| Level and span control |
Manual and auto |
| Minimum span in auto mode |
5 °C |
| Minimum span in manual mode |
2.5 °C |
| Minimum IR focus distance |
15.25 cm (6 in) |
1.2 m (4 ft) |
| Weight |
0.726 kg (1.6 lb) |
| Size |
28.4 x 8.6 x 13.5 cm (11.2 x 3.4 x 5.3 in) |
| LCD display |
3.5 inch diagonal (portrait format) |
| Visible camera |
2 megapixel industrial-grade |
N/A |
| Minimum automatic parallax correction |
~18-22 inches |
~122 cm (48 in) |
N/A |
| IR-PhotoNotes annotation system |
Yes (3 images) |
— |
| Laser pointer |
Yes |
| Torch |
Yes |
— |
| Electronic (cardinal) compass |
Yes |
— |
| Emissivity correction |
Yes |
| Transmission correction |
Yes |
— |
| Background (reflected) compensation |
Yes |
| Voice annotation (audio) |
Yes (60 seconds) per image |
— |
| Multi-mode video output |
Streaming USB video output (infrared, visible and IR-Fusion modes) |
— |
| Multi-mode video recording (standard avi w/ mpeg encoding) |
Yes (AVI with MPEG encoding, up to 5 minutes) |
— |
| Multi-mode video recording (radiometric .Is3) |
Yes, radiometric .is3 for approx.2.5 to 5 minutes depending upon thermal scene |
— |
| Memory review |
thumbnail review |
| Battery (field-replaceable, rechargeable) |
Two |
One |
| Battery life |
4+ hours (each)* |
| External battery charging base |
Yes |
Optional (accessory) |
| Charging power supply |
Yes |
| Drop test |
2 meter (6.5 feet) |
| Ingress protection (IP) rating (IEC 60529) |
IP 54 |
| Recommended Calibration cycle |
Two-years |
| Multifunction card reader |
Included |
— |
| Memory storage |
2 GB SD memory card |
| Direct download capability |
mini USB download direct to PC |
| Operating temperature range |
-10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature range |
-20 °C to +50 °C (-4 °F to 122 °F) |
| Operating humidity |
Operating and storage 10 % to 95 %, Non-condensing |
| Vibration and shock |
2G, IEC 68-2-26 and 25G, IEC 68-2-29 |
| Safety standards |
CSA (US and CAN): C22.2 No. 61010-1-04, UL: UL STD 61010-1 (2nd Edition), ISA: 82.02.01 |
| C Tick |
IEC/EN 61326-1 |
| EMI, RFI, EMC |
EN61326-1; FCC Part 5 |
| User manuals |
Czech, English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Dutch, and Hungarian |
| Standard warranty period |
Two-years |
| Extended warranty and service plans |
Yes |
| *Assumes 50% brightness of LCD |
