Fluke P5521-70M Liquid-to-Liquid Separator

Name: Fluke P5521-70M Liquid-to-Liquid Separator
Brand: Fluke
SKU: FlukeP5521-70M
Price: 4703.00 USD
Availability: InStock

0 reviews | Catalog: 4185715 | UPC: 095969638760 | Model: Fluke P5521-70M

Compare

LIQUID TO LIQUID SEPARATOR, 70 MPA (10K PSI)

P5521 - For pressures to 10,000 psi (700 bar)
P5522 - For pressures to 7,000 psi (480 bar) for Skydrol or other aggressive fluids

View Product Details

Your Price: $4,703.00

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options



Product	Fluke P5521-70M LIQUID TO LIQUID SEPARATOR, 70 MPA (10K PSI)	Fluke P5522-50M LIQUID TO LIQUID SEPARATOR, 50 MPA (7000 PSI), SKYDROL USE	Fluke P5523-20M LIQUID TO GAS INTERFACE, 20 MPA (3000 PSI)
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Choose a Category

(0)

In Stock!

Add to Cart

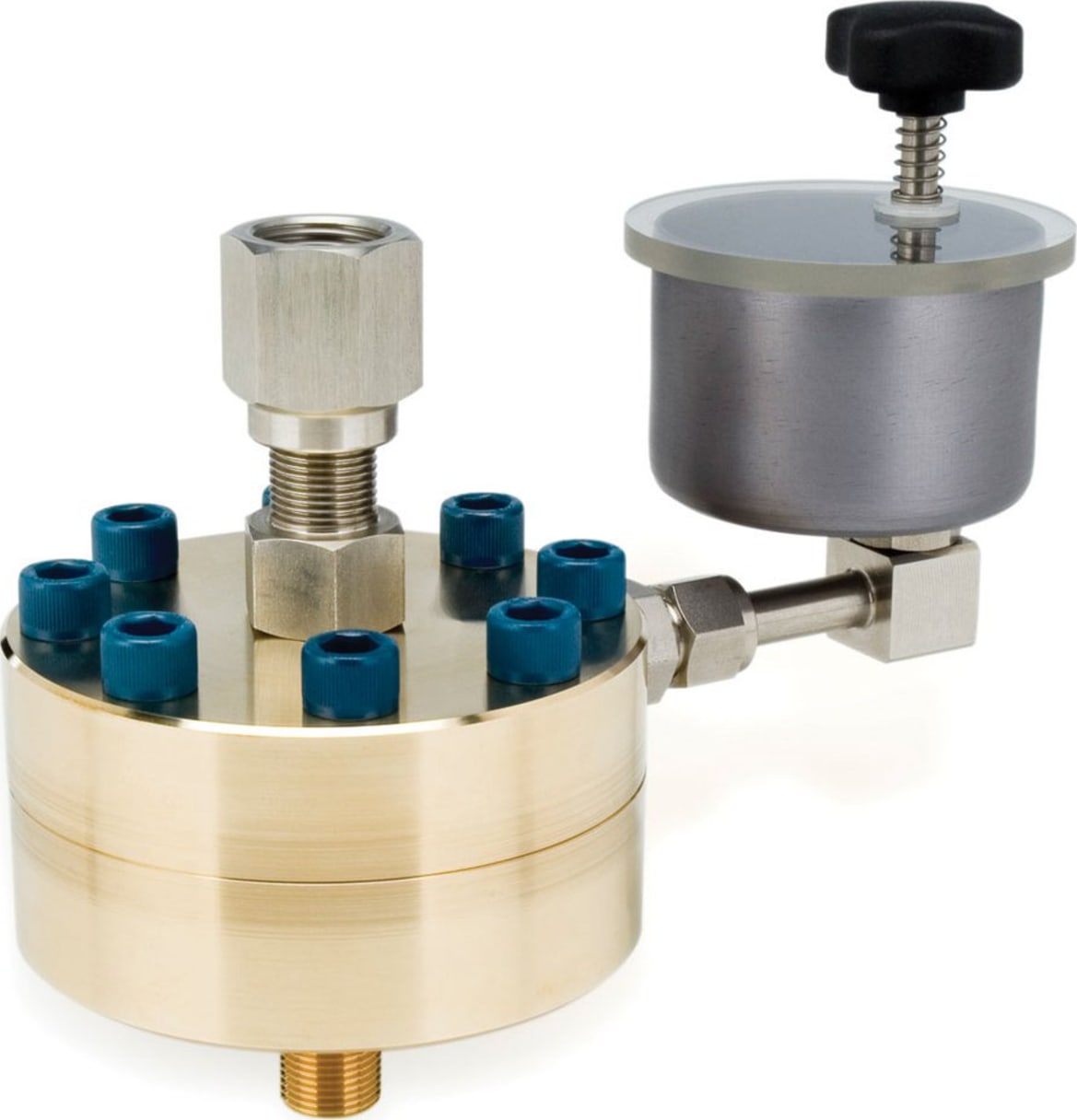

P5521-70M Liquid-to-Liquid Separator Pressure range 0 to 10,000 psi (700 bar)
These liquid-to-liquid separators connect directly to the test port of a hydraulic deadweight tester or comparison test pump. A flexible diaphragm separates the fluids, protecting the calibrator from contamination, and allows calibration of the device in its specific working fluid.

	Liquid to liquid Model P5521/5522	Liquid to gas Model P5523-20M
Pressure range	Model P5521: 0 psi to 10 000 psi (700 bar) Model P5522: 0 psi to 7 000 psi (480 bar) for Skydrol and other aggressive fluids	0 psi to 3 000 psi (210 bar)
Test port adapters	Uses adapters supplied with calibrator	Uses adapters supplied with calibrator
Weight	3.5 kg (7.5 lb)	11 kg (24 lb)
Dimensions	(W x H) 100 mm x 150 mm (4 in x 6 in)	(W x D x H) 440 mm x 300 mm x 215 mm (17.5 in x 12 in x 8.5 in)
Calibrator connection	3/8 BSP male (mating adapter supplied)
Gas supply connection		1/4 NPT female
Body material	Aluminum bronze
Diaphragm	5521- Viton ® 5522-Ethylene Propylene
Reservoir material	Hard-anodized aluminum

Test Equipment General Attributes
Product Height	4.00 IN
Product Length	7.25 IN
Product Width	7.00 IN
Country of Origin	United States
Shipping Height	4.00 IN
Shipping Length	7.25 IN
Shipping Width	7.00 IN
