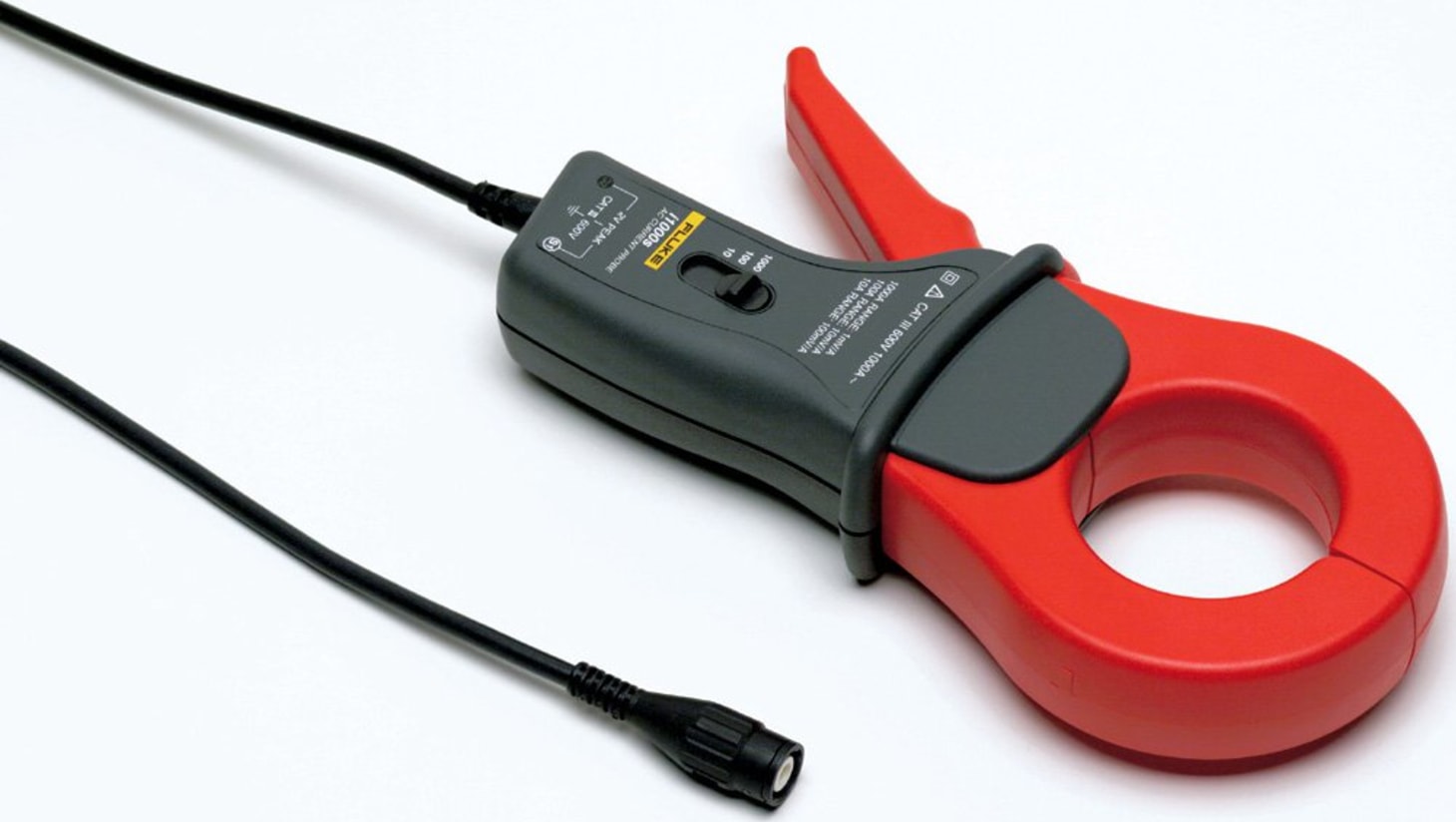

Fluke I1000S Current Clamp Adaptor

Name: Fluke I1000S Current Clamp Adaptor
Brand: Fluke
SKU: FlukeI1000S
Price: 637.94 USD
Availability: InStock

0 reviews | Catalog: 1568487 | UPC: 095969090476 | Model: Fluke I1000S

Compare

Fluke I1000S AC Current Clamp/BNC, 100mA-1000A AC Switchable

Allows accurate measurement of currents from 100 mA to 1000 A rms, 5 Hz to 100 kHz without breaking into the circuit
A passive filter eliminates noise and ring on rapidly rising di/dt waveform, ensuring accurate screen displays
Connects directly to an oscilloscope through a reinforced coaxial cable and an insulated BNC connector
Can be used with Multimeters with optional PM9081/001 BNC/Banana adapter
One year warranty

View Product Details

List Price: $749.99

Your Price: $637.94

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Recommended for you

Choose a Category

(11)

In Stock!

Add to Cart

Specifications
Nominal current range	10 A 100 A 1000 A
Continuous current range	0.1 A - 10 A 0.1 A - 100 A 1 A - 1000 A
Maximum Non-Destructive Current	2000 A
Lowest measurable current	0.1
Basic accuracy	1% + 1 A (48-65 Hz) (% reading + floorspec)
Useable frequency	5 Hz - 100 kHz
Output level(s)	100 mv/A 10 mv/A 1 mv/A
Safety Specifications
Safety	CAT III, 600 V CAT IV, 300 V
Maximum voltage	600 V AC
Mechanical & General Specifications
Warranty	1 year
Maximum conductor diameter	54 mm
Output cable length	1.6 m
BNC Adapter	Yes

Clamp Meters/Current Clamp Adaptors / Current Clamps Template
Type (Current Clamp Adaptors	CT
Maximum Current AC	1000 A
Maximum Conductor Size	2.12 IN
Test Equipment General Attributes
Warranty	1 YEARS
Product Weight	1.21 LBS
Product Height	2.60 IN
Product Length	10.50 IN
Product Width	6.80 IN
Country of Origin	United States
Shipping Height	2.60 IN
Shipping Length	10.50 IN
Shipping Width	6.80 IN
