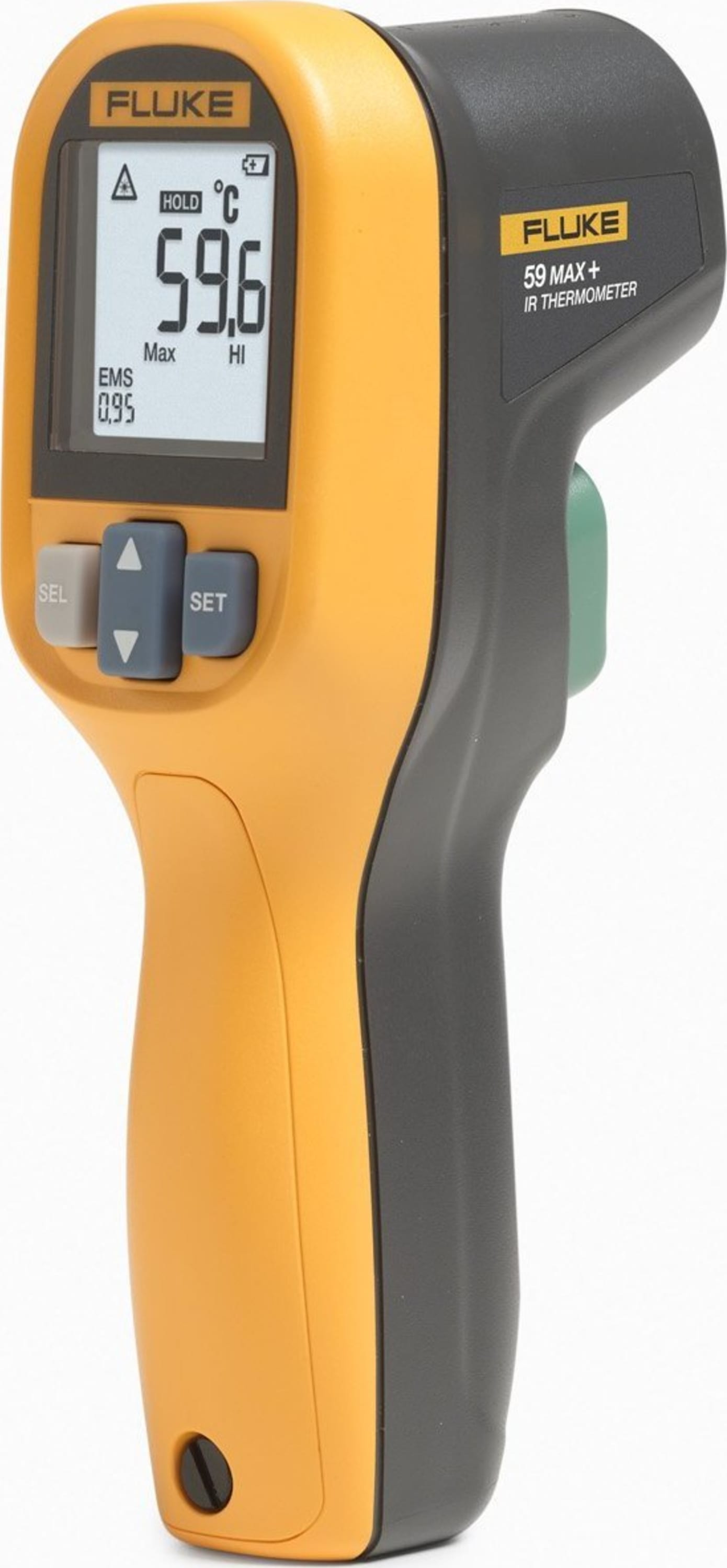

Fluke 59 MAX Infrared Thermometer

Name: Fluke 59 MAX Infrared Thermometer
Brand: Fluke
SKU: Fluke59 MAX
Price: 96.43 USD
Availability: InStock

0 reviews | Catalog: 4393777 | UPC: 095969690713 | Model: Fluke 59 MAX

Compare

Fluke 59 MAX NA Infrared Thermometer with LCD Display, -22-662 Degree F Range, 8:1 Ratio

8:1 distance to spot ratio
Precise laser technology for more accurate and repeatable measurements
Large, easy-to-read backlit LCD display for easy viewing
Small and lightweight design fits easily fits into your tool box
IP40 rated for extra protection against airborne contaminants
Displays the minimum, maximum or average temperature, or the difference between two measurements
Hi and Lo alarms for rapid display of measurements outside the limits
Powered by one (1) AA battery
One year warranty

View Product Details

List Price: $114.99

Your Price: $96.43

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series


Product	Fluke 59 MAX Fluke 59 MAX NA Infrared Thermometer with LCD Display, -22-662 Degree F Range ...	Fluke 59 MAX+ Fluke 59 MAX+ NA Infrared Thermometer with LCD Display, -22-932 Degree F Ran ...
Price
In Stock
IR Temperature Max	662 F	932 F
IR Temperature Min	-22 F	-22 F
Field View Ratio (Spot Ratio)	8:1	10:1
Compare	Add to compare	Add to compare

Recommended for you

With 65 years of expertise as the leader in the test tools industry, Fluke has built the 59 MAX Infrared Thermometer with the precision you need to do your job accurately and within your budget. Designed to withstand a 1 meter drop, you can count on this lightweight, compact infrared thermometer to work when you need it.

Model	59 MAX		59 MAX+
Temperature range	-30 °C to 350 °C (-22 °F to 662 °F)		-30 °C to 500 °C (-22 °F to 932 °F)
Accuracy (Calibration geometry with ambient temperature 23 °C ±2 °C)	≥ 0 °C:	± 2.0 °C or ± 2.0 % of reading, whichever is greater	≥ 0 °C:	± 1.5 °C or ± 1.5 % of reading, whichever is greater
	≥ -10 °C to <0 °C:	± 2.0 °C	≥-10 °C to <0 °C:	± 2.0 °C
	< -10 °C<0 °C:	± 3.0 °C	< -10 °C<0 °C:	± 3.0 °C
	≥ 32 °F:	± 4.0 °F or ± 2.0 % of reading, whichever is greater	≥ 32 °F:	± 3.0 °F or ± 1.5 % of reading, whichever is greater
	≥ 14 °F to <32 °F	± 4.0 °F	≥ 14 °F to <32 °F	± 4.0 °F
	≥14 °F:	± 6.0 °F	≥14 °F:	± 6.0 °F
Response rime (95 %)	≥500 ms (95 % of reading)		≥ 500 ms (95 % of reading)
Spectral response	8 μm to 14 μm
Emissivity	0.10 to 1.00
Distance to spot ratio	8:1 (calculated at 90 % energy)		10:1 (calculated at 90 % energy)
Display resolution	0.1 °C (0.2 °F)
Repeatability (% of reading)	±1.0 % of reading or ±1.0 °C (±2.0 °F), whichever is greater		±0.8 % of reading or ±1.0 °C (±2.0 °F), whichever is greater

General specifications
Power	1 AA IEC LR06 Battery
Batter life	12 hours with laser and backlight on
Weight	220 g (7.76 oz)
Size	(156 x 80 x 50) mm (6.14 x 3.15 x 2) inches
Operating temperature	0 °C to 50 °C (32 °F to 122 °F)
Storage temperature	-20 °C to +60 °C (-4 °F to 140 °F), (without battery)
Operating humidity	10 % to 90 % RH non-condensing @ 30 °C (86 °F)
Operating altitude	2000 meters above mean sea level
Storage altitude	12,000 meters above mean sea level
Drop test	1 m
Safety specifications
Ingress protection rating	IP40 per IEC 60529
Vibration and shock	IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms
Compliance	EN/IEC 61010-1
Laser safety	FDA and EN 60825-1 Class II
Electromagnetic compatibility	61326-1 EN 61326-2

Thermometers/IR Thermometers Template
IR Temperature Max	662 F
IR Temperature Min	-22 F
Field View Ratio (Spot Ratio)	8:1
Accuracy	≥0°C: ±2.0°C or ±2.0 % of reading, whichever is greater (≥32°F: ±4.0°F or ±2.0 % of reading, whichever is greater) ≥-10°C to <0°C: ±2.0°C (≥14°F to <32°F:±4.0°F) < -10°C: ±3.0°C (<14°F: ±6.0°F)
Laser Pointer	Yes
Backlight	Yes
Emissivity Adjustable	Yes
Alarm	Yes
Data Hold	Yes
Max./Min.	Yes
Memory Recall	No
Thermocouple Input	No
Food Safe	No
Test Equipment General Attributes
Unique Features	Precise laser technology for more accurate and repeatable measurements. Large, easy-to-read backlit LCD display for easy viewing. Small and lightweight design fits easily fits into your tool box. 8:1 distance to spot ratio. IP40 rated for extra protection. Displays the minimum, maximum or average temperature, or the difference between two measurements. Hi and Lo alarms for rapid display of measurements outside the limits. Powered by one (1) AA battery. One year warranty.
Warranty	1 YEARS
IP Rating	IP40
Product Weight	0.71 LBS
Product Height	2.17 IN
Product Length	10.43 IN
Product Width	6.89 IN
Data Logging	No
HTS/Schedule B Number	9025.19.8080
ECCN Number	3A992
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	Malaysia
UPC	095969690713
