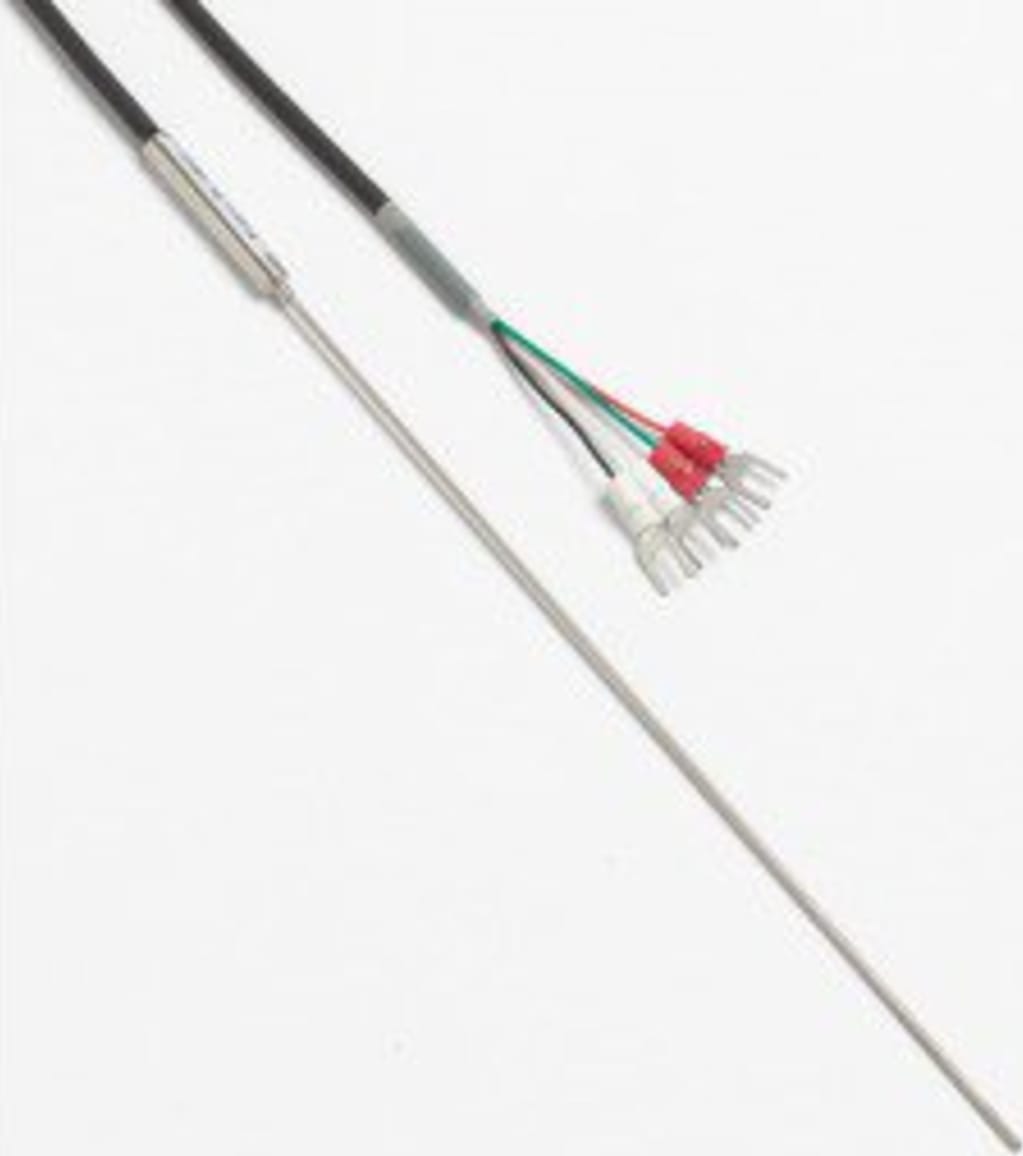

Fluke 5622-10-P Fast Response PRT Probe

Name: Fluke 5622-10-P Fast Response PRT Probe
Brand: Fluke
SKU: Fluke5622-10-P
Price: 630.30 USD
Availability: InStock

0 reviews | Catalog: 3377019 | UPC: 095969482370 | Model: Fluke 5622-10-P

Compare

PRT, FAST RESPONSE, 1.0 MM DIA, 100 OHM, P = INFO-CON for 1523 or 1524

5622-10-P (INFO-CON for 1523 or 1524)
Temperature Coefficients not included without additional Calibration
Immersion Depth 20 mm (0.8 in)
Sheath 100 x 1.0 mm (4 x 0.04 in)
Time constants as fast as 0.4 seconds
Available as DIN/IEC Class A PRTs or with NVLAP-accredited calibration, lab code 200348-0
Small probe diameters ranging from 0.5 mm to 3.2 mm

View Product Details

List Price: $741.00

Your Price: $630.30

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Fluke 5622-10-P PRT, FAST RESPONSE, 1.0 MM DIA, 100 OHM, P = INFO-CON for 1523 or 1524	Fluke 5622-10-B PROBE, FAST RESPONSE PRT, 1.0 MM DIA.	Fluke 5622-10-M PROBE, FAST RESPONSE PRT, 1.0 MM DIA.	Fluke 5622-10-D PROBE, FAST RESPONSE PRT, 1.0 MM DIA.	Fluke 5622-10-L PROBE, FAST RESPONSE PRT, 1.0 MM DIA.
Price
In Stock
Application/Properties	Gas/Air, General, Immersion, Piercing, Pipe, Surface	Gas/Air, General, Immersion, Piercing, Pipe, Surface	Gas/Air, General, Immersion, Piercing, Pipe, Surface	Gas/Air, General, Immersion, Piercing, Pipe, Surface	Gas/Air, General, Immersion, Piercing, Pipe, Surface
Max Temperature	350 C	350 C	350 C	350 C	350 C
Min Temperature	-200 C (-328 F)	-200 C (-328 F)	-200 C (-328 F)	-200 C (-328 F)	-200 C (-328 F)
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Fluke 5622-10-P Accessories

Choose a Category

Cases

for the Fluke 5622-10-P

Fluke 2601 CASE, PROBE CARRYING

Catalog: 1650896

(0)

In Stock!

Add to Cart

5622-10-P Fast Response Platinum Resistance Thermometers (PRTs), 1.0 mm (0.04 in)
Designed for temperature measurements requiring fast response or short immersion over a wide range The Fluke Calibration series of fast response PRTs includes four models with stainless steel sheaths ranging from 0.5 to 3.2 mm (0.02 to 0.125 in) in diameter. Because these high-quality wire-wound sensors come in small packages, heat transfer to the sensors occurs quickly. Time constants from 0 °C to 100 °C are as fast as 0.4 seconds
Immersion requirements for these probes is also a plus, ranging from just 10 mm to 64 mm (0.4 to 2.5 inch), depending on the model. Getting into shallow or tight places is not a problem. And because these probes can handle temperatures from –200 °C to 350 °C, they’re more versatile than most thermistors
5622 PRTs come with two calibration options. Uncalibrated, each of these probes conforms to DIN/IEC Class A requirements with accuracy of ±0.15 °C at 0 °C and ±0.55 °C at 200 °C and –200 °C. Alternatively, any Model 5622 PRT may be purchased with a Model 1923-4-N ITS-90 Comparison Calibration, which includes seven points from –197 °C to 300 °C. With calibration, short-term accuracies are achieved as good as ±0.04 °C at 0 °C.
Readout options for the Model 5622 PRTs include Fluke Calibration's 1523/1524 Handheld Thermometers or the 1529 Benchtop Thermometer. Each of these readouts will read your PRT as a standard DIN/IEC probe or as an individually calibrated PRT
For special temperature measurement applications requiring fast response or short immersion over a wide temperature range, Fluke Calibration's 5622 series PRTs are the perfect solution.

Specifications
Temperature Range	–200 °C to 350 °C
Nominal _RTPW	100 W
Temperature Coefficient	0.00385 W /W/°C nominal
Calibrated Probe Accuracy (includes calibration uncertainty and short-term stability)	5622-05 and 5622-10:	± 0.04 °C at –200 °C ± 0.04 °C at 0 °C ± 0.09 °C at 200 °C ±± 0.09 °C at 300 °C
	5622-16 and 5622-32:	± 0.04 °C at –200 °C ± 0.04 °C at 0 °C ± 0.045 °C at 200 °C ±± 0.055 °C at 300 °C
Uncalibrated DIN/IEC Conformity	DIN/IEC Class A; ± 0.15 °C at 0 °C
Time Constant (63.2 %)	From 0 °C to 100 °C: 5622-05: 0.4 seconds 5622-10: 1.5 seconds 5622-16: 3.0 seconds 5622-32: 10 seconds (90 %)
Immersion Depth	5622-05: 10 mm (0.4 in) 5622-10: 20 mm (0.8 in) 5622-16: 32 mm (1.25 in) 5622-32: 64 mm (2.5 in)
Thermal EMF	20 mV at 350 °C
Sheath	5622-05: 100 x 0.5 mm (4 x 0.02 in) 5622-10: 100 x 1.0 mm (4 x 0.04 in) 5622-16: 200 x 1.6 mm (8 x 0.06 in) 5622-32: 200 x 3.2 mm (8 x 0.13 in)
Cable	PVC, 4-wire cable, 2 meters long, 90 °C max temp

Fluke Calibration Platinum Resistance Thermometers (PRTs)
Model	Range	Size	Basic Accuracy^†
Platinum Resistance Thermometer: Secondary Standard PRT
5608-9-X	–200 to 500 °C	9 in x 1/8 in	Select from available calibration options
5608-12-X	–200 to 500 °C	12 in x 1/8 in
5609-12-X	–200 to 670 °C	12 in x 1/4 in
5609-15-X	–200 to 670 °C	15 in x 1/4 in
5609-20-X	–200 to 670 °C	20 in x 1/4 in
5609-300-X	–200 to 670 °C	300 mm x 6 mm
5609-400-X	–200 to 670 °C	400 mm x 6 mm
5609-500-X	–200 to 670 °C	500 mm x 6 mm
5626	–200 °C to 661 °C	305 or 381 x 6.35 mm (12 or 15 x 0.25 in	±0.007 °C at 0 °C
Platinum Resistance Thermometer: Secondary Reference PRT
5616-12	–200 °C to 420 °C	6.35 mm x 298 mm (0.250 x 11.75 in)	± 0.010 °C at 0.010 °C
5615-6	–200 to 300 °C	4.76 mm x 152 mm (0.188 x 6.0 in)	± 0.013 °C at 0.010 °C
5615-9	–200 °C to 420 °C	4.76 mm x 229 mm (0.188 x 9.0 in)	± 0.013 °C at 0.010 °C
>5615-12	–200 °C to 420 °C	6.35 mm x 305 mm (0.250 x 12.0 in)	± 0.013 °C at 0.010 °C
Platinum Resistance Thermometer: Precision Industrial PRT
5627A-6	–200 °C to 300 °C	152 x 4.7 mm (6 x 0.187 in)	±0.05 °C at 0 °C
5627A-9	–200 °C to 300 °C	229 x 4.7 mm (9 x 0.187 in)	±0.05 °C at 0 °C
5627A-12	–200 °C to 420 °C	305 x 6.35 mm (12 x 0.25 in)	±0.05 °C at 0 °C
Platinum Resistance Thermometer: Fast Response PRT
>5622-05	–200 °C to 350 °C	100 x 0.5 mm	±0.04 °C at 0 °C
>5622-10	–200 °C to 350 °C	100 x 1.0 mm	±0.04 °C at 0 °C
>5622-16	–200 °C to 350 °C	200 x 1.6 mm	±0.04 °C at 0 °C
>5622-32	–200 °C to 350 °C	200 x 3.2 mm	±0.04 °C at 0 °C
Platinum Resistance Thermometer: Small Diameter Industrial PRTs
5618B-6	–200 °C to 300 °C	152 x 3.2 mm (6 x 0.125 in)	±0.05 °C
5618B-9	–200 °C to 500 °C	229 x 3.2 mm (9 x 0.125 in)	±0.05 °C
5618B-12	–200 °C to 500 °C	305 x 3.2 mm (12 x 0.125 in)	±0.05 °C
Platinum Resistance Thermometer: Full Immersion PRTs
5606 Immersion PRT	–200 to 160 °C	50 x 3.1 mm ( 2 x 1/8 in)	±0.05 °C
5607 Immersion PRT	0 to 450 °C	75 x 3.1 mm (3 x 1/8 in)	±0.055 °C
5623B Freezer Probe	–100 °C to 156 °C	152 x 6.35 mm (6 x 0.25 in)	±0.05 °C
Thermistors
Thermistor: Standards
5640	0 °C to 60 °C	229 x 6.35 mm (9 x 0.25 in)	±0.0015 °C
5641	0 °C to 60 °C	114 x 3.2 mm (4.5 x 0.125 in)	±0.001 °C
5642	0 °C to 60 °C	229 x 3.2 mm (9 x 0.125 in)	±0.001 °C
5643	0 °C to 100 °C	114 x 3.2 mm (4.5 x 0.125 in)	±0.0025 °C
5644	0 °C to 100 °C	229 x 3.2 mm (9 x 0.125 in)	±0.0025 °C
Thermistor: Secondary Probes
5610	0 °C to 100 °C	152 or 229 x 3.2 mm (6 or 9 x 0.125 in)	±0.01 °C
5611A	0 °C to 100 °C	1.5 mm (0.06 in) tip dia.	±0.01 °C
5611T	0 °C to 100 °C	28 x 3 mm (1.1 x 0.12 in)	±0.01 °C
^†“Basic Accuracy” includes calibration uncertainty and short-term repeatability. It does not include long-term drift. X = termination. Specify A (INFO-CON for 914X), B (bare wire), D (5-pin DIN for Tweener Thermometers), G (gold pins), I (INFO-CON for 1521 or 1522), J (banana plugs), L (mini spade lugs), M (mini banana plugs), P (INFO-CON for 1523 or 1524), or S (spade lugs).

Tech Specs

Accessories/Probes/Temperature Probes Template
Application/Properties	Gas/Air, General, Immersion, Piercing, Pipe, Surface
Max Temperature	350 C
Min Temperature	-200 C (-328 F)
Wire Termination	Other
Insulation Material	Stainless Steel
Probe Length	4 IN
Lead Length	79 IN (25.40 MM)
Test Equipment General Attributes
Unique Features	Temperature Range –200 °C to 350 °C Nominal RTPW 100 W Temperature Coefficient 0.00385 W /W/°C nominal Calibrated Probe Accuracy (includes calibration uncertainty and short-term stability) 5622-05 and 5622-10: ± 0.04 °C at –200 °C ± 0.04 °C at 0 °C ± 0.09 °C at 200 °C ± 0.09 °C at 300 °C 5622-16 and 5622-32: ± 0.04 °C at –200 °C ± 0.04 °C at 0 °C ± 0.045 °C at 200 °C ± 0.055 °C at 300 °C Uncalibrated DIN/IEC Conformity DIN/IEC Class A; ± 0.15 °C at 0 °C Time Constant (63.2 %) From 0 °C to 100 °C: 5622-05: 0.4 seconds 5622-10: 1.5 seconds 5622-16: 3.0 seconds 5622-32: 10 seconds (90 %)
Warranty	1 YEARS
Additional Info/Comments	Immersion Depth 5622-05: 10 mm (0.4 in) 5622-10: 20 mm (0.8 in) 5622-16: 32 mm (1.25 in) 5622-32: 64 mm (2.5 in) Thermal EMF 20 mV at 350 °C Sheath 316 SST 5622-05: 100 x 0.5 mm (4 x 0.02 in) 5622-10: 100 x 1.0 mm (4 x 0.04 in) 5622-16: 200 x 1.6 mm (8 x 0.06 in) 5622-32: 200 x 3.2 mm (8 x 0.13 in) Cable PVC, 4-wire cable, 2 meters long, 90 °C max temp
Interfaces I/O	Other
Product Weight	7.94 LBS
Product Height	7.99 IN
Product Length	24.02 IN
Product Width	12.01 IN
Shipping Weight	8.73 LBS
Data Logging	No
ECCN Number	3A992
Calibration Included	NIST Calibration
Country of Origin	Japan
Shipping Height	3.15 IN
UPC	095969482370
Shipping Length	20.87 IN
Shipping Width	11.02 IN
