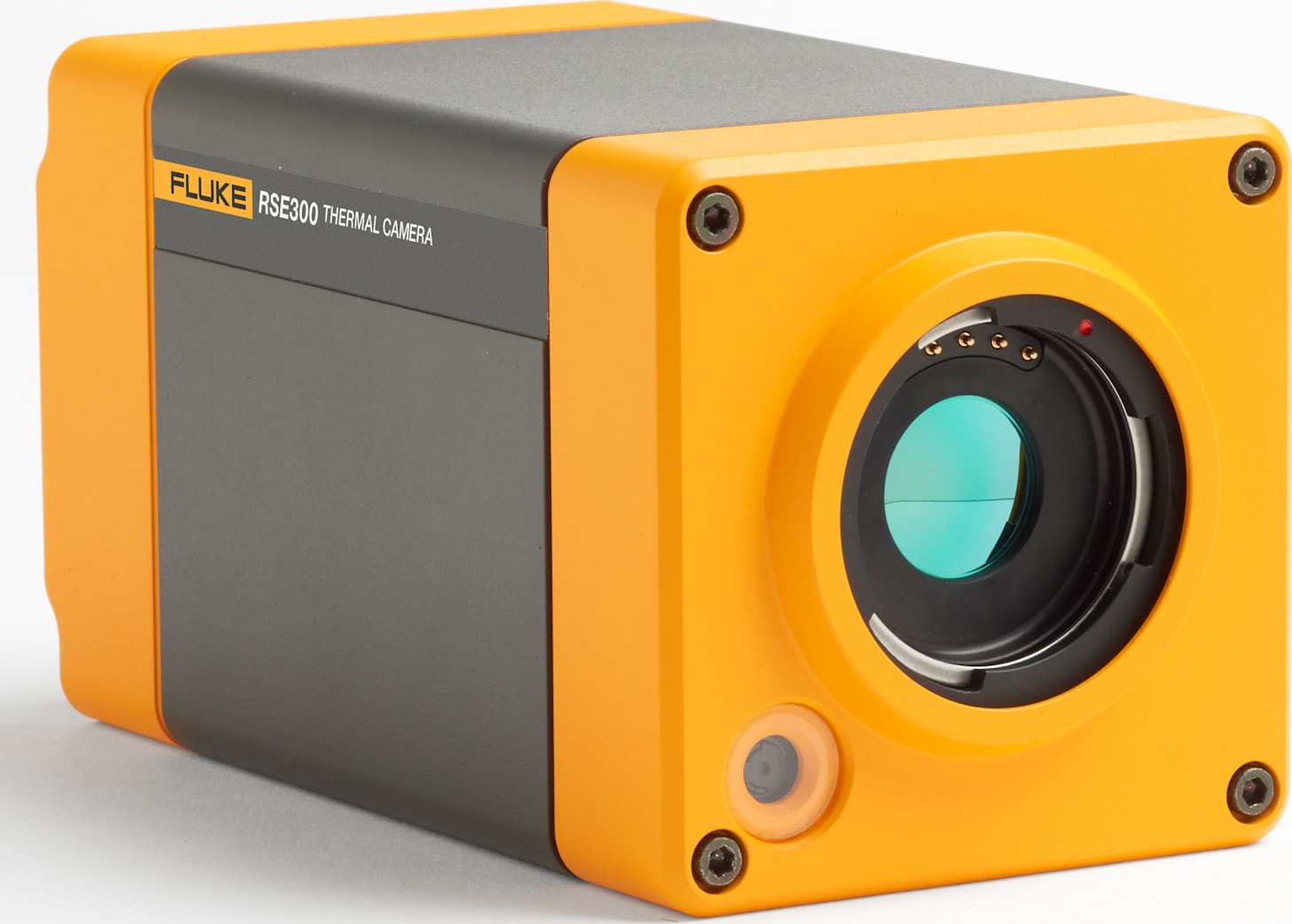

| Fluke RSE300/C 60HZ Specifications |
| Infrared resolution |
320 x 240 (76,800 pixels) |
| IFOV with standard lens (spatial resolution) |
1.85 mRad |
| Field of view |
34 °H x 24 °V |
| Minimum focus distance |
15 cm (approx. 6 in) |
| Camera focus options |
Focus is adjusted in SmartView R&D™ desktop software |
| IR-Fusion technology |
Yes, in SmartView R&D™ desktop software.
Five modes of image blending (AutoBlend™ mode, Picture-in-Picture (PIP), IR/Visible alarm, Full IR, Full visible light) add the context of the visible details to your infrared image |
| Interfaces for image/data transfer |
Supported in camera data ports: GigE Vision |
| Thermal sensitivity (NETD) |
≤ 0.030 °C at 30 °C target temp (30 mK)* |
| Level and span |
Smooth auto and manual scaling, in SmartView desktop software |
| Fast auto toggle between manual and auto modes |
Yes, in SmartView R&D™ desktop software |
| Fast auto-rescale in manual mode |
Yes, in SmartView R&D™ desktop software |
| Minimum span (in manual mode) |
0.1 °C (0.18 °F), in SmartView R&D™ desktop software |
| Minimum span (in auto mode) |
<1.0 °C (<1.8 °F), in SmartView R&D™ desktop software |
| Built-in digital camera (visible light) |
5 megapixel industrial performance |
| Frame rate |
60 Hz |
| Digital zoom |
Variable up to 16x in SmartView R&D™ desktop software |
| Temperature measurement |
| Temperature measurement range (not calibrated below -10 °C) |
-10 °C to +1200 °C (14 °F to +2192 °F) |
| Accuracy |
± 2 °C or ± 2 %, whichever is greater |
| Autocapture |
Yes, in SmartView R&D™ desktop software |
| Reflected background temperature compensation |
Yes, in SmartView R&D™ desktop software |
| Transmission correction |
Yes, in SmartView R&D™ desktop software |
| Color palettes |
| Standard palettes |
11: Rainbow, Iron, Gray, RContrast, Rain900, Rain, Fire, Yellow, GrayRed, MidGray, Y-Glow |
| Ultra Contrast™ palettes |
3: Histogram equalization, Auto Plateau equalization, Plateau equalization |
| Analysis tools |
| Custom markers |
Spot, line, box, circle |
| Color alarms (temperature alarms) |
Yes, in SmartView R&D™ desktop software-high temperature, low temperature, and isotherms (within range) |
| Image analysis tools |
Ruler, measure line, measure angle, note, pins |
| Real-time trend |
Point trend, area trend, mix trend, profile trend, boxline trend |
| Customizable reports |
Display the information you need based on your application |
| Center-point temperature measurement |
Yes, in SmartView R&D™ desktop software |
| Spot temperature |
Yes, in SmartView R&D™ desktop software-hot and cold spot markers |
| User-definiable spot markers |
Unlimited user-definable spot markers, in SmartView R&D™ desktop software |
| Center box |
Expandable-contractible measurement box with MIN-MAX-AVG temp display, in desktop software |
