LOG AND TREND MEASUREMENTS
Transmit results wirelessly via Fluke Connect ® Measurements app.
WORK SAFELY
Capture measurements outside the arc flash zone with Bluetooth connectivity to your Apple or Android devices.
LO-PASS FILTER
Integrated VFD low-pass filter (Fluke 376 FC and 375 FC) for accurate motor drive measurements.
TRUE-RMS
True-rms voltage and current for accurate measurements on non-linear signals.
WARRANTY
Three-year.

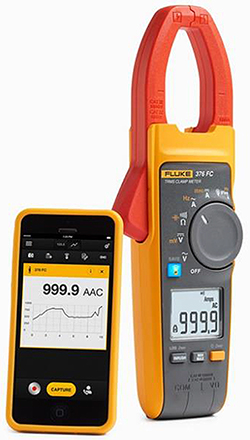

The Fluke 376 FC Wireless True-rms AC/DC Clamp Meter offers measurements up to 1000 V and 1000 A, ac or dc, plus an included iFlex™ Flexible Current Clamp.
For years, Fluke has built a reputation for producing the most reliable, rugged, and innovative clamp meters in the world. The new Fluke 370 Series FC is no exception; they are precise, tough, and easy to use. These clamp meters are best-in-class, and make a perfect addition to the Fluke family of clamps.
Developed for commercial and industrial applications, the 376 FC, 375 FC and 374 FC Clamp Meters combine functionality with form factor to create a powerful troubleshooting clamp. The new Fluke 370 Series FC are the only clamp meters in the market to offer a flexible current probe, logging, and safe remote measurements, all in one unit.
Fluke 370 FC Series True-rms Clamp Meters
The new Fluke 370 FC Series (376 FC, 375 FC and 374 FC) offers advanced troubleshooting performance. The iFlex ® flexible current probe allows easy connections to wires in tight spaces. In addition, all three clamps are now part of the Fluke Connect® family of wireless test tools. Now you can:
- Log and trend measurements to pinpoint intermittent faults

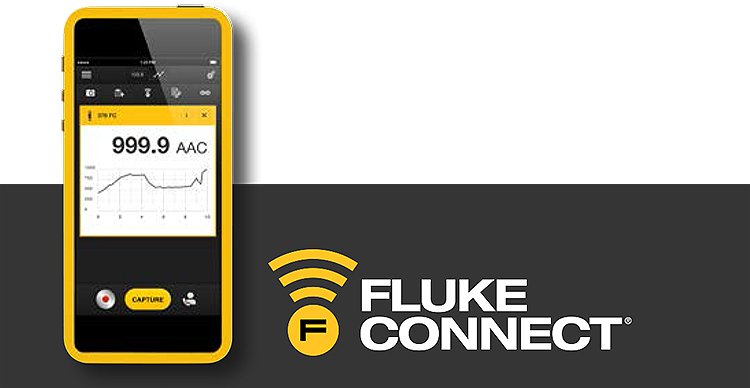

- Transmit results wirelessly via Fluke Connect ® Measurements app
- Create and send reports right from the field

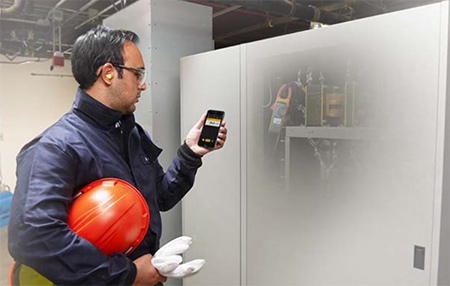

- Capture measurements outside the arc flash zone with Bluetooth connectivity to your Apple or Android devices
Product highlights
- Connect your meter to your smartphone using Fluke Connect Measurements app to increase the troubleshooting power of your clamp
- Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
- Record results directly to your phone and the Fluke Cloud™
- Capture intermittent faults while performing other tasks using the logging capabilities of the Fluke 376 FC and 375 FC
- Create and share reports from the field via email, or converse in real time with ShareLive™ video calls
- iFlex flexible current probe expands the measurement range to 2500 A ac; provides access to large conductors in tight spaces (included with 376 FC; compatible with 375 FC and 374 FC)
- TPAK magnetic hanging strap (included with 376 FC; compatible with 375 FC and 374 FC) allows you to conveniently hang the meter while using the probes
- Integrated VFD low pass filter (Fluke 376 FC and 375 FC) for accurate motor drive measurements
- Proprietary in-rush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
- CAT IV 600 V, CAT III 1000 V safety rating
- Three-year warranty
![Fluke370_series_img3_tn]()
All trademarks are the property of their respective owners
Measurement Capability
- 1000 A ac and dc current measurement (376 FC); 600 A ac and dc (375 FC and 364 FC)
- 2500 A ac current measurement with iFlex ® flexible current probe
- 1000 V ac and dc voltage measurement
- True-rms voltage and current for accurate measurements on non-linear signals
- Frequency measurement to 500 Hz with body jaw and iFlex (376 FC and 375 FC)
- Resistance measurement to 60 kΩ (376 FC and 375 FC) or 6000 Ω (374 FC), with continuity detection
- Min, max, average and in-rush recording to capture variations automatically
- 500 mV dc measurement range to interface with other accessories (376 FC and 375 FC)
- 1000 μF capacitance measurement
The Fluke 370 FC Series (376 FC, 375 FC and 374 FC) offers advanced troubleshooting performance. The iFlex ® flexible current probe allows easy con- nections to wires in tight spaces. In addition, all three clamps are now part of the Fluke Connect ® family of wireless test tools.
With a 370 FC Series Clamp Meter and the Fluke Connect ® Measurements app, now you can:
- Log and trend measurements to pinpoint intermittent faults
- Transmit results wirelessly via Fluke Connect Measurements app
- Create and send reports right from the field
- Capture measurements outside the arc flash zone with Bluetooth connectivity to your Apple or Android devices
More things you can do with a 370 FC Series Clamp Meter:
- Utilize the TPAK magnetic hanging strap (included with 376 FC; compatible with 375 FC and 374 FC) to hang the meter while using the probes
- Integrated VFD low pass filter (Fluke 376 FC and 375 FC) for accurate motor drive measurements
- Proprietary in-rush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
- CAT IV 600 V, CAT III 1000 V safety rating
- Three-year warranty
- Includes test leads and soft carrying case
Set up and sustain preventive maintenance practices with ease to help you oversee your complex world with the Fluke Connect ® system of software and wireless test tools.
- Maximize uptime and make confident maintenance decisions with data you can trust and trace.
- Save measurements to the Fluke Cloud™ and associate with an asset so your team can consult both historical and current measurements from one location.
- Collaborate with ease by sharing your data with others with ShareLive™ video calls and emails.
- Wireless one-step measurement transfer with AutoRecord™ measurements removes the need for clipboards and paperwork.
- Generate reports with multiple measurement types to provide status or work recommendations.
