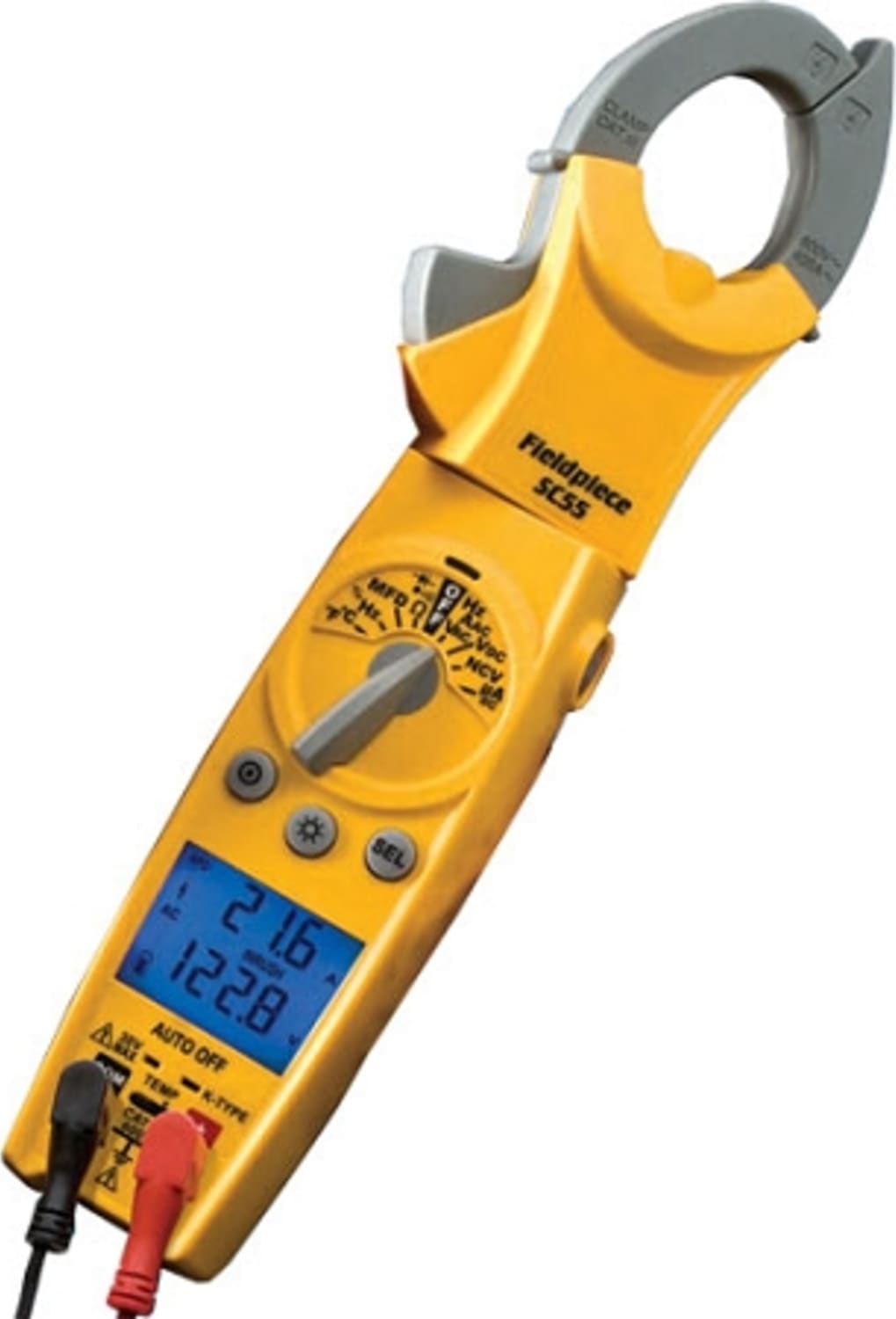

Fieldpiece SC55 Dual Display Swivel-Head Clamp Meter

Name: Fieldpiece SC55 Dual Display Swivel-Head Clamp Meter
Brand: Fieldpiece
SKU: FieldpieceSC55
Price: 135.20 USD
Availability: InStock

0 reviews | UPC: 872641002381 | Model: Fieldpiece SC55

Compare

Swivel Clamp Meter

180° Swivel Head Clamp to easily view results at any angle
Dual Display to easily view multiple measurements at one time
Rugged Construction to withstand harsh conditions
Auto Power Off to preserve battery life when clamp isn't in use
Non-Contact Voltage warning via audio and visual alarms
Easy Field Calibration with convenient pot location to quickly calibrate K-type thermocouples
Auto or Manual Ranging button to conveniently toggle between ranges
Hold Function to keep data as long as necessary
Select Button to swiftly toggle through measurement options
Frequency Measurement without test leads
Constant Battery Status so you don't run out of batteries in the middle of a job

View Product Details

List Price: $169.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Fieldpiece SC55

Fieldpiece STA2 Induct CFM

Catalog: STA2

(4)

In Stock!

Add to Cart

Fieldpiece ANC1 Deluxe Meter Case, 4 pockets, 1 meter + 2 heads

Catalog: ANC1

(1)

In Stock!

Add to Cart

Fieldpiece ANC7 Large Single Meter Case

Catalog: ANC7

(1)

In Stock!

Add to Cart

Fieldpiece ANC9 Refrigerant Scale Case

Catalog: ANC9

(0)

In Stock!

Add to Cart

Fieldpiece SOX3 CombChk w/Auto Pump

Catalog: SOX3

(8)

In Stock!

Add to Cart

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

The SC55 Swivel-Head Clamp Meter is specifically designed for HVACR professionals and contains all the functions most relevant to the job. Packed with 13 different test parameters the SC55 clamp meter offers more features and functions than any other meter of its kind on the market. Plus the full 180º swivel head allows you to easily see the display at any angle.

Perfect for those hard to reach wires, the SC55 Swivel-Head Clamp Meter also boasts a rugged design to withstand harsh conditions, has the precision and reliability that Fieldpiece is known for, and is compatible with all Fieldpiece Accessory Heads via your test leads.

Display	5000 count dual display
Overrange	(OL) or (-OL) is displayed
Measurement rate	3.3 times per second, nominal
Zero	Automatic
Operating environment	32°F (0°C) to 122°F (50°C) at <70% R.H.
Storage environment	-4°F (-20°C) to 140°F (60°C), 0 to 80% R.H. with battery removed
Accuracy	Stated accuracy @ 73°F ±9°F (23°C ±5°C) at <75% R.H.
Temperature Coefficient	0.1 × (specified accuracy) per °C [0°C to 19°C (32°F to 66°F), 28°C to 50°C (82°F to 122°F)]
APO (Auto Power Off)	Approximately 30 minutes
Power	Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22
Battery life	200 hours typical alkaline
Low Battery Indication	Battery icon blinks and "L.O.bt" is diplayed when battery voltage drops below operating level
Dimensions	10.2" x 2.8" x 1.68" (258.3 x 71.2 x 42.7mm)
Weight	Approximately .612lb (278g) including battery.
Overload Protection	600VDC or 600VAC rms unless otherwise stated

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	No
Maximum Current AC	400 A
Maximum Current DC	500 uA (0.0005 A)
Maximum Voltage AC	600 V
Maximum Voltage DC	600 V
Resistance	Yes
Capacitance	Yes
Auto Ranging/Manual	Both
Test Equipment General Attributes
Warranty	1 YEARS
Safety Approval	RoHS
Product Weight	278 GRAMS (0.613 LBS)
Product Height	258 MM (10.16 IN)
Product Length	43 MM (1.69 IN)
Product Width	71 MM (2.80 IN)
Data Logging	No
